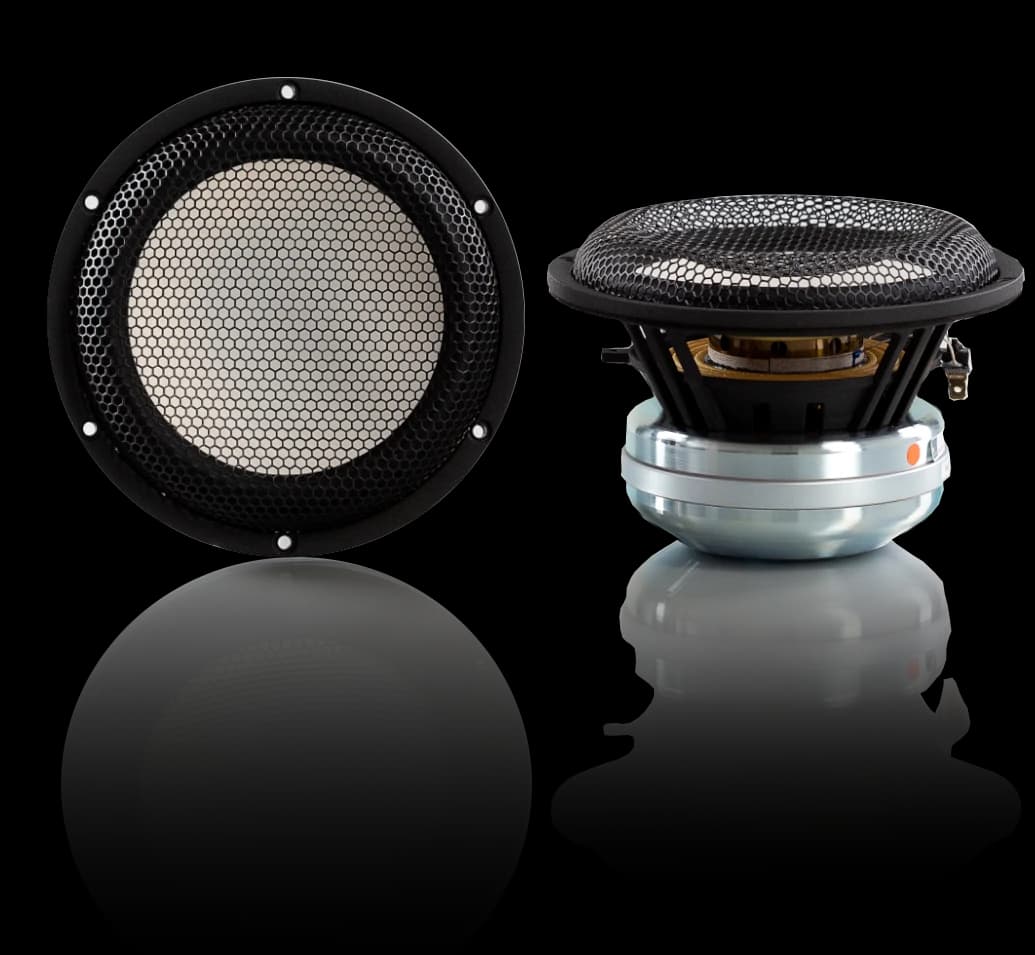

Accuton C173-6-096 6Ω
6 Ω · 40–3000 Hz
£899.94
2.5%Falcon Acoustics · In stock · All 5 offers
- Fs
- 50Hz
- Xmax
- 5mm
- SPL
- 92dB
- Pe
- 120W
- BL
- 11.4T·m
- Vd
- 65cm³
- Qts
- 0.22
- Vas
- 17L

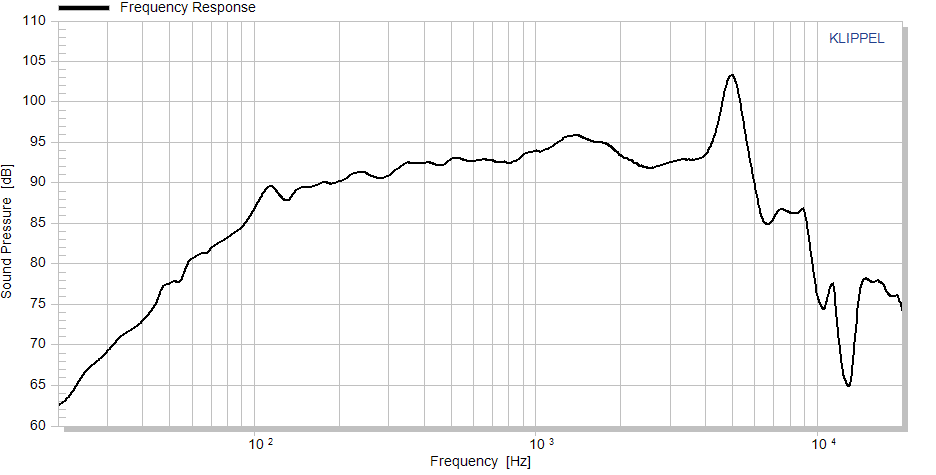

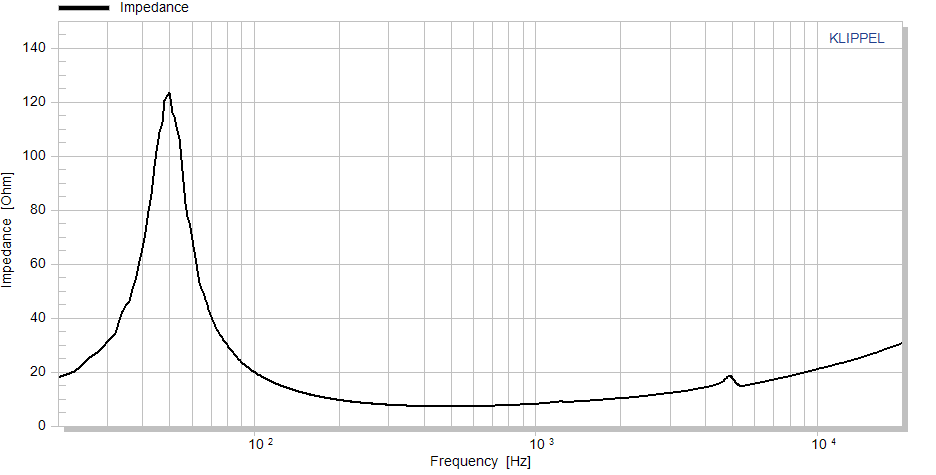

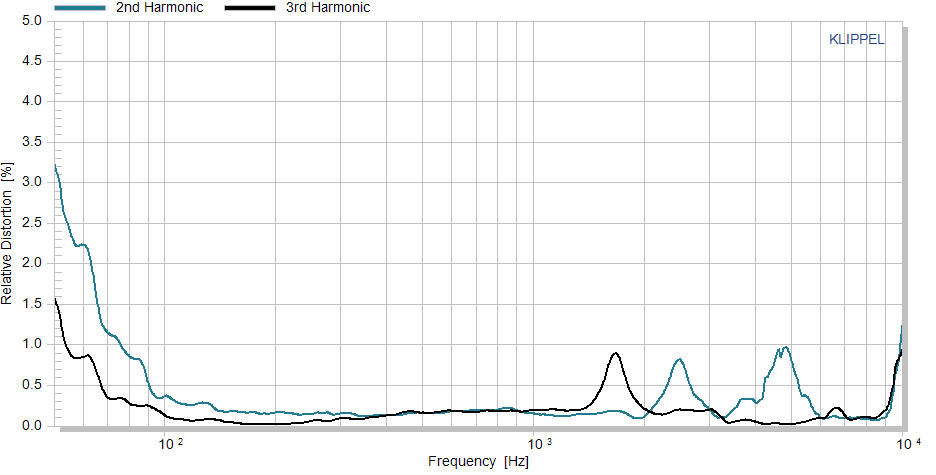

Published graphs
Accuton C173-6-096 is a 7-inch 6 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.22, Vas 17.0 L, Xmax 5 mm, sensitivity 91.5 dB, plus 65 cm³ Vd and 208 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £837.27.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.22
- Qes
- 0.24
- Qms
- 4.7
- Vas
- 17.0L
- Re
- 6.8Ω
- Le
- 0.32mH
Motor and cone
- BL
- 11.4T·m
- Sd
- 130cm²
- Mms
- 14g
- Xmax
- 5mm
- Vd †
- 65cm³
- Voice coil
- 55mm
Power and response
- Sensitivity †
- 91.5dB
- Manufacturer sensitivity
- 93dB
- Power
- 120W
- Impedance
- 6Ω
- Range
- 40–3000Hz
- EBP †
- 208 · Leans vented

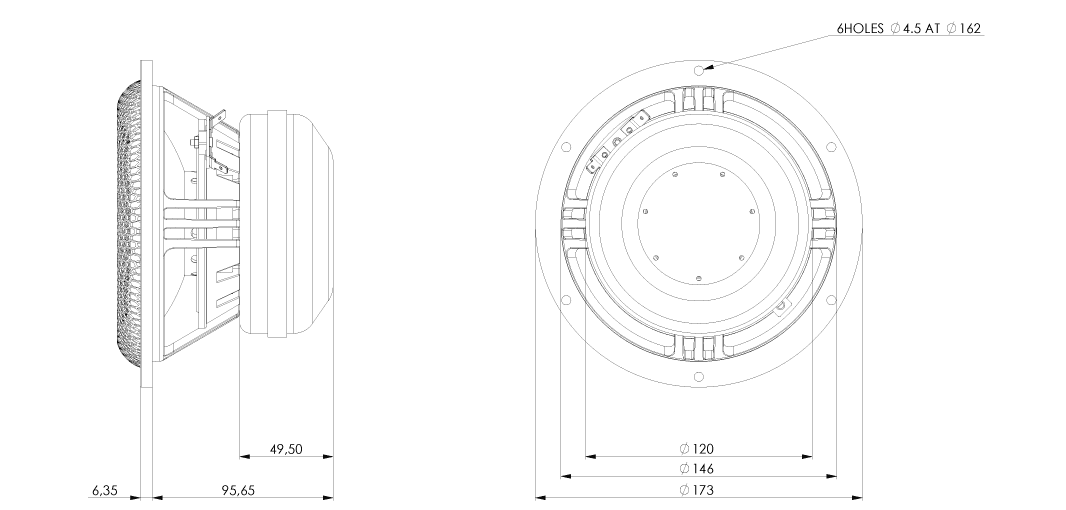

Size and mounting
- Diameter
- 173mm
- Cutout
- 146mm
- Depth
- 102mm
Other published values
- Cms
- 0.70mm/N
- Rms
- 0.96kg/s
Other dimensions
- Mounting Depth
- 49.5
Sensitivity shows 91.5 dB, calculated from the T/S values. Accuton publishes 93.0 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Accuton lists
LF · Primary · 7″
- BL
- 11.4T·m
- Fs
- 50Hz
- Le
- 0.32mH
- Re
- 6.8Ω
- Sd
- 130cm²
- Cms
- 0.70mm/N
- Mms
- 14g
- Qes
- 0.24
- Qms
- 4.7
- Qts
- 0.22
- Rms
- 0.96kg/s
- SPL
- 91.5dB
- Vas
- 17.0L
- Xmax
- 5mm
- Power
- 120W
- Impedance
- 6Ω
- Sensitivity
- 93dB
- Low limit
- 40Hz
- Calculated sensitivity †
- 91.5dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 93dB
- Voice coil
- 55mm
- Diameter
- 173mm
- Depth
- 102mm
- Mounting Depth
- 49.5
- Cutout
- 146mm
02
Compare
Same-size drivers, compared with the C173-6-096. Clear differences are green when better and red when worse.
This driverC173-6-096
Best price
£837.27
Fs
50 Hz
Qts
0.22
Vas
17.0 L
BL
11.4 T·m
Xmax
5 mm
Sensitivity
91.5 dB
Power
120 W
Scanspeak15W/4434G00
£58.57 · 93% less, betterFs43 Hz −14%, better
Qts0.21 −5%
Vas12.8 L −25%, better
BL5.9 T·m −48%, worse
Xmax4.3 mm −14%, worse
Sensitivity88.7 dB −2.8, worse
CelestionTRUVOX 0820
£59.70 · 93% less, betterFs74 Hz +48%, worse
Qts0.39 +77%, worse
Vas17.3 L –
BL11.5 T·m –
Xmax5 mm –
Sensitivity94.3 dB +2.8, better
SB AcousticsSB17NRX2L35-4
£59.85 · 93% less, betterFs41 Hz −18%, better
Qts0.25 +14%, worse
Vas21.9 L +29%, worse
BL6.5 T·m −43%, worse
Xmax4.8 mm −4%
Sensitivity89.7 dB −1.8
Sica8 S 2.5 CP
£80.30 · 90% less, betterFs54 Hz +8%
Qts0.33 +50%, worse
Vas18.6 L +9%
BL11.9 T·m +4%
Xmax5 mm –
Sensitivity91 dB −0.5
LavoceWAN061.80
£83.14 · 90% less, betterFs60 Hz +20%, worse
Qts0.27 +23%, worse
Vas11.2 L −34%, better
BL10.9 T·m −5%
Xmax5.2 mm +4%
Sensitivity91.2 dB –
Beyma6P200FE
£88.70 · 89% less, betterFs58 Hz +16%, worse
Qts0.26 +18%, worse
Vas11.1 L −35%, better
BL10.5 T·m −8%
Xmax5 mm –
Sensitivity91.1 dB –
PeerlessNSM-0620R01-04
£100.99 · 88% less, betterFs88 Hz +76%, worse
Qts0.22 –
Vas4.2 L −75%, better
BL11.5 T·m –
Xmax6.8 mm +36%, better
Sensitivity92.9 dB +1.4
Eighteen Sound6ND430
£109.14 · 87% less, betterFs64 Hz +28%, worse
Qts0.24 +9%
Vas12.2 L −28%, better
BL7.8 T·m −32%, worse
Xmax5 mm –
Sensitivity93.1 dB +1.6
B&C8NDL64
£124.99 · 85% less, betterFs73 Hz +46%, worse
Qts0.24 +9%
Vas11.8 L −31%, better
BL24 T·m +111%, better
Xmax4.5 mm −10%, worse
Sensitivity94.7 dB +3.2, better
FaitalPRO8PR150
£133.93 · 84% less, betterFs75 Hz +50%, worse
Qts0.48 +118%, worse
Vas16.2 L −5%
BL10.4 T·m −9%
Xmax5 mm –
Sensitivity93.1 dB +1.6
Eighteen Sound8NTLW2000
£137.32 · 84% less, betterFs71 Hz +42%, worse
Qts0.21 −5%
Vas13 L −23%, better
BL17.5 T·m +54%, better
Xmax4.4 mm −12%, worse
Sensitivity95.5 dB +4, better
Eighteen Sound8NW650
£138.53 · 83% less, betterFs63 Hz +26%, worse
Qts0.25 +14%, worse
Vas17.8 L +5%
BL15.2 T·m +33%, better
Xmax5.5 mm +10%, better
Sensitivity94.2 dB +2.7, better
LavoceCSF082.00K
£141.38 · 83% less, betterFs81 Hz +62%, worse
Qts0.40 +82%, worse
Vas14.8 L −13%, better
BL11.0 T·m −4%
Xmax5 mm –
Sensitivity94.5 dB +3, better
RCFMB8N251
£149.04 · 82% less, betterFs68 Hz +36%, worse
Qts0.25 +14%, worse
Vas13 L −23%, better
BL15.2 T·m +33%, better
Xmax5 mm –
Sensitivity94 dB +2.5, better
Sica8 K 3 PL
£158.25 · 81% less, betterFs68 Hz +36%, worse
Qts0.25 +14%, worse
Vas12.2 L −28%, better
BL16.1 T·m +41%, better
Xmax5 mm –
Sensitivity93.6 dB +2.1, better
B&C8NW51
£159.93 · 81% less, betterFs76 Hz +52%, worse
Qts0.25 +14%, worse
Vas10.6 L −38%, better
BL11.2 T·m –
Xmax6 mm +20%, better
Sensitivity94.6 dB +3.1, better
Beyma8MC500ND
£159.93 · 81% less, betterFs69 Hz +38%, worse
Qts0.18 −18%, better
Vas15.9 L −6%
BL16.7 T·m +46%, better
Xmax5 mm –
Sensitivity96.4 dB +4.9, better
Beyma8MC300ND
£175.84 · 79% less, betterFs62 Hz +24%, worse
Qts0.22 –
Vas18 L +6%
BL16 T·m +40%, better
Xmax6 mm +20%, better
Sensitivity94.6 dB +3.1, better
PRV Audio8MB700FT-NDY-4
£178.31 · 79% less, betterFs60 Hz +19%, worse
Qts0.22 –
Vas25.0 L +47%, worse
BL11.3 T·m –
Xmax3.8 mm −25%, worse
Sensitivity95.5 dB +4, better
WavecorWF211PA02
£185.52 · 78% less, betterFs59 Hz +18%, worse
Qts0.25 +14%, worse
Vas18.2 L +7%
BL13.4 T·m +18%, better
Xmax2 mm −60%, worse
Sensitivity93.6 dB +2.1, better
AccutonS220-6-222
£912.00 · 9% more, worseFs25 Hz −50%, better
Qts0.26 +18%, worse
Vas89.7 L +428%, worse
BL10.9 T·m −4%
Xmax5.3 mm +5%
Sensitivity89.2 dB −2.3, worse
Oberton8M150
No current priceFs68 Hz +36%, worse
Qts0.22 –
Vas21.6 L +27%, worse
BL11.6 T·m –
Xmax3.3 mm −35%, worse
Sensitivity96.9 dB +5.4, better
Tang BandW6-1559S
No current priceFs45 Hz −10%, better
Qts0.24 +9%
Vas13.3 L −21%, better
BL13.7 T·m +20%, better
Xmax5.5 mm +10%, better
Sensitivity88.9 dB −2.6, worse

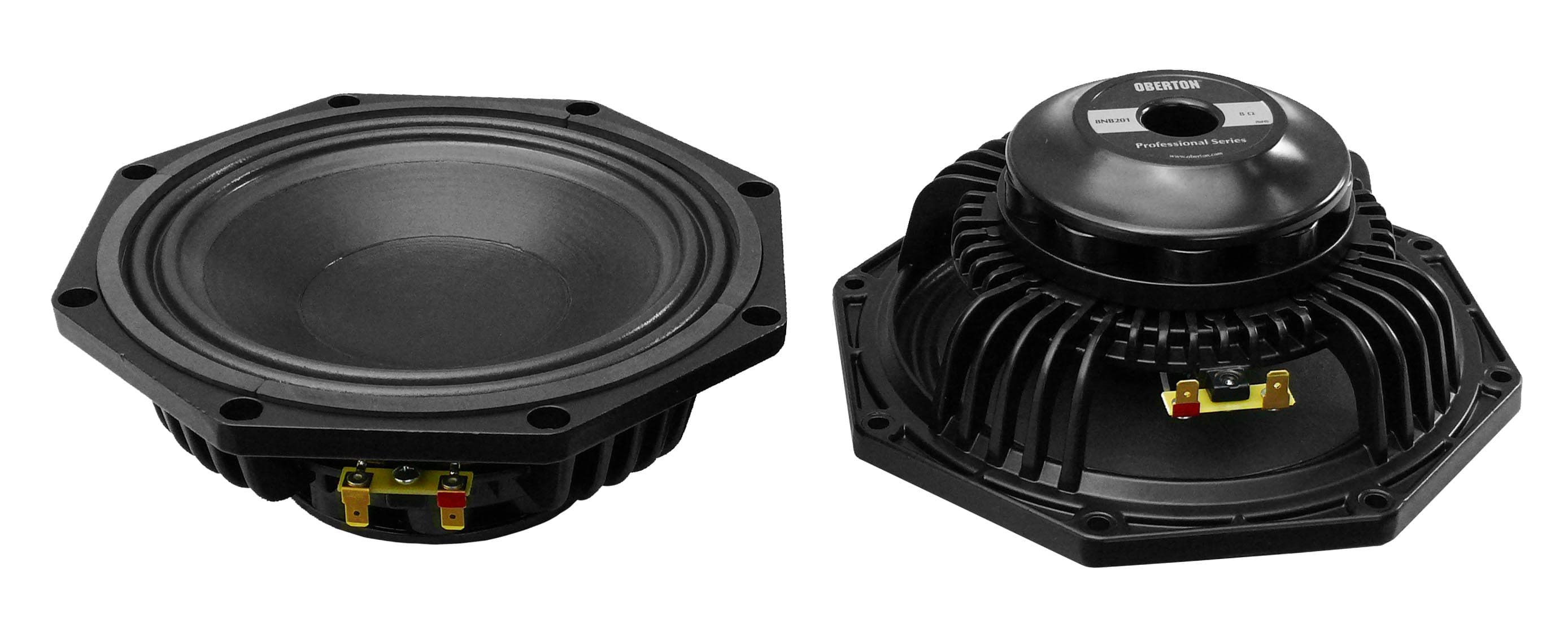

Oberton8NB201
