- Fs
- 63Hz
- Xmax
- 5.5mm
- SPL
- 94dB
- Pe
- 300W
- BL
- 15.2T·m
- Vd
- 127cm³
- Qts
- 0.25
- Vas
- 18L

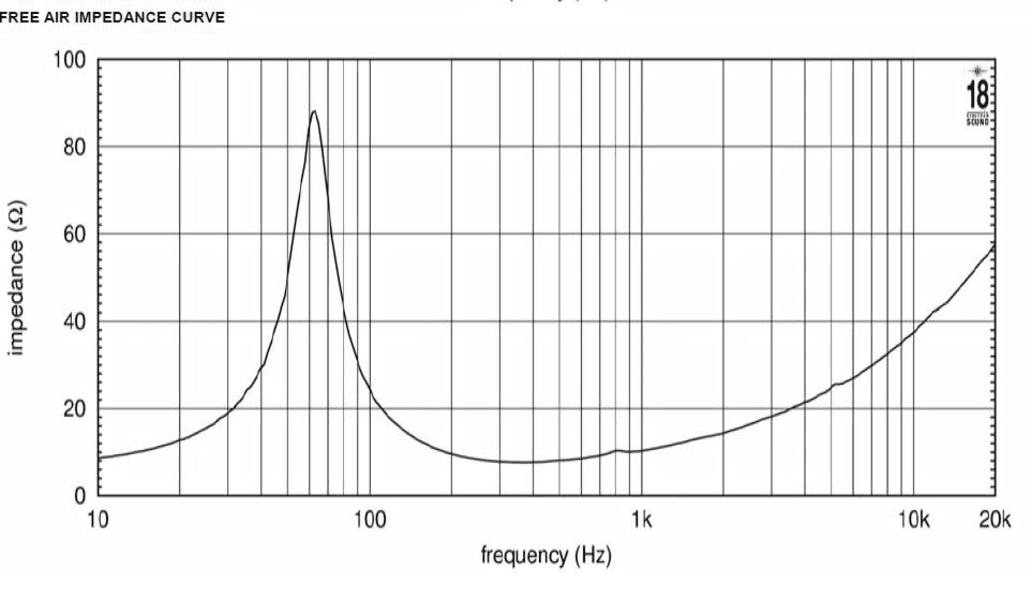

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

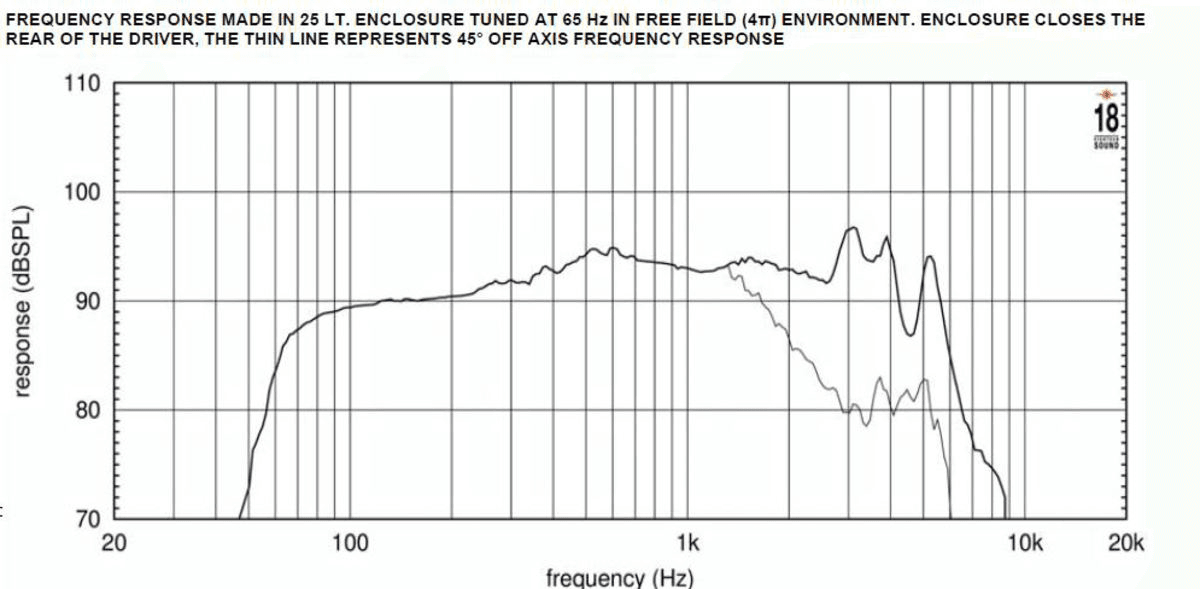

frequency response
Frequency response
117 plotted pointsMedium confidence249 selected pixels of 249
Published graphs
Eighteen Sound 8NW650 is an 8-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 63 Hz, Qts 0.25, Vas 17.8 L, Xmax 5.5 mm, sensitivity 94.2 dB, plus 127 cm³ Vd and 233 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £138.53.
The published T/S values agree with each other
Thiele/Small
- Fs
- 63Hz
- Qts
- 0.25
- Qes
- 0.27
- Qms
- 3.7
- Vas
- 17.8L
- Re
- 6.1Ω
- Le
- 0.71mH
Motor and cone
- BL
- 15.2T·m
- Sd
- 230cm²
- Mms
- 26g
- Xmax
- 5.5mm
- Vd †
- 127cm³
Power and response
- Sensitivity †
- 94.2dB
- Manufacturer sensitivity
- 96dB
- Power
- 300W
- Nominal power
- 300W
- Impedance
- 8Ω
- Range
- 55–6300Hz
- EBP †
- 233 · Leans vented
Size and mounting
- Diameter
- 210mm
- Cutout
- 185mm
- Bolt circle
- 195mm
- Depth
- 111mm
- Weight
- 2.4kg
Other published values
- Power Program
- 600
Sensitivity shows 94.2 dB, calculated from the T/S values. Eighteen Sound publishes 96.0 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 8″
- BL
- 15.2T·m
- Fs
- 63Hz
- Le
- 0.71mH
- Re
- 6.1Ω
- Sd
- 230cm²
- Mms
- 26g
- Qes
- 0.27
- Qms
- 3.7
- Qts
- 0.25
- SPL
- 94.2dB
- Vas
- 17.8L
- Xmax
- 5.5mm
- Power
- 300W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 55Hz
- Nominal power
- 300W
- Power Program
- 600
- Calculated sensitivity †
- 94.2dB
- High limit
- 6300Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 2.4kg
- Diameter
- 210mm
- Depth
- 111mm
- Cutout
- 185mm
- Bolt circle
- 195mm
