8-inch LF driver · 8NMB series · 64 mm voice coil · 250 W
Oberton 8NMB250V4 8Ω
8 Ω · 80–4000 Hz
No current price
- Fs
- 82Hz
- Xmax
- 4.5mm
- SPL
- 96dB
- Pe
- 250W
- BL
- 14.3T·m
- Vd
- 91cm³
- Qts
- 0.26
- Vas
- 11L

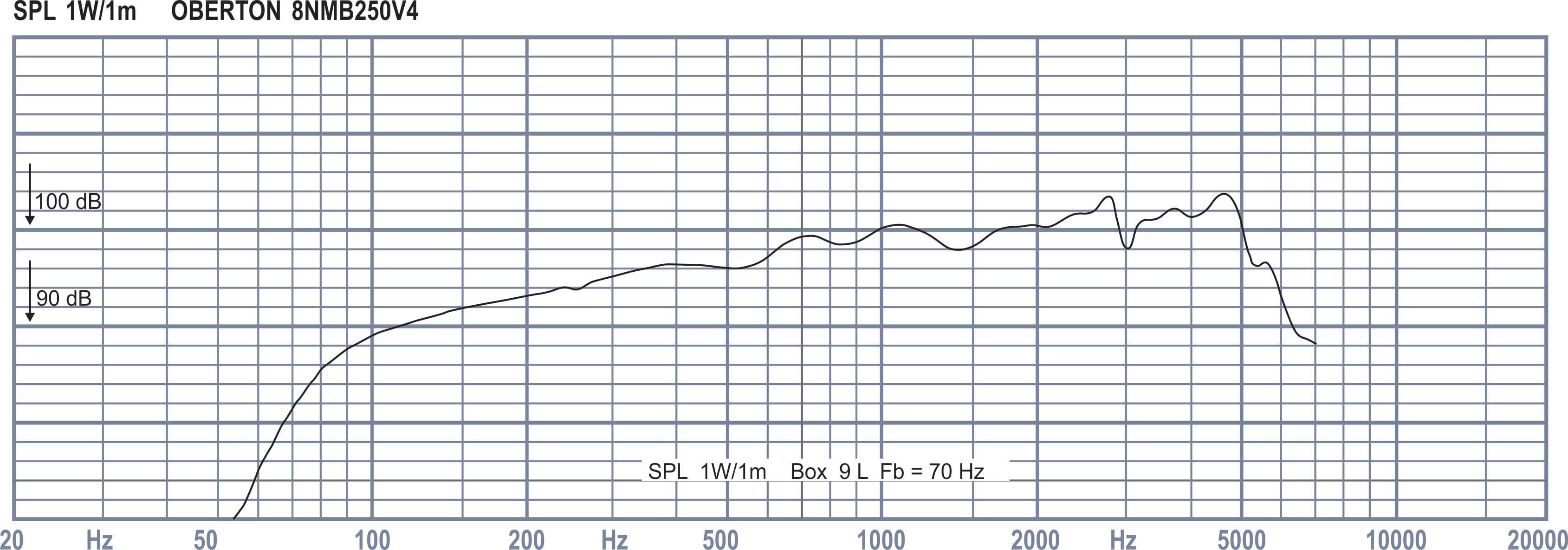

Published graphs
Oberton 8NMB250V4 is an 8-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 82 Hz, Qts 0.26, Vas 10.9 L, Xmax 4.5 mm, sensitivity 95.5 dB, plus 91 cm³ Vd and 305 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 82Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 6.4
- Vas
- 10.9L
- Re
- 5.5Ω
- Le
- 0.13mH
Motor and cone
- BL
- 14.3T·m
- Sd
- 202cm²
- Mms
- 19g
- Xmax
- 4.5mm
- Vd †
- 91cm³
- Voice coil
- 64mm
- Flux density
- 1.45T
Power and response
- Sensitivity †
- 95.5dB
- Manufacturer sensitivity
- 100dB
- Power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 6.6Ω
- Range
- 80–4000Hz
- EBP †
- 305 · Leans vented

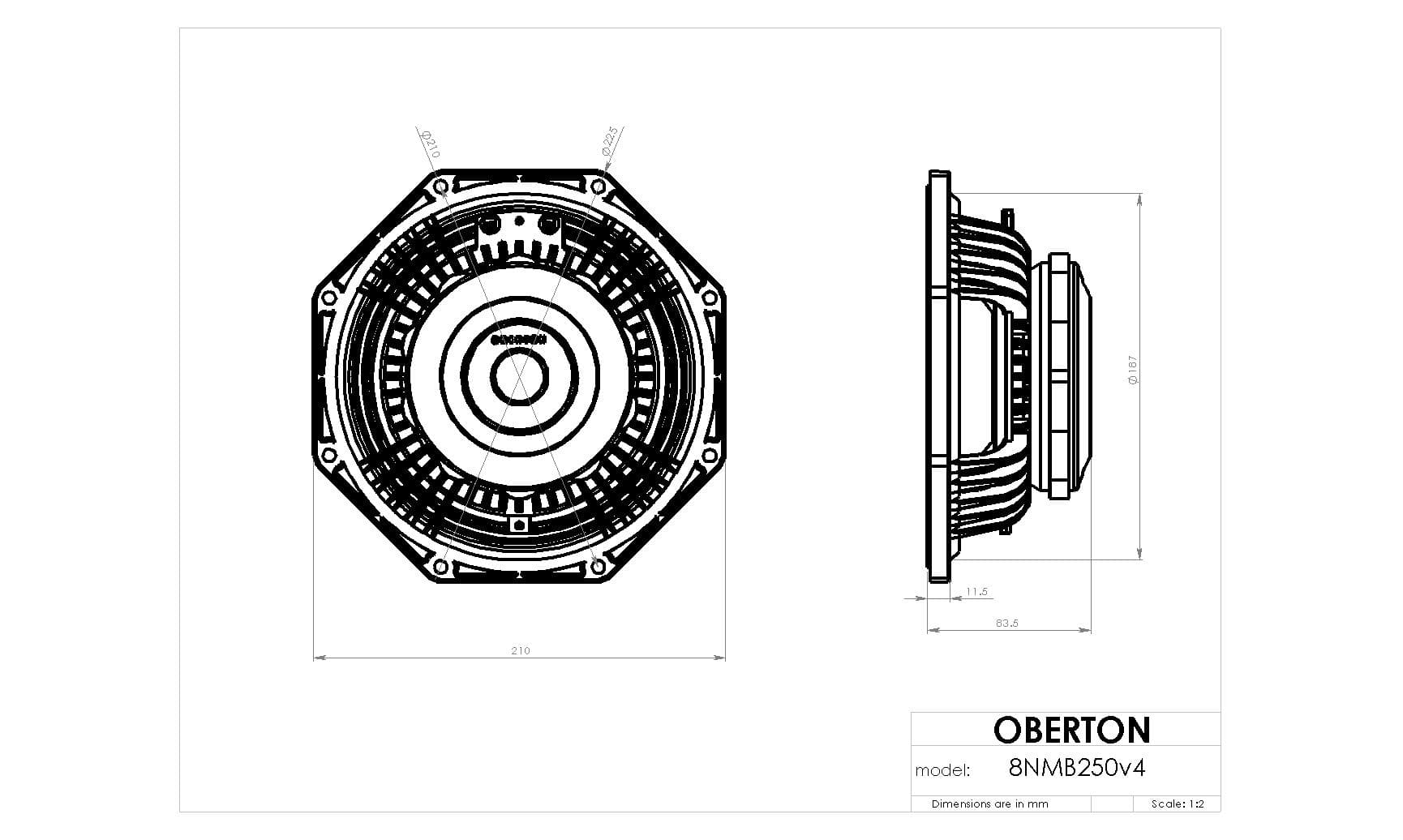

Size and mounting
- Diameter
- 225mm
- Cutout
- 187mm
- Bolt circle
- 210mm
- Depth
- 83.5mm
- Weight
- 2.6kg
Other published values
- Cms
- 0.20mm/N
- Power Program
- 500
Sensitivity shows 95.5 dB, calculated from the T/S values. Oberton publishes 100.0 dB, 4.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 8″
- BL
- 14.3T·m
- Fs
- 82Hz
- Le
- 0.13mH
- Re
- 5.5Ω
- Sd
- 202cm²
- Cms
- 0.20mm/N
- Mms
- 19g
- Qes
- 0.27
- Qms
- 6.4
- Qts
- 0.26
- SPL
- 95.5dB
- Vas
- 10.9L
- Xmax
- 4.5mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 1.45T
- Sensitivity
- 100dB
- Low limit
- 80Hz
- Power Program
- 500
- Calculated sensitivity †
- 95.5dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 6.6Ω
- Voice coil
- 64mm
- Weight
- 2.6kg
- Diameter
- 225mm
- Depth
- 83.5mm
- Cutout
- 187mm
- Bolt circle
- 210mm
