8-inch LF driver · 8NM series · 51 mm voice coil · 200 W
Oberton 8NM201 8Ω
8 Ω · 300–4000 Hz
No current price
- Fs
- 103Hz
- Xmax
- 2.8mm
- SPL
- 97dB
- Pe
- 200W
- BL
- 13.7T·m
- Vd
- 56cm³
- Qts
- 0.29
- Vas
- 8L

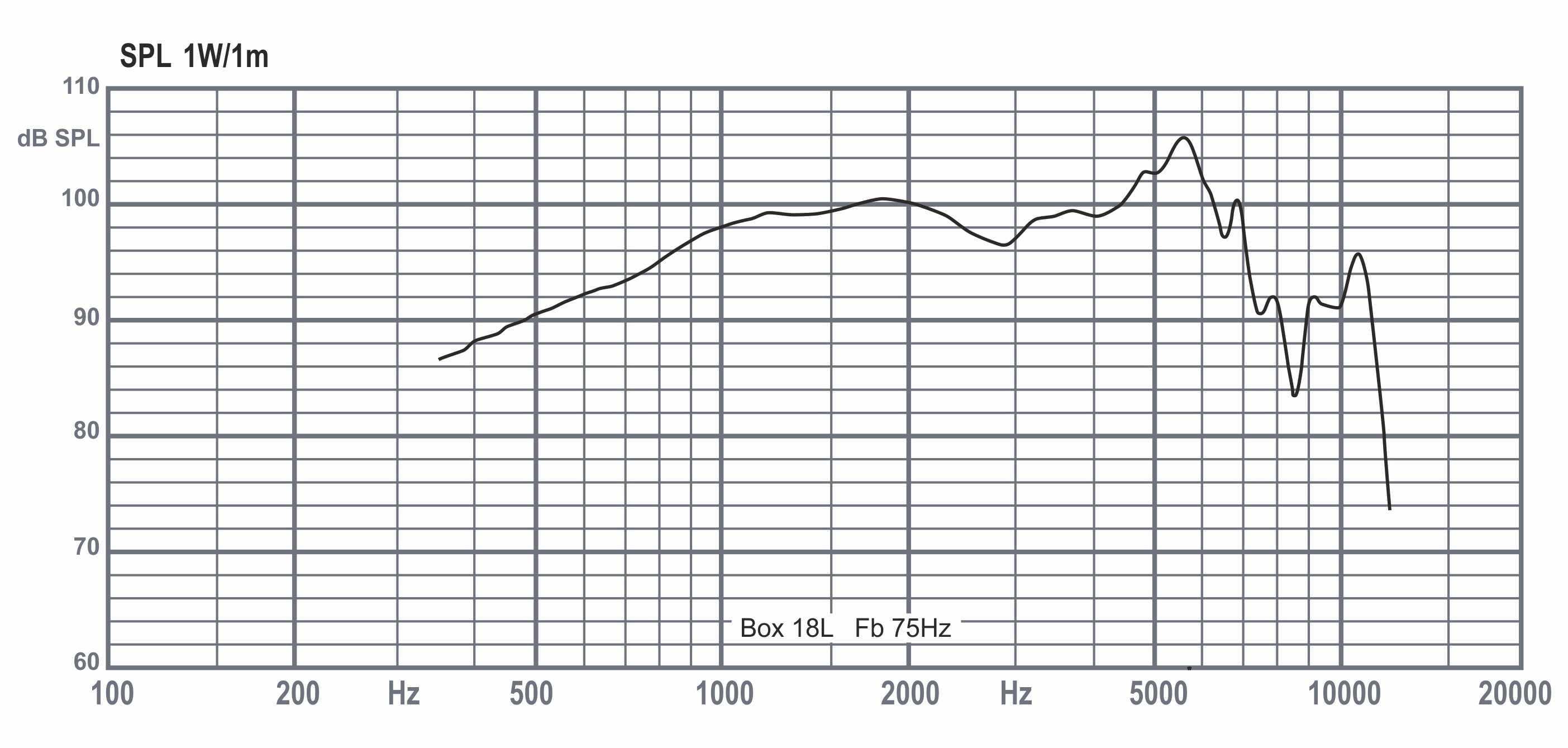

Published graphs
Oberton 8NM201 is an 8-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 103 Hz, Qts 0.29, Vas 8.1 L, Xmax 2.8 mm, sensitivity 96.8 dB, plus 56 cm³ Vd and 350 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 103Hz
- Qts
- 0.29
- Qes
- 0.29
- Qms
- 11.0
- Vas
- 8.1L
- Re
- 5.2Ω
- Le
- 0.40mH
Motor and cone
- BL
- 13.7T·m
- Sd
- 202cm²
- Mms
- 17g
- Xmax
- 2.8mm
- Vd †
- 56cm³
- Voice coil
- 51mm
- Flux density
- 1.37T
Power and response
- Sensitivity †
- 96.8dB
- Manufacturer sensitivity
- 700dB
- Power
- 200W
- Impedance
- 8Ω
- Min. impedance
- 6.7Ω
- Range
- 300–4000Hz
- EBP †
- 350 · Leans vented

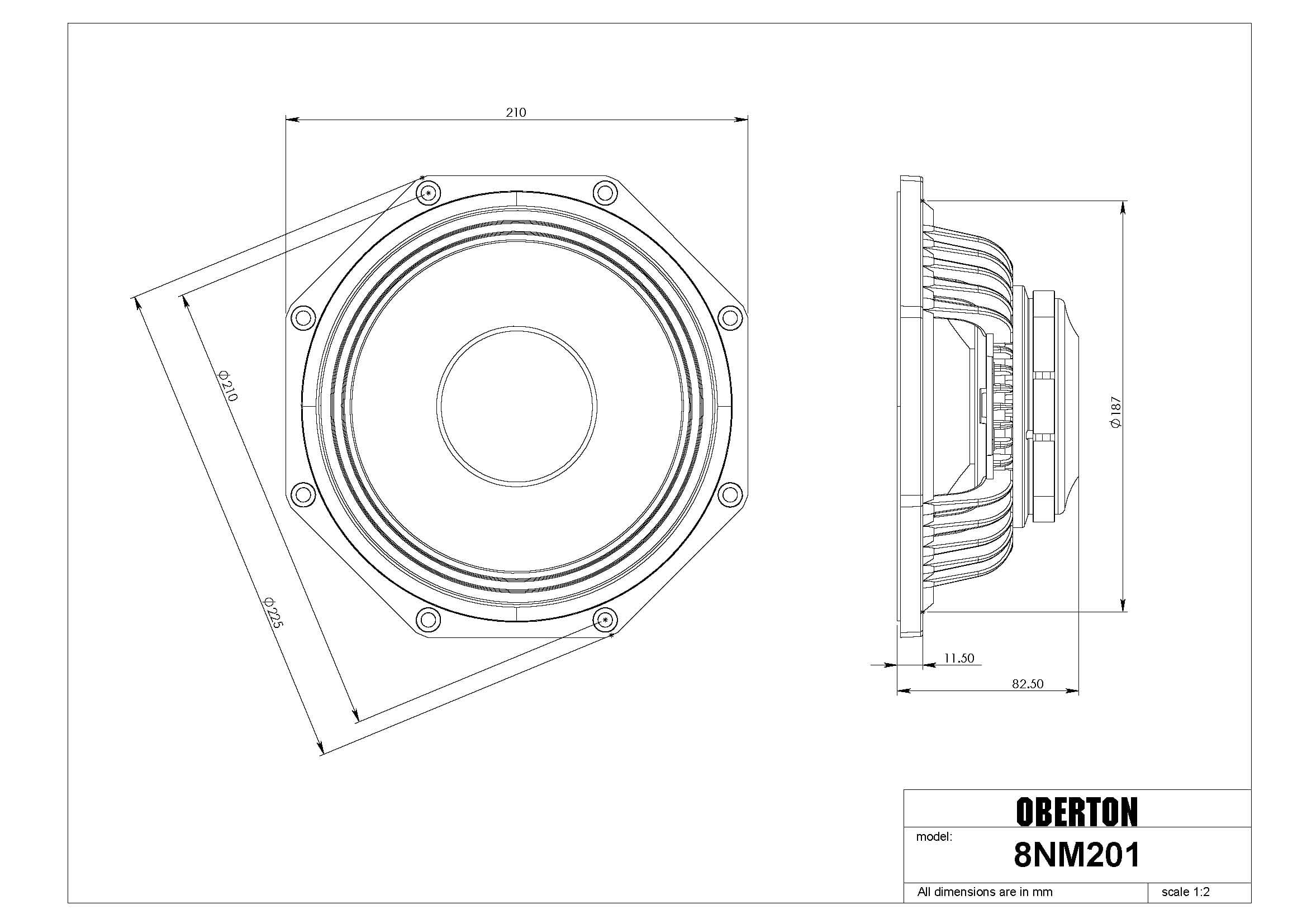

Size and mounting
- Diameter
- 225mm
- Cutout
- 187mm
- Bolt circle
- 210mm
- Depth
- 82.5mm
- Weight
- 2.1kg
Other published values
- Cms
- 0.14mm/N
- Power Program
- 400
Sensitivity shows 96.8 dB, calculated from the T/S values. Oberton publishes 700.0 dB, 603.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 8″
- BL
- 13.7T·m
- Fs
- 103Hz
- Le
- 0.40mH
- Re
- 5.2Ω
- Sd
- 202cm²
- Cms
- 0.14mm/N
- Mms
- 17g
- Qes
- 0.29
- Qms
- 11.0
- Qts
- 0.29
- SPL
- 96.8dB
- Vas
- 8.1L
- Xmax
- 2.8mm
- Power
- 200W
- Impedance
- 8Ω
- Flux density
- 1.37T
- Sensitivity
- 700dB
- Low limit
- 300Hz
- Power Program
- 400
- Calculated sensitivity †
- 96.8dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 700dB
- Min. impedance
- 6.7Ω
- Voice coil
- 51mm
- Weight
- 2.1kg
- Diameter
- 225mm
- Depth
- 82.5mm
- Cutout
- 187mm
- Bolt circle
- 210mm
