Eighteen Sound 8NTLW2500 8Ω
80–5000 Hz
No current price
- Fs
- 76Hz
- Xmax
- 7.6mm
- SPL
- 92dB
- Pe
- 500W
- BL
- 18.1T·m
- Vd
- 173cm³
- Qts
- 0.30
- Vas
- 8L

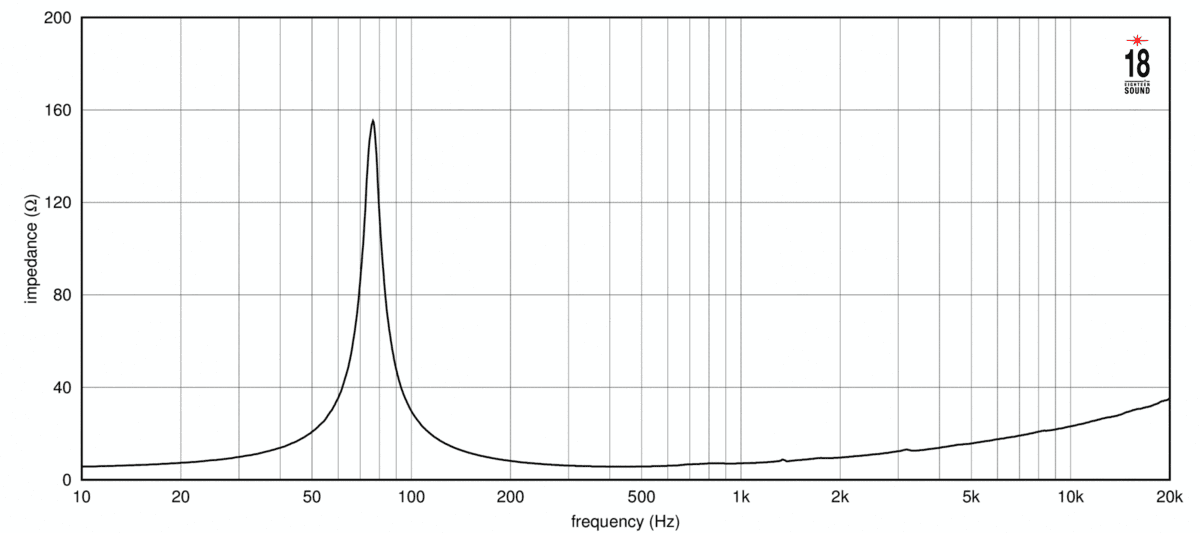

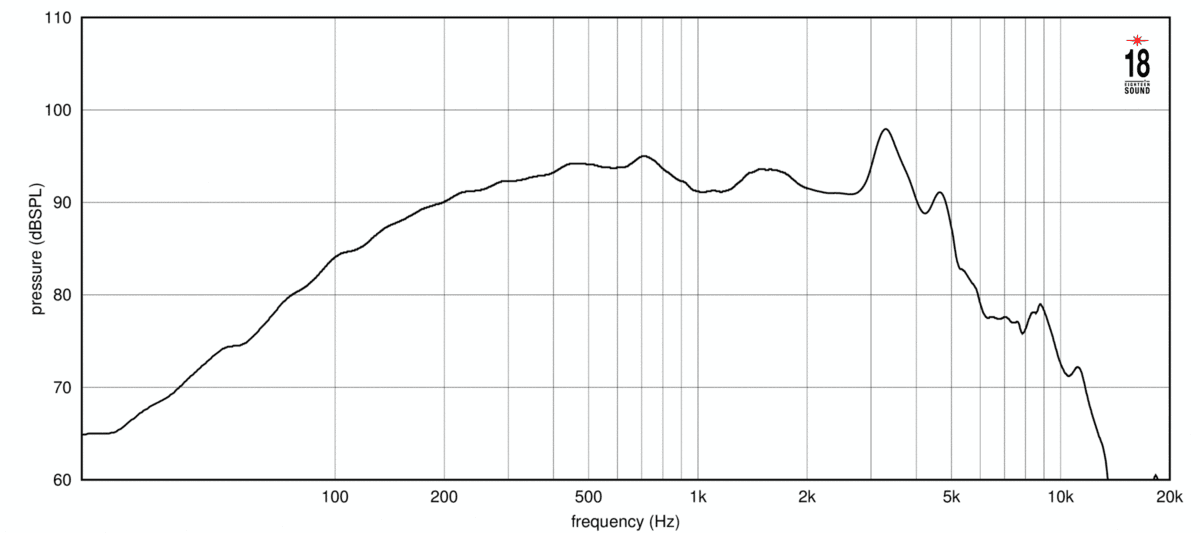

Published graphs
Eighteen Sound 8NTLW2500 is an 8-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 76 Hz, Qts 0.30, Vas 7.6 L, Xmax 7.6 mm, sensitivity 92.3 dB, plus 173 cm³ Vd and 245 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 76Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 8.9
- Vas
- 7.6L
- Re
- 5.1Ω
- Le
- 0.45mH
Motor and cone
- BL
- 18.1T·m
- Sd
- 227cm²
- Mms
- 42g
- Xmax
- 7.6mm
- Vd †
- 173cm³
Power and response
- Sensitivity †
- 92.3dB
- Manufacturer sensitivity
- 94.5dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 8Ω
- Range
- 80–5000Hz
- EBP †
- 245 · Leans vented
Size and mounting
- Diameter
- 225mm
- Cutout
- 186mm
- Bolt circle
- 210mm
- Depth
- 137mm
- Weight
- 3kg
Other published values
- Power Program
- 1000
Sensitivity shows 92.3 dB, calculated from the T/S values. Eighteen Sound publishes 94.5 dB, 2.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 8″
- BL
- 18.1T·m
- Fs
- 76Hz
- Le
- 0.45mH
- Re
- 5.1Ω
- Sd
- 227cm²
- Mms
- 42g
- Qes
- 0.31
- Qms
- 8.9
- Qts
- 0.30
- SPL
- 92.3dB
- Vas
- 7.6L
- Xmax
- 7.6mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 94.5dB
- Low limit
- 80Hz
- Nominal power
- 500W
- Power Program
- 1000
- Calculated sensitivity †
- 92.3dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 94.5dB
- Weight
- 3kg
- Diameter
- 225mm
- Depth
- 137mm
- Cutout
- 186mm
- Bolt circle
- 210mm
