Overview
LF Driver8MB series
Oberton
Oberton 8MB201
Oberton 8MB201 is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 68Hz, Qts 0.31, Vas 14.7L, Xmax 7mm, sensitivity 93.4dB, plus 140cm³ Vd and 205 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
93.4dB
200.0dBmanufacturer; using T/S-derived value (106.6dB delta).
EBP
205
Vented alignment
Vd
140cm³
T/S Parameters
Valid
Fs68Hz
Qts0.31
Qes0.33
Qms6.2
Vas14.7L
Re5.8Ω
Le0.80mH
BL12.5Tm
Sd200cm²
Mms21g
Xmax7.0mm
SPL93dB
Power200W
Impedance8Ω
Min Impedance6.7Ω
F Low65Hz
F High3000Hz
Voice Coil51mm
Flux Density1.35T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

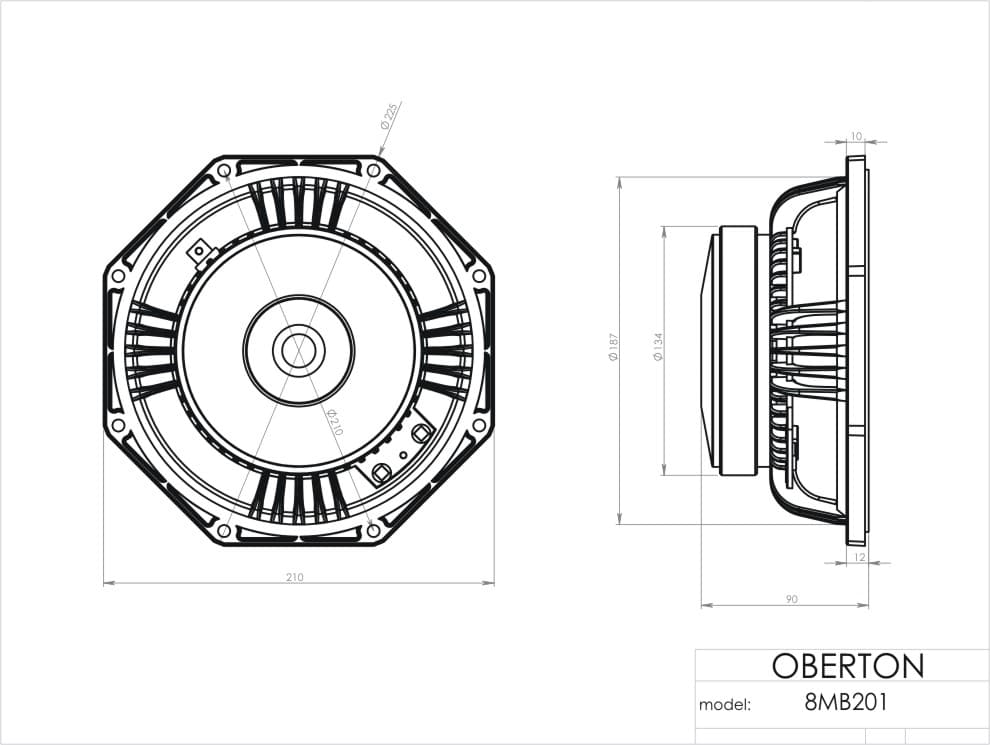

Dimensions & Physical
Weight3.2kg
Diameter225.0mm
Overall Depth90.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Oberton
8MB201
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
£100.24
FaitalPRO
8PR210
8"
Xmax6.9mm-1%
Qts0.29-8%
BL13.5Tm+8%
Vas15.4L+4%
Qes0.32-3%
86%
Similarity
£62.00
FaitalPRO
8RS250
8"
Xmax6.9mm-1%
Qts0.32+2%
BL13.5Tm+8%
Vas18.3L+24%
Qes0.34+3%
85%
Similarity
£121.64
B&C
8FG64
8"
Xmax7mm0%
Qts0.31-1%
BL15.8Tm+26%
Vas15L+2%
Qes0.32-3%
84%
Similarity
CIARE
HSG200
8"
Xmax7.5mm+7%
Qts0.31-1%
BL11.8Tm-6%
Vas19L+29%
Qes0.330%
84%
Similarity
CIARE
HSG200-4
8"
Xmax7.5mm+7%
Qts0.31-1%
BL11.8Tm-6%
Vas19L+29%
Qes0.330%
82%
Similarity
£106.30
B&C
8FG51
8"
Xmax6.5mm-7%
Qts0.32+2%
BL12.9Tm+3%
Vas20L+36%
Qes0.34+3%
81%
Similarity
Lavoce
CAF082.00K
8"
Xmax6.7mm-4%
Qts0.34+8%
BL11.7Tm-7%
Vas15.1L+2%
Qes0.38+15%
81%
Similarity
Lavoce
CAN082.00K
8"
Xmax6.7mm-4%
Qts0.27-14%
BL13.2Tm+5%
Vas15.1L+2%
Qes0.3-9%
79%
Similarity
£231.79
FaitalPRO
8HX240
8"
Xmax6.2mm-12%
Qts0.3-4%
BL13.8Tm+10%
Vas12.9L-12%
Qes0.31-6%
76%
Similarity
£178.00
B&C
8FCX51
8"
Xmax6mm-14%
Qts0.34+8%
BL11.5Tm-8%
Vas16L+9%
Qes0.36+9%
76%
Similarity
£191.24
FaitalPRO
8HX230
8"
Xmax6.2mm-12%
Qts0.29-8%
BL15Tm+20%
Vas14.7L0%
Qes0.31-6%
76%
Similarity
£103.00
B&C
8NDL51
8"
Xmax7mm0%
Qts0.37+18%
BL12.4Tm-1%
Vas14L-5%
Qes0.41+24%
