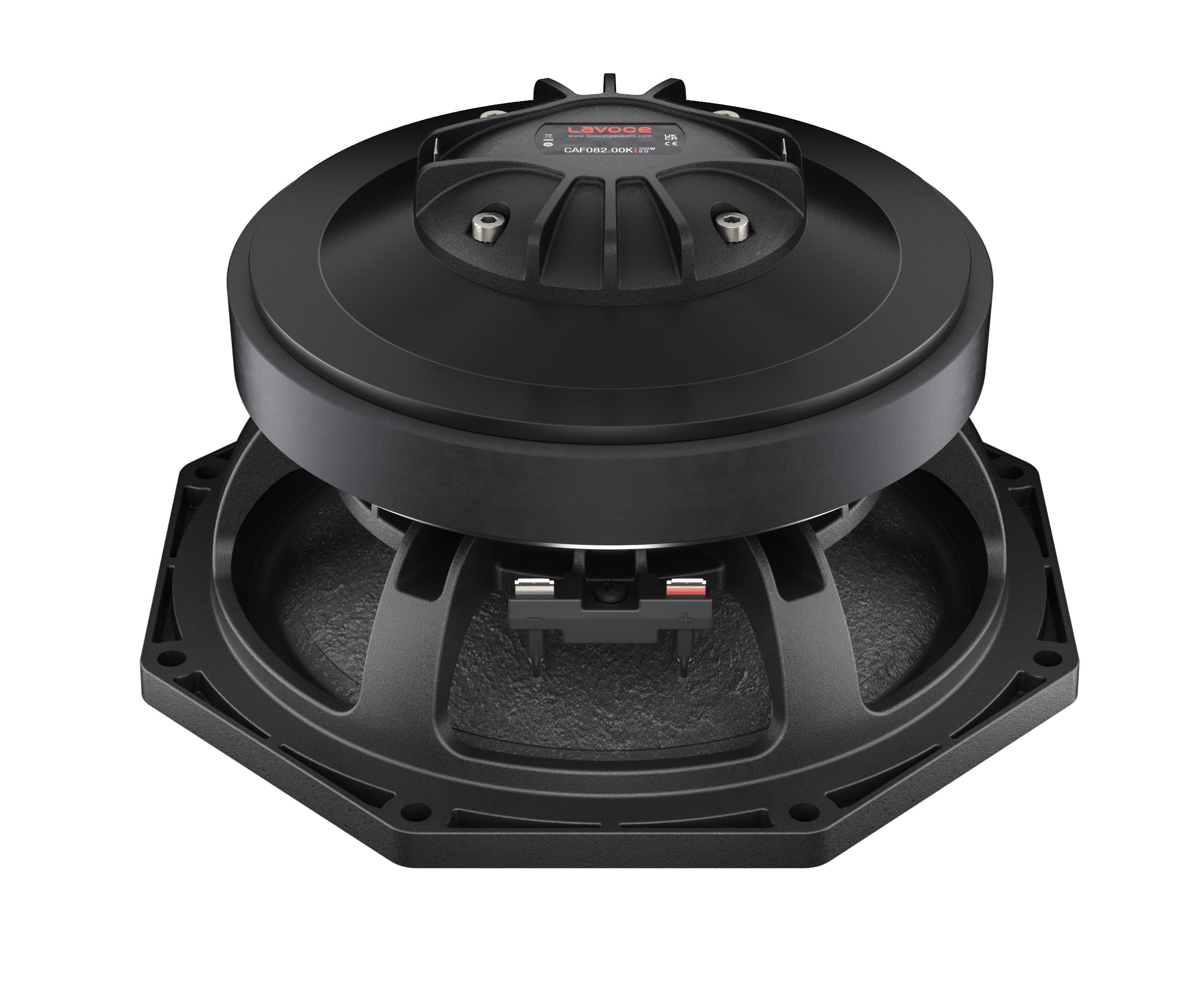

8-inch LF driver · CAF082 series · 51 mm voice coil · 250 W

Lavoce CAF082.00K 8Ω

Name: Lavoce CAF082.00K 8 Ohm
Brand: Lavoce
SKU: CAF082.00K

8 Ω · 70–20000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 72Hz
Xmax: 6.7mm
SPL: 94dB
Pe: 250W
BL: 11.7T·m
Vd: 147cm³
Qts: 0.34
Vas: 15L

See all 25 specs

Specifications

Published by Lavoce

Manufacturer page

Lavoce CAF082.00K is an 8-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 72 Hz, Qts 0.34, Vas 15.1 L, Xmax 6.7 mm, sensitivity 93.7 dB, plus 147 cm³ Vd and 189 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 72Hz
Qts: 0.34
Qes: 0.38
Qms: 4.0
Vas: 15.1L
Re: 5.1Ω
Le: 0.71mH

Motor and cone

BL: 11.7T·m
Sd: 220cm²
Mms: 22g
Xmax: 6.7mm
Vd †: 147cm³
Voice coil: 51mm

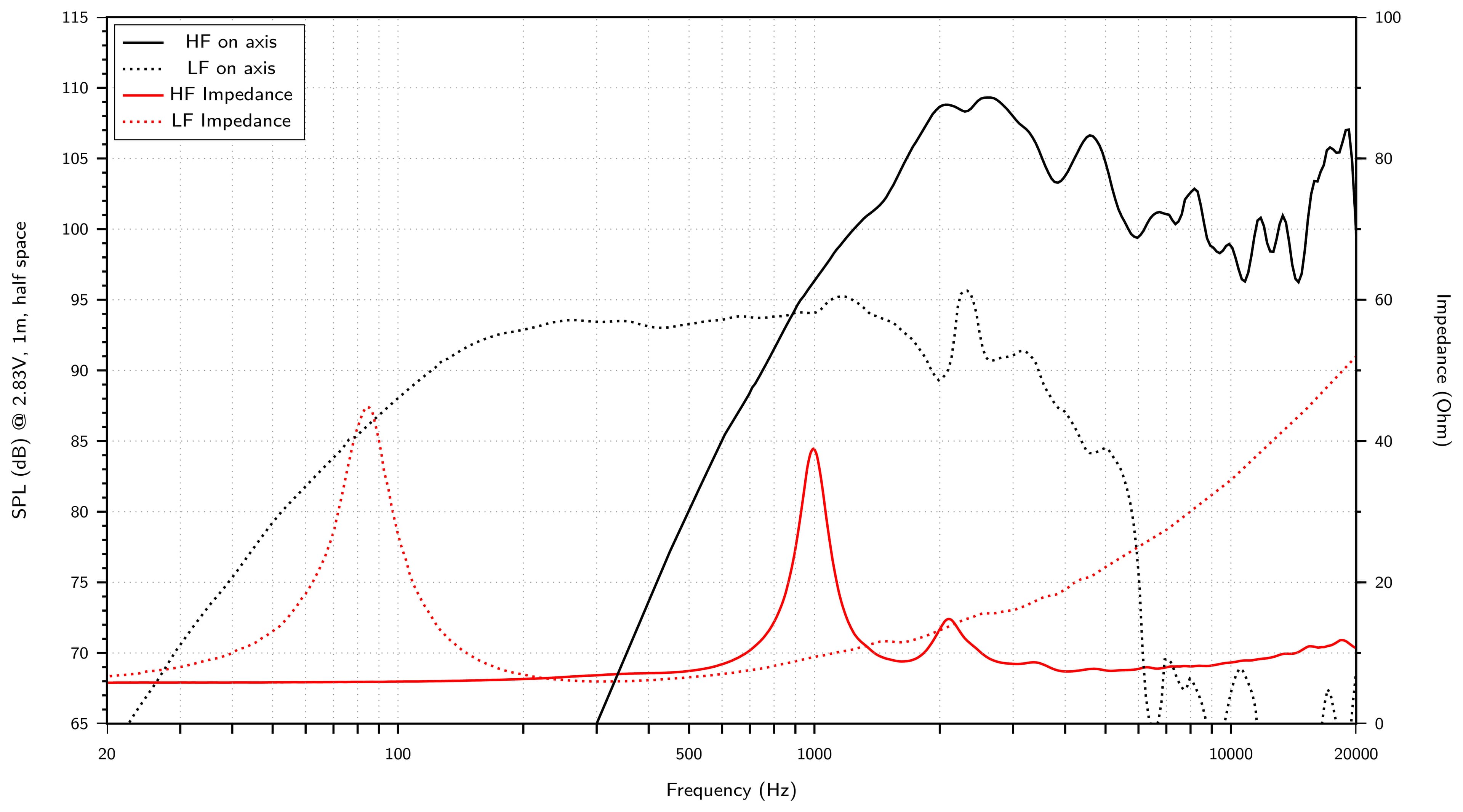

Power and response

Sensitivity †: 93.7dB
Manufacturer sensitivity: 96dB
Power: 250W
Impedance: 8Ω
Min. impedance: 5.8Ω
Range: 70–20000Hz
EBP †: 189 · Leans vented

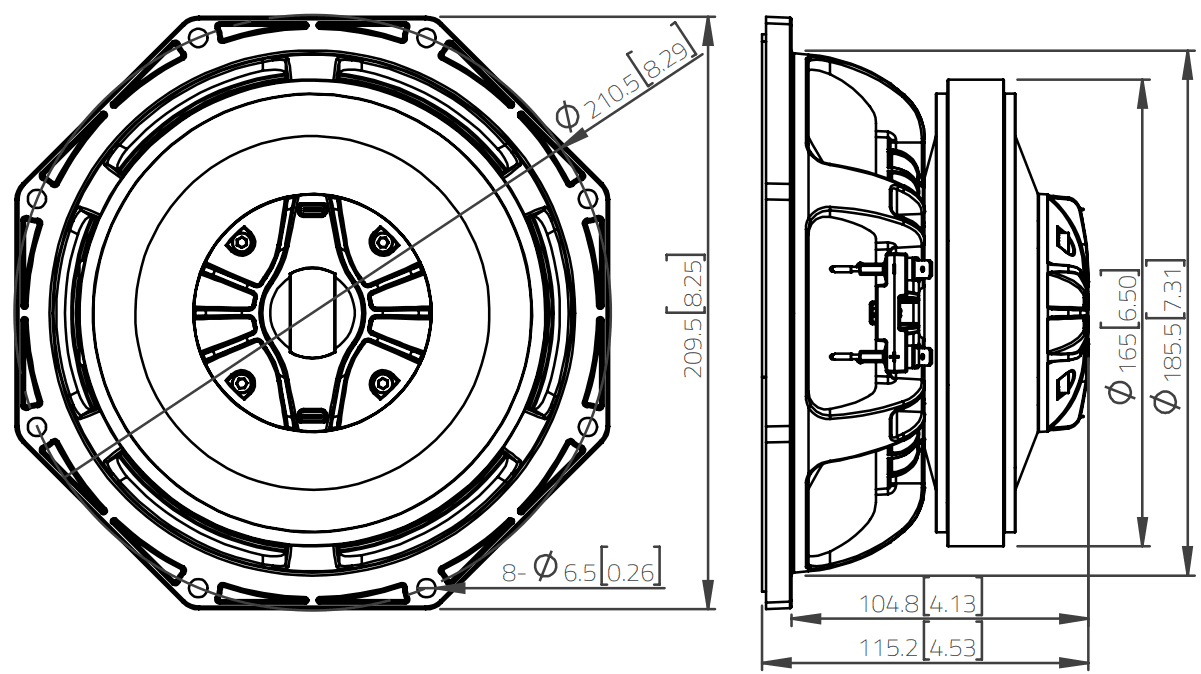

Size and mounting

Weight: 4.4kg

Other published values

Cms: 0.22mm/N
Xmech: 10.7
Power Program: 500
High limit: 3500Hz

Sensitivity shows 93.7 dB, calculated from the T/S values. Lavoce publishes 96.0 dB, 2.3 dB apart.

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF

BL: 11.7T·m
Fs: 72Hz
Le: 0.71mH
Re: 5.1Ω
Sd: 220cm²
Cms: 0.22mm/N
Mms: 22g
Qes: 0.38
Qms: 4.0
Qts: 0.34
SPL: 93.7dB
Vas: 15.1L
Xmax: 6.7mm
Xmech: 10.7
Power: 250W
Impedance: 8Ω
Sensitivity: 96dB
Low limit: 70Hz
Power Program: 500
Calculated sensitivity †: 93.7dB
High limit: 3500Hz
Manufacturer sensitivity: 96dB
Min. impedance: 5.8Ω
Voice coil: 51mm
Weight: 4.4kg

HF

SPL: 104.5dB
Power: 50W
Impedance: 8Ω
Flux density: 1.85T
Sensitivity: 104.5dB
Low limit: 1200Hz
Power Program: 100
High limit: 20000Hz
Throat: 25mm
Manufacturer sensitivity: 104.5dB
Min. impedance: 7.5Ω
Voice coil: 44mm
Crossover: 1600Hz
