Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverBIANCO series
SB Audience
SB Audience BIANCO-8MW250
SB Audience BIANCO-8MW250 is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 74Hz, Qts 0.40, Vas 13.8L, Xmax 6.5mm, sensitivity 93dB, plus 137cm³ Vd and 164 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £49.00.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.0dB
EBP
164
Vented alignment
Vd
137cm³

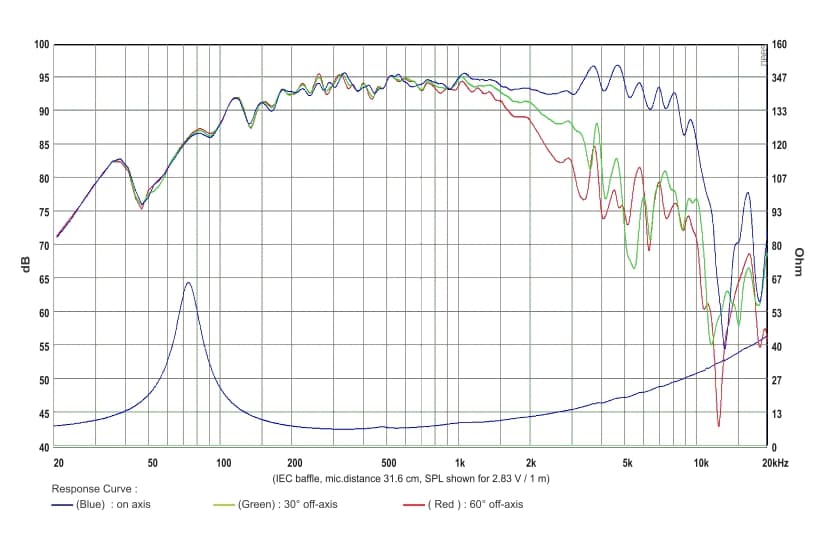

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs74Hz
Qts0.40
Qes0.45
Qms3.9
Vas13.8L
Re5.6Ω
Le0.53mH
BL11.0Tm
Sd211cm²
Mms21g
Xmax6.5mm
SPL93dB
Power250W
Impedance8Ω
Min Impedance5.6Ω
F Low75Hz
F High10300Hz
Voice Coil50mm
Flux Density1.26T
Pricing & availability
Price definitionsPrice movement
Best current price
£49.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

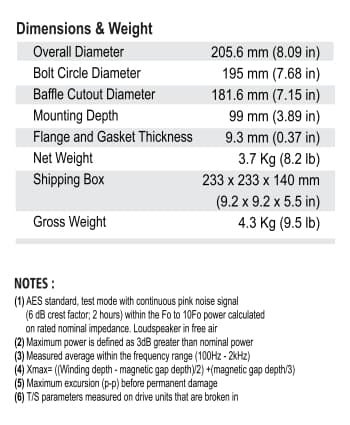

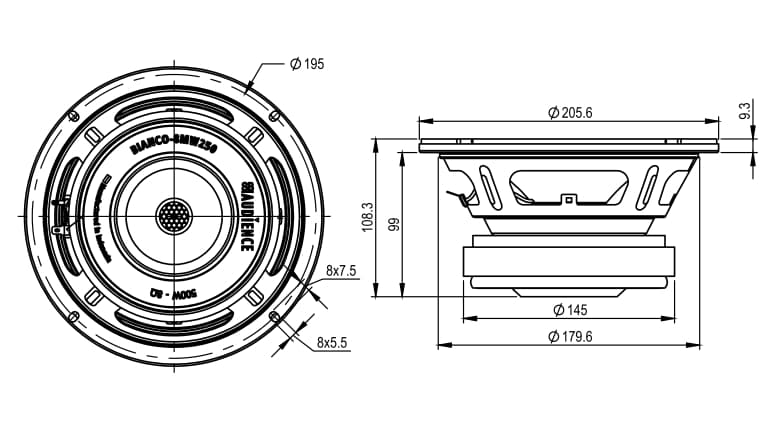

Dimensions & Physical
Weight3.7kg
Diameter205.6mm
Cutout Diameter181.6mm
Bolt Circle Diameter195.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Audience
BIANCO-8MW250
8"
Best current price
£49.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
11 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity
31% cheaper£34.02
Lavoce
WSF081.82
8"
Lower price
Xmax4.6mm-29%
Qts0.38-5%
BL11.3Tm+2%
Vas14.3L+4%
Qes0.43-4%
79%
Similarity
11% cheaper£43.52
FaitalPRO
8FE300
8"
Lower price
Xmax5.5mm-15%
Qts0.44+10%
BL11.3Tm+3%
Vas15.7L+14%
Qes0.46+2%
62%
Similarity
2% more£50.00
Celestion
TF0818
8"
Higher price
Xmax5mm-23%
Qts0.43+7%
BL12.9Tm+18%
Vas9.4L-32%
Qes0.49+10%
69%
Similarity
4% more£51.00
Fane
SOVEREIGN 8-225
8"
Higher price
Xmax5.5mm-15%
Qts0.38-5%
BL11Tm0%
Vas22L+59%
Qes0.42-7%
77%
Similarity
12% more£54.66
Peerless
GBS-200F35CP02-04
8"
Higher price
Xmax7.8mm+20%
Qts0.44+10%
BL11.7Tm+6%
Vas13.9L+1%
Qes0.48+6%
74%
Similarity
22% more£59.70
Celestion
TRUVOX 0820
8"
Higher price
Xmax5mm-23%
Qts0.39-3%
BL11.5Tm+5%
Vas17.3L+25%
Qes0.42-7%
53%
Similarity
27% more£62.00
FaitalPRO
8RS250
8"
Higher price
Xmax6.9mm+6%
Qts0.32-20%
BL13.5Tm+23%
Vas18.3L+33%
Qes0.34-24%
79%
Similarity
46% more£71.42
Lavoce
WAF082.00
8"
Higher price
Xmax6.3mm-3%
Qts0.37-8%
BL12.5Tm+14%
Vas11.9L-14%
Qes0.41-9%
66%
Similarity
51% more£73.79
FaitalPRO
8PR200
8"
Higher price
Xmax8.2mm+25%
Qts0.37-8%
BL11.5Tm+5%
Vas16.9L+22%
Qes0.38-16%
80%
Similarity
53% more£75.00
FaitalPRO
8PR320
8"
Higher price
Xmax7.3mm+13%
Qts0.41+2%
BL12.9Tm+17%
Vas13.1L-5%
Qes0.43-4%
91%
Similarity
90% more£92.98
B&C
8CL51
8"
Higher price
Xmax6.5mm0%
Qts0.41+2%
BL12Tm+9%
Vas12.5L-9%
Qes0.44-2%
