Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespB&C 8FCX51 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver8FCX series
B&C
B&C 8FCX51
B&C 8FCX51 is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 69Hz, Qts 0.34, Vas 16L, Xmax 6mm, sensitivity 93.7dB, plus 132cm³ Vd and 192 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £178.00.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.7dB
96.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
192
Vented alignment
Vd
132cm³

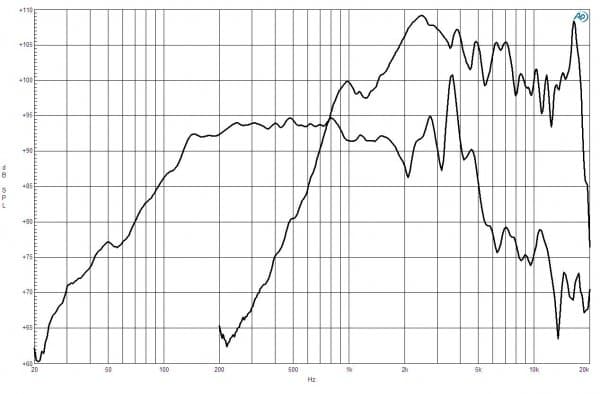

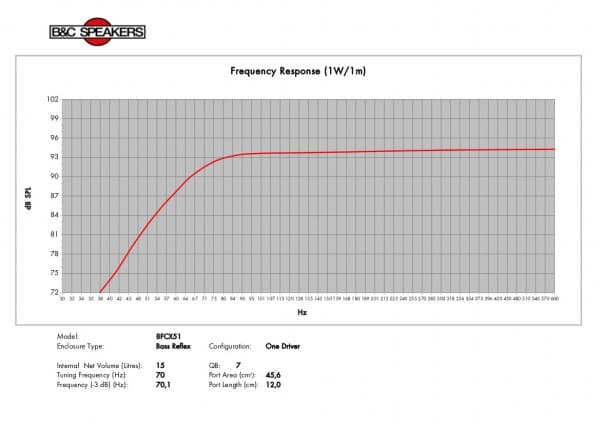

Frequency response

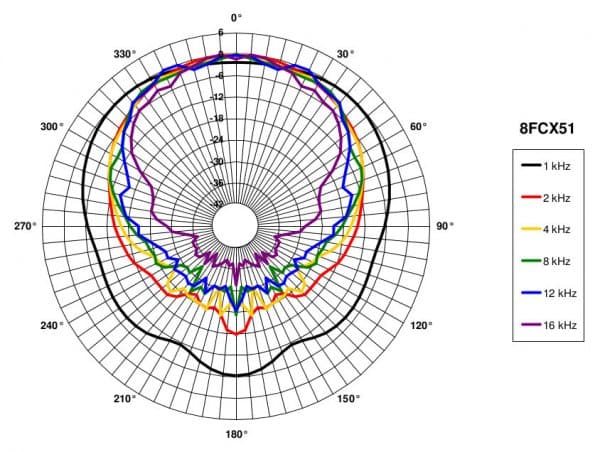

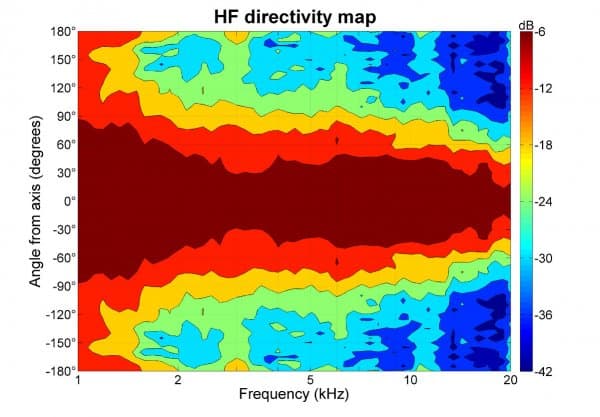

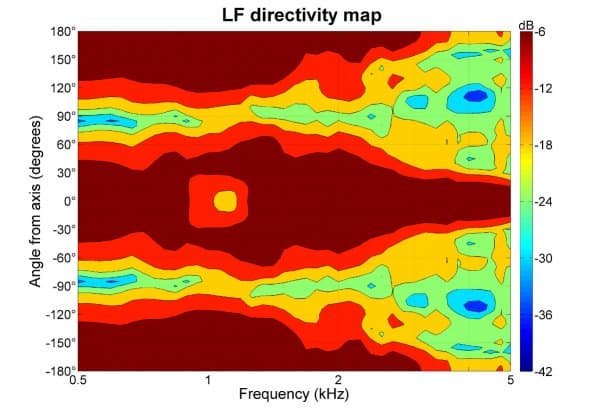

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs69Hz
Qts0.34
Qes0.36
Qms6.3
Vas16.0L
Re4.9Ω
Le0.90mH
BL11.5Tm
Sd220cm²
Mms22g
Xmax6.0mm
SPL94dB
Power250W
Power Nominal250W
Impedance8Ω
Min Impedance6.0Ω
Voice Coil51mm
Flux Density1.00T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Other offers
2 vendorsjpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£186.30
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£186.30
inc VAT
In stock
Best current price
Updated 11 Sept 2026
bluearan
£178.00
Avg £183.53£5.53 below avg (-3.0%)
inc VAT·34 in stock·5-7 weeks
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs69 Hz
Qts0.34
Qes0.36
Qms6.3
Vas16.0 L
Re4.9 Ω
Le0.90 mH
BL11.5 Tm
Sd220 cm²
Mms22 g
Xmax6.0 mm
SPL94 dB
Power250 W
Power Nominal250 W
Impedance8 Ω
Min Impedance6.0 Ω
Voice Coil51 mm
Flux Density1.00 T
HFSpecifications HF unit
Le0.11 mH
SPL104 dB
Power50 W
Power Nominal50 W
Impedance8 Ω
Min Impedance7.0 Ω
Xover1800 Hz
Voice Coil44 mm
Flux Density1.80 T
Additional Manufacturer Specs
Bl11.5 Tm
Fs69 Hz
Le0.9 mH
Re4.9 Ω
Sd220 cm² (34.1 in²)
Ebp192 Hz
Mms22 g
Qes0.36
Qms6.3
Qts0.34
Vas16 dm³ (0.56 ft³)
η01.4 %
Xvar6 mm
Winding Depth17.5 mm (0.69 in)
Former MaterialGlass Fibre
Nominal Diameter210 mm (8 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)
Woofer Cone TreatmentWP Waterproof Front Side
