Overview
LF Driver
Sica

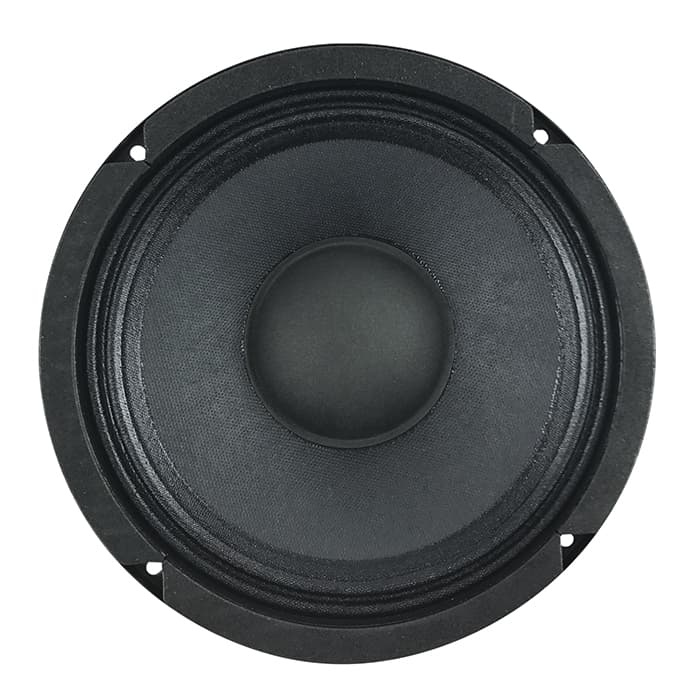

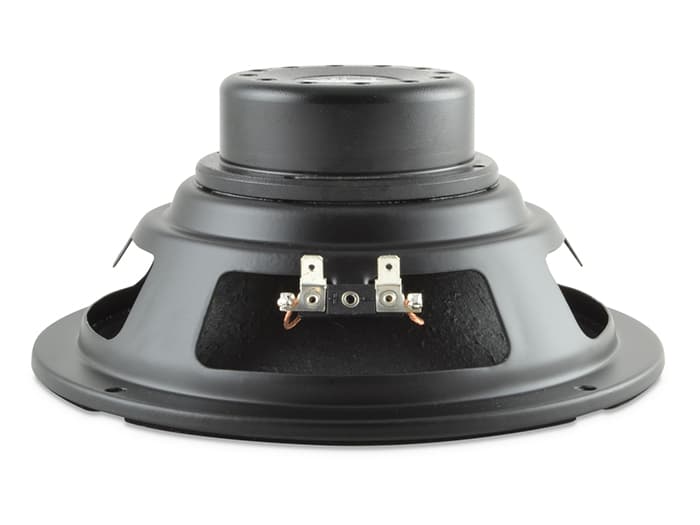

Sica 8 L 2 SL
Sica 8 L 2 SL is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 64Hz, Qts 0.32, Vas 18.2L, Xmax 3.5mm, sensitivity 93.3dB, plus 75cm³ Vd and 178 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
93.3dB
94.5dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
178
Vented alignment
Vd
75cm³
T/S Parameters
Valid
Fs64Hz
Qts0.32
Qes0.36
Qms2.7
Vas18.2L
Re6.1Ω
Le0.85mH
BL12.3Tm
Sd214cm²
Mms22g
Xmax3.5mm
SPL93dB
Power200W
Impedance8Ω
Voice Coil50mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter210.0mm
Overall Depth94.5mm
Cutout Diameter181.0mm
Bolt Circle Diameter198.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
8 L 2 SL
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
PRV Audio
8MB700FT
8"
Xmax3.5mm0%
Qts0.31-3%
BL12.3Tm0%
Vas20L+10%
Qes0.33-8%
87%
Similarity
£127.25
PRV Audio
8MB700FT-NDY
8"
Xmax3.6mm+4%
Qts0.3-6%
BL12.8Tm+4%
Vas18.8L+3%
Qes0.33-8%
83%
Similarity
Sica
8 N 2.5 PL
8"
Xmax3.5mm0%
Qts0.3-6%
BL12.9Tm+5%
Vas13.7L-25%
Qes0.33-8%
80%
Similarity
Sica
8 FE 2 CP
8"
Xmax4.5mm+29%
Qts0.320%
BL12.3Tm0%
Vas16.9L-7%
Qes0.37+3%
74%
Similarity
£71.54
Eminence
BETA 8CX
8"
Xmax3.2mm-9%
Qts0.29-9%
BL11.2Tm-9%
Vas21.4L+18%
Qes0.31-14%
71%
Similarity
CIARE
NDI8
8"
Xmax4.5mm+29%
Qts0.33+3%
BL12.8Tm+4%
Vas13L-29%
Qes0.360%
69%
Similarity
Sica
8 FE 2.5 CP
8"
Xmax4mm+14%
Qts0.28-12%
BL13Tm+6%
Vas15.6L-14%
Qes0.3-17%
69%
Similarity
Dayton Audio
APOLLO 8N
8"
Xmax3.9mm+12%
Qts0.320%
BL14.4Tm+17%
Vas8.8L-52%
Qes0.35-3%
67%
Similarity
£64.86
FaitalPRO
8PR155
8"
Xmax3.6mm+2%
Qts0.37+16%
BL13.4Tm+9%
Vas9.4L-48%
Qes0.39+8%
66%
Similarity
£137.66
BMS
8S215
8"
Xmax4.3mm+21%
Qts0.31-3%
BL13.6Tm+11%
Vas11L-39%
Qes0.33-8%
63%
Similarity
Monacor
SP-308CX
8"
Xmax2.5mm-29%
Qts0.36+12%
BL12.1Tm-2%
Vas15.4L-15%
Qes0.43+19%
63%
Similarity
PRV Audio
8MR600X-NDY
8"
Xmax3.8mm+7%
Qts0.29-9%
BL15.2Tm+23%
Vas12.6L-31%
Qes0.3-17%
