Overview
LF Driver
Sica

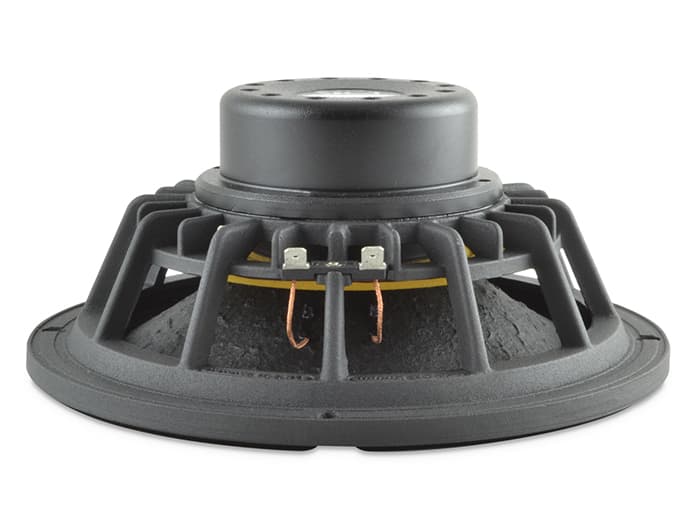

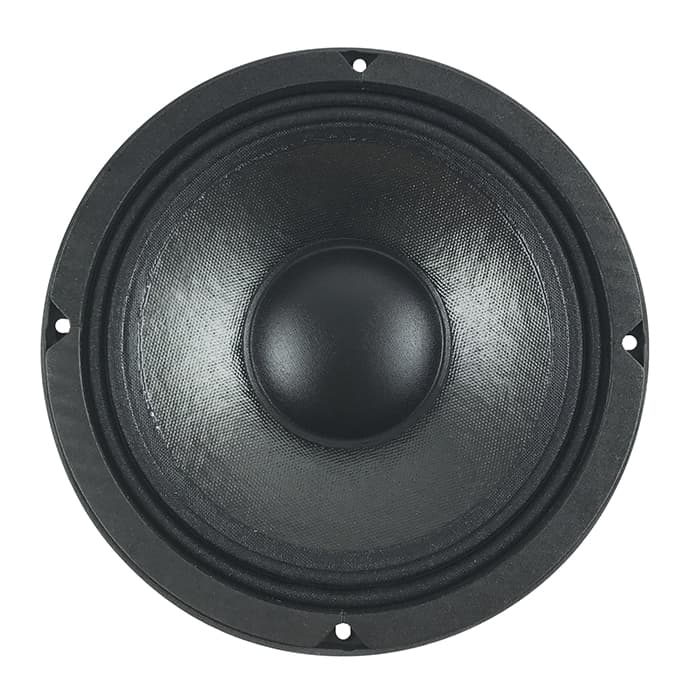

Sica 8 N 2.5 PL
Sica 8 N 2.5 PL is a 8" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 77Hz, Qts 0.30, Vas 13.7L, Xmax 3.5mm, sensitivity 94.8dB, plus 75cm³ Vd and 233 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.8dB
96.4dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
233
Vented alignment
Vd
75cm³
T/S Parameters
Valid
Fs77Hz
Qts0.30
Qes0.33
Qms4.2
Vas13.7L
Re5.6Ω
Le0.37mH
BL12.9Tm
Sd214cm²
Mms20g
Xmax3.5mm
SPL95dB
Power300W
Impedance8Ω
Voice Coil65mm
Flux Density1.22T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.8kg
Diameter210.0mm
Overall Depth90.0mm
Cutout Diameter184.0mm
Bolt Circle Diameter196.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
8 N 2.5 PL
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
£125.67
PRV Audio
8MB700FT-NDY
8"
Xmax3.6mm+4%
Qts0.30%
BL12.8Tm-1%
Vas18.8L+37%
Qes0.330%
83%
Similarity
PRV Audio
8MB700FT
8"
Xmax3.5mm0%
Qts0.31+3%
BL12.3Tm-5%
Vas20L+46%
Qes0.330%
82%
Similarity
£171.89
BMS
8N515
8"
Xmax4mm+14%
Qts0.30%
BL13.8Tm+7%
Vas11L-19%
Qes0.32-3%
81%
Similarity
Jensen
BP8150-8
8"
Xmax3.1mm-11%
Qts0.33+10%
BL13.3Tm+3%
Vas13.1L-4%
Qes0.36+9%
80%
Similarity
Sica
8 L 2 SL
8"
Xmax3.5mm0%
Qts0.32+7%
BL12.3Tm-5%
Vas18.2L+33%
Qes0.36+9%
80%
Similarity
Sica
8 FE 2.5 CP
8"
Xmax4mm+14%
Qts0.28-7%
BL13Tm0%
Vas15.6L+14%
Qes0.3-9%
79%
Similarity
PRV Audio
8MR600X-NDY
8"
Xmax3.8mm+7%
Qts0.29-3%
BL15.2Tm+17%
Vas12.6L-8%
Qes0.3-9%
78%
Similarity
£139.00
Celestion
FTX0820
8"
Xmax4mm+14%
Qts0.28-7%
BL14.6Tm+12%
Vas13.1L-4%
Qes0.31-6%
78%
Similarity
£137.66
BMS
8S215
8"
Xmax4.3mm+21%
Qts0.31+3%
BL13.6Tm+5%
Vas11L-19%
Qes0.330%
78%
Similarity
Monacor
FTX0820/8
8"
Xmax4mm+14%
Qts0.28-7%
BL14.6Tm+12%
Vas13.1L-4%
Qes0.31-6%
77%
Similarity
CIARE
FXI8
8"
Xmax4.5mm+29%
Qts0.29-3%
BL13.3Tm+3%
Vas13L-5%
Qes0.32-3%
77%
Similarity
£262.59
BMS
8CN552
8"
Xmax4mm+14%
Qts0.29-3%
BL13.4Tm+4%
Vas10.1L-26%
Qes0.3-9%
