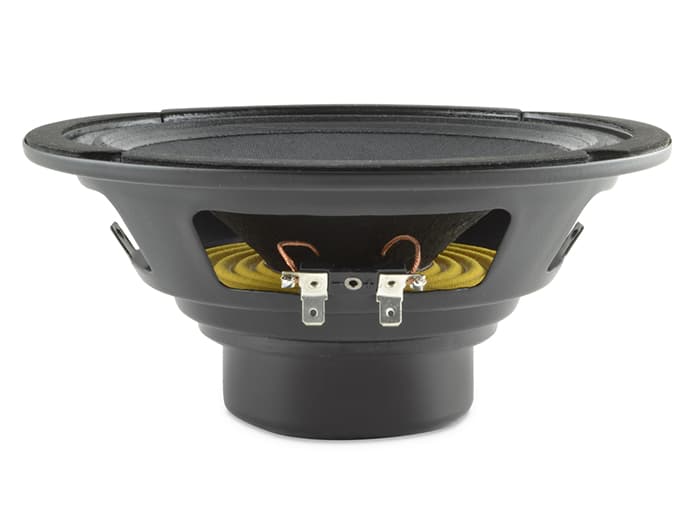

8-inch LF driver · 200 W

Dayton Audio 8MB200N-8 8Ω

Name: Dayton Audio 8MB200N-8 8 Ohm
Brand: Dayton Audio
SKU: 8MB200N-8

8 Ω · 75–5800 Hz

No current price

All 1 offer

Open in 00 Simulator

Fs: 94Hz
Xmax: 3.9mm
SPL: 95dB
Pe: 200W
BL: 14.4T·m
Vd: 79cm³
Qts: 0.32
Vas: 9L

See all 24 specs

Curve provenanceInspect 4 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

15 degrees
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence1,286 selected pixels of 1,792
Manufacturer datasheet, page 1
30 degrees
Frequency response
Trace datasheet-response-trace-poc/v1
212 plotted pointsMedium confidence489 selected pixels of 1,646
Manufacturer datasheet, page 1
45 degrees
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence2,130 selected pixels of 2,130
Manufacturer datasheet, page 1
on-axis
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence2,169 selected pixels of 2,169
Manufacturer datasheet, page 1

Specifications

Published by Dayton Audio

Manufacturer page

Datasheet PDF

Dayton Audio 8MB200N-8 is an 8-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 94 Hz, Qts 0.32, Vas 8.8 L, Xmax 3.9 mm, sensitivity 95.2 dB, plus 79 cm³ Vd and 269 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 94Hz
Qts: 0.32
Qes: 0.35
Qms: 4.4
Vas: 8.8L
Re: 6Ω
Le: 0.17mH

Motor and cone

BL: 14.4T·m
Sd: 201cm²
Mms: 21g
Xmax: 3.9mm
Vd †: 79cm³

Power and response

Sensitivity †: 95.2dB
Manufacturer sensitivity: 95.5dB
Power: 200W
Impedance: 8Ω
Range: 75–5800Hz
EBP †: 269 · Leans vented

Size and mounting

Diameter: 210mm
Cutout: 182mm
Depth: 86.5mm
Weight: 2.4kg

Other published values

Cms: 0.14mm/N
Power Peak: 400

† Calculated by bits from the published values

What this validation status means

Everything else Dayton Audio lists

LF · Primary · 8″

BL: 14.4T·m
Fs: 94Hz
Le: 0.17mH
Re: 6Ω
Sd: 201cm²
Cms: 0.14mm/N
Mms: 21g
Qes: 0.35
Qms: 4.4
Qts: 0.32
SPL: 95.2dB
Vas: 8.8L
Xmax: 3.9mm
Power: 200W
Impedance: 8Ω
Power Peak: 400
Sensitivity: 95.5dB
Low limit: 75Hz
Calculated sensitivity †: 95.2dB
High limit: 5800Hz
Manufacturer sensitivity: 95.5dB
Weight: 2.4kg
Diameter: 210mm
Depth: 86.5mm
Cutout: 182mm

Compare

Same-size drivers, compared with the 8MB200N-8. Clear differences are green when better and red when worse.

This driver8MB200N-8

Best price

–

94 Hz

Qts

0.32

Vas

8.8 L

14.4 T·m

Xmax

3.9 mm

Sensitivity

95.2 dB

Power

200 W

FaitalPRO8PR155

£64.86

Fs85 Hz −10%

Qts0.37 +16%

Vas9.4 L +7%

BL13.4 T·m −7%

Xmax3.6 mm −9%

Sensitivity93.7 dB −1.5

CIAREFXI8

£68.98

Fs81 Hz −14%

Qts0.29 −9%

Vas13 L +48%

BL13.3 T·m −8%

Xmax4.5 mm +15%

Sensitivity95.4 dB –

Sica8 C 2 CP

£93.83

Fs79 Hz −16%

Qts0.30 −6%

Vas14.7 L +67%

BL13.5 T·m −6%

Xmax3.5 mm −10%

Sensitivity95.5 dB –

CIARENDI8

£105.27

Fs81 Hz −14%

Qts0.33 +3%

Vas13 L +48%

BL12.8 T·m −11%

Xmax4.5 mm +15%

Sensitivity94.9 dB –

Sica8 FE 2 CP

£106.68

Fs67 Hz −29%

Qts0.32 –

Vas16.9 L +92%

BL12.3 T·m −15%

Xmax4.5 mm +15%

Sensitivity93.4 dB −1.8

PRV Audio8MB700FT-NDY

£128.39

Fs70 Hz −26%

Qts0.30 −6%

Vas18.8 L +114%

BL12.8 T·m −11%

Xmax3.6 mm −7%

Sensitivity94.9 dB –

LavoceWAN082.01

£129.51

Fs85 Hz −10%

Qts0.32 –

Vas9 L –

BL14.4 T·m –

Xmax5.8 mm +48%

Sensitivity94 dB −1.2

BMS8S215

£137.66

Fs88 Hz −7%

Qts0.31 −3%

Vas11.0 L +25%

BL13.6 T·m −6%

Xmax4.3 mm +9%

Sensitivity95.6 dB –

CelestionFTX0820

£139.00

Fs79 Hz −16%

Qts0.28 −13%

Vas13.1 L +49%

BL14.6 T·m –

Xmax4 mm –

Sensitivity95.2 dB –

MonacorFTX0820/8

£164.34

Fs79 Hz −16%

Qts0.28 −13%

Vas13.1 L +49%

BL14.6 T·m –

Xmax4 mm –

Sensitivity95.2 dB –

BMS8N515

£171.89

Fs88 Hz −7%

Qts0.30 −6%

Vas11.0 L +25%

BL13.8 T·m −4%

Xmax4 mm –

Sensitivity95.7 dB +0.5

VoltBM228.8

£249.12

Fs35 Hz −63%

Qts0.35 +9%

Vas32 L +264%

BL11.7 T·m −19%

Xmax4 mm –

Sensitivity87.6 dB −7.6

BMS8CN552

£262.59

Fs88 Hz −7%

Qts0.29 −9%

Vas10.1 L +15%

BL13.4 T·m −7%

Xmax4 mm –

Sensitivity95.6 dB –

REDCATT81XR

£290.19

Fs73 Hz −22%

Qts0.30 −6%

Vas7.2 L −18%

BL16 T·m +11%

Xmax6.3 mm +62%

Sensitivity90.8 dB −4.4

Eighteen Sound8MB710

No current price

Fs108 Hz +15%

Qts0.32 –

Vas9 L –

BL13.4 T·m −7%

Xmax2.3 mm −42%

Sensitivity97.1 dB +1.9

Eighteen Sound8MB720

No current price

Fs108 Hz +15%

Qts0.32 –

Vas9 L –

BL13.4 T·m −7%

Xmax2.3 mm −42%

Sensitivity97.1 dB +1.9

REDCATT8NPM

No current price

Fs79 Hz −16%

Qts0.29 −9%

Vas10.9 L +24%

BL14.2 T·m –

Xmax3.7 mm −5%

Sensitivity94.4 dB −0.8

No photo

PHL Audio2520

No current price

Fs109 Hz +16%

Qts0.33 +3%

Vas9 L –

BL14.3 T·m –

Xmax2 mm −49%

Sensitivity97 dB +1.8

P.Audio8NX-65MB

No current price

Fs80 Hz −15%

Qts0.29 −9%

Vas8.2 L −7%

BL18 T·m +25%

Xmax3.8 mm −4%

Sensitivity93.3 dB −1.9

B&C8CXN64

No current price

Fs71 Hz −24%

Qts0.33 +3%

Vas10.5 L +19%

BL15.5 T·m +8%

Xmax5.5 mm +41%

Sensitivity92.3 dB −2.9

PRV Audio8MR600X-NDY

No current price

Fs88 Hz −7%

Qts0.29 −9%

Vas12.6 L +43%

BL15.2 T·m +5%

Xmax3.8 mm −4%

Sensitivity96.5 dB +1.3

Sica8 L 2 SL

No current price

Fs64 Hz −32%

Qts0.32 –

Vas18.2 L +107%

BL12.3 T·m −15%

Xmax3.5 mm −10%

Sensitivity93.3 dB −1.9

Beyma8CFX260ND

No current price

Fs100 Hz +6%

Qts0.35 +9%

Vas8 L −9%

BL13.5 T·m −6%

Xmax6 mm +53%

Sensitivity95.4 dB –

JensenBP8150-8

No current price

Fs75 Hz −21%

Qts0.33 +3%

Vas13.1 L +49%

BL13.3 T·m −8%

Xmax3.1 mm −21%

Sensitivity93.8 dB −1.4

REDCATT81NPM-1

No current price

Fs72 Hz −23%

Qts0.33 +3%

Vas10.3 L +17%

BL16.7 T·m +16%

Xmax6 mm +53%

Sensitivity92.6 dB −2.6

Sica8 N 2.5 PL

No current price

Fs77 Hz −18%

Qts0.30 −6%

Vas13.7 L +56%

BL12.9 T·m −10%

Xmax3.5 mm −10%

Sensitivity94.8 dB –

PRV Audio8MB700FT

No current price

Fs72 Hz −23%

Qts0.31 −3%

Vas20 L +127%

BL12.3 T·m −15%

Xmax3.5 mm −10%

Sensitivity95.6 dB –

No photo

PHL Audio2520NDM

No current price

Fs110 Hz +17%

Qts0.37 +16%

Vas8.6 L –

BL14.2 T·m –

Xmax2 mm −49%

Sensitivity96.6 dB +1.4

Oberton8NM201

No current price

Fs103 Hz +9%

Qts0.29 −11%

Vas8.1 L −8%

BL13.7 T·m −5%

Xmax2.8 mm −30%

Sensitivity96.8 dB +1.6

Tang BandW8-1363SB

No current price

Fs30 Hz −68%

Qts0.32 –

Vas15.4 L +75%

BL13.9 T·m −3%

Xmax12 mm +207%

Sensitivity82.8 dB −12.4

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

UK shops, including VAT. How prices work

Watch price

Shop	Price	Against the lowest	Stock	Link
SoundImports Checked 2 Oct 2026 · 8 Ω · Source: inc VAT	£187.78		Back order	Visit shop at SoundImports
