Overview
LF DriverBM series
Volt
Volt BM228.8
Volt BM228.8 is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 35Hz, Qts 0.35, Vas 32L, Xmax 4mm, sensitivity 87.6dB, plus 86cm³ Vd and 92 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £249.12.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
87.6dB
89.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
92
Either alignment
Vd
86cm³
T/S Parameters
Valid
Fs35Hz
Qts0.35
Qes0.38
Qms5.8
Vas32.0L
Re5.8Ω
Le1.26mH
BL11.7Tm
Sd214cm²
Mms40g
Xmax4.0mm
SPL88dB
Power150W
Impedance8Ω
F Low30Hz
F High3000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£249.12
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

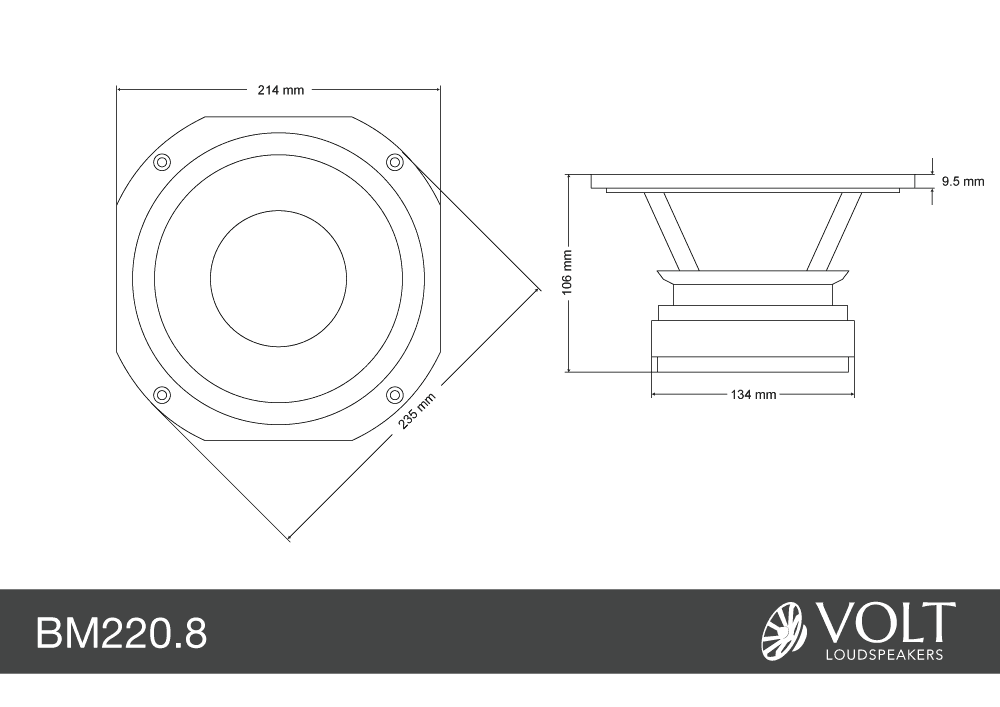

Dimensions & Physical
Weight4.1kg
Diameter235.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Volt
BM228.8
8"
Best current price
£249.12
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
47%
Similarity
89% cheaper£27.70
Dayton Audio
DC200-8
8"
Lower price
Xmax4.5mm+13%
Qts0.42+20%
BL9.5Tm-19%
Vas45.7L+43%
Qes0.49+29%
63%
Similarity
86% cheaper£34.02
Lavoce
WSF081.82
8"
Lower price
Xmax4.6mm+15%
Qts0.38+9%
BL11.3Tm-4%
Vas14.3L-55%
Qes0.43+13%
61%
Similarity
76% cheaper£59.70
Celestion
TRUVOX 0820
8"
Lower price
Xmax5mm+25%
Qts0.39+11%
BL11.5Tm-2%
Vas17.3L-46%
Qes0.42+10%
60%
Similarity
71% cheaper£71.54
Eminence
BETA-8A
8"
Lower price
Xmax3mm-25%
Qts0.38+9%
BL9.6Tm-18%
Vas23.3L-27%
Qes0.42+11%
59%
Similarity
71% cheaper£71.54
Eminence
BETA 8CX
8"
Lower price
Xmax3.2mm-20%
Qts0.29-17%
BL11.2Tm-4%
Vas21.4L-33%
Qes0.31-18%
61%
Similarity
59% cheaper£102.78
B&C
8PS21
8"
Lower price
Xmax5mm+25%
Qts0.33-6%
BL12.6Tm+8%
Vas14L-56%
Qes0.36-5%
64%
Similarity
49% cheaper£127.25
PRV Audio
8MB700FT-NDY
8"
Lower price
Xmax3.6mm-9%
Qts0.3-14%
BL12.8Tm+9%
Vas18.8L-41%
Qes0.33-13%
54%
Similarity
46% cheaper£135.13
FaitalPRO
8HX150
8"
Lower price
Xmax4.9mm+23%
Qts0.41+17%
BL11.6Tm-1%
Vas13L-59%
Qes0.43+13%
51%
Similarity
44% cheaper£139.00
Celestion
FTX0820
8"
Lower price
Xmax4mm0%
Qts0.28-20%
BL14.6Tm+24%
Vas13.1L-59%
Qes0.31-18%
51%
Similarity
43% cheaper£141.55
Lavoce
CSF082.00K
8"
Lower price
Xmax5mm+25%
Qts0.4+14%
BL11Tm-6%
Vas14.8L-54%
Qes0.45+18%
45%
Similarity
12% cheaper£219.76
FaitalPRO
8HX200
8"
Lower price
Xmax4.9mm+23%
Qts0.3-14%
BL13.8Tm+18%
Vas13.1L-59%
Qes0.31-18%
46%
Similarity
46% more£364.95
Accuton
C173-6-191
7"
Higher price
Xmax5mm+25%
Qts0.34-3%
BL8.8Tm-25%
Vas21.6L-32%
Qes0.37-3%
