Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF Driver
PRV Audio
PRV Audio 8MB700FT
PRV Audio 8MB700FT is a 8" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 72Hz, Qts 0.31, Vas 20L, Xmax 3.5mm, sensitivity 95.6dB, plus 87cm³ Vd and 219 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
350W
Sensitivity
95.6dB
97.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
219
Vented alignment
Vd
87cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs72Hz
Qts0.31
Qes0.33
Qms6.0
Vas20.0L
Re5.2Ω
Le0.46mH
BL12.3Tm
Sd249cm²
Mms21g
Xmax3.5mm
SPL96dB
Power350W
Impedance8Ω
F Low80Hz
F High5600Hz
Xover95Hz
Voice Coil51mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.1kg
Diameter208.5mm
Overall Depth101.5mm
Cutout Diameter185.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
8MB700FT
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
92%
Similarity
£127.25
PRV Audio
8MB700FT-NDY
8"
Xmax3.6mm+4%
Qts0.3-3%
BL12.8Tm+4%
Vas18.8L-6%
Qes0.330%
91%
Similarity
Sica
8 L 2 SL
8"
Xmax3.5mm0%
Qts0.32+3%
BL12.3Tm0%
Vas18.2L-9%
Qes0.36+9%
86%
Similarity
Sica
8 N 2.5 PL
8"
Xmax3.5mm0%
Qts0.3-3%
BL12.9Tm+6%
Vas13.7L-32%
Qes0.330%
83%
Similarity
£71.54

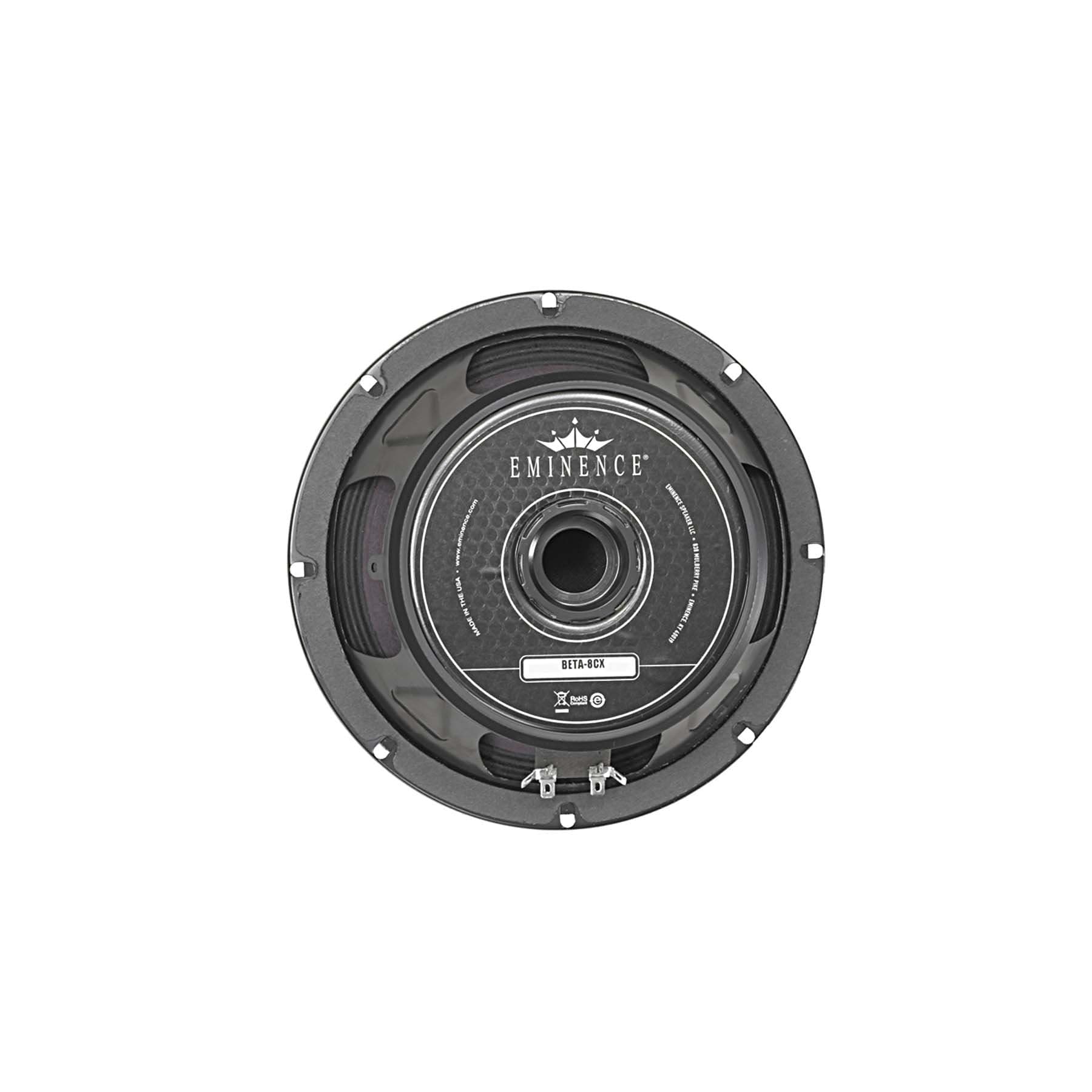

Eminence
BETA 8CX
8"
Xmax3.2mm-9%
Qts0.29-6%
BL11.2Tm-8%
Vas21.4L+7%
Qes0.31-6%
72%
Similarity
Sica
8 FE 2.5 CP
8"
Xmax4mm+14%
Qts0.28-10%
BL13Tm+6%
Vas15.6L-22%
Qes0.3-9%
72%
Similarity
Sica
8 FE 2 CP
8"
Xmax4.5mm+29%
Qts0.32+3%
BL12.3Tm0%
Vas16.9L-16%
Qes0.37+12%
70%
Similarity
£137.66
BMS
8S215
8"
Xmax4.3mm+21%
Qts0.310%
BL13.6Tm+11%
Vas11L-45%
Qes0.330%
66%
Similarity
PRV Audio
8MR600X-NDY
8"
Xmax3.8mm+7%
Qts0.29-6%
BL15.2Tm+24%
Vas12.6L-37%
Qes0.3-9%
64%
Similarity
Dayton Audio
APOLLO 8N
8"
Xmax3.9mm+12%
Qts0.32+3%
BL14.4Tm+18%
Vas8.8L-56%
Qes0.35+6%
64%
Similarity
CIARE
FXI8
8"
Xmax4.5mm+29%
Qts0.29-6%
BL13.3Tm+9%
Vas13L-35%
Qes0.32-3%
64%
Similarity
£139.00
Celestion
FTX0820
8"
Xmax4mm+14%
Qts0.28-10%
BL14.6Tm+19%
Vas13.1L-34%
Qes0.31-6%
64%
Similarity
Monacor
FTX0820/8
8"
Xmax4mm+14%
Qts0.28-10%
BL14.6Tm+19%
Vas13.1L-34%
Qes0.31-6%
