Overview
LF DriverSPH series
Monacor
Monacor SPH-225C
Monacor SPH-225C is a 8" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 39Hz, Qts 0.30, Vas 24L, Xmax 6mm, sensitivity 88.6dB, plus 121cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
120W
Sensitivity
88.6dB
90.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
126
Vented alignment
Vd
121cm³
T/S Parameters
Valid
Fs39Hz
Qts0.30
Qes0.31
Qms4.9
Vas24.0L
Re5.9Ω
Le0.80mH
BL13.2Tm
Sd201cm²
Mms37g
Xmax6.0mm
SPL89dB
Power120W
Impedance8Ω
F Low3Hz
F High3000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

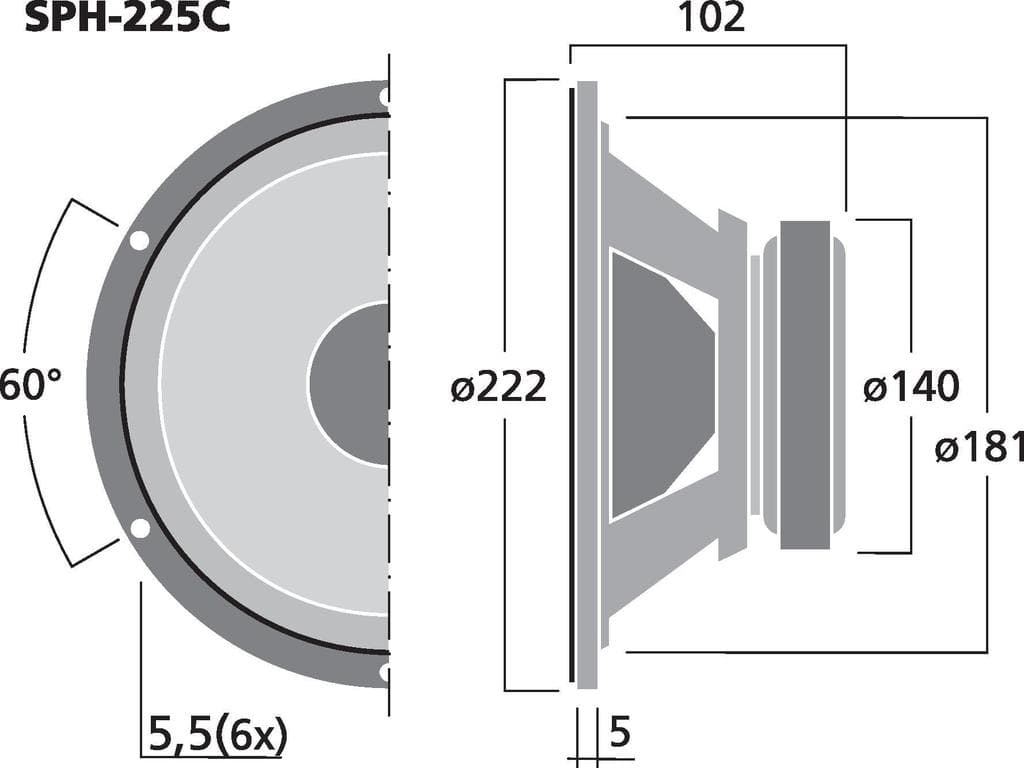

Dimensions & Physical
Weight3.5kg
Diameter222.0mm
Overall Depth102.0mm
Cutout Diameter181.0mm
