8-inch LF driver · 65 mm voice coil · 300 W

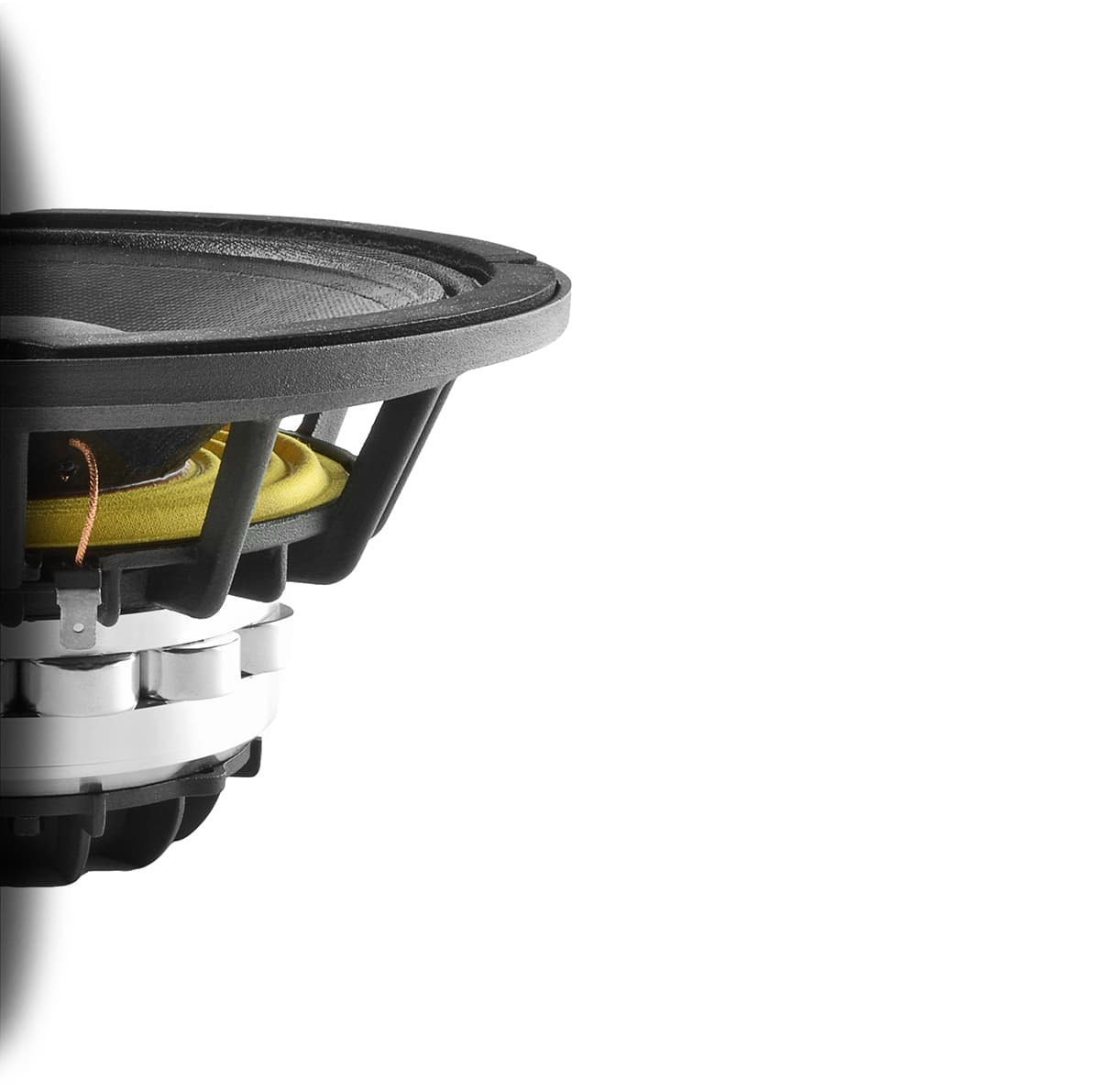

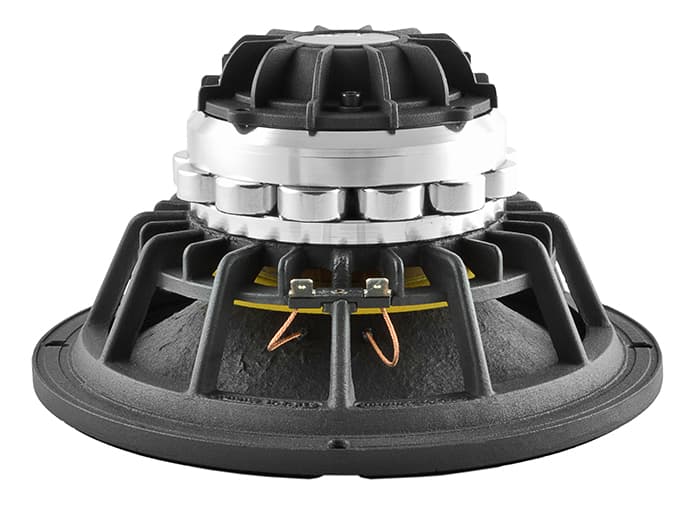

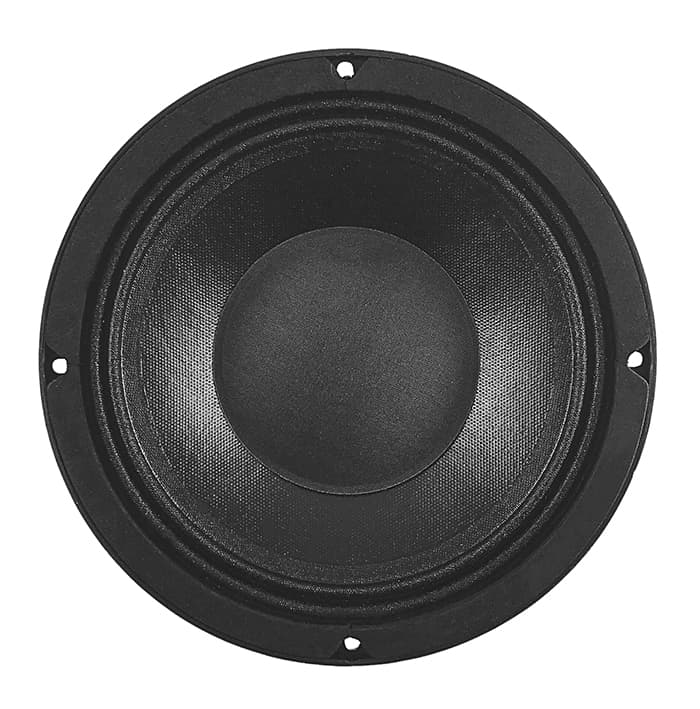

Sica 8 CX 2.5 PL P 8Ω

Name: Sica 8 CX 2.5 PL P 8 Ohm
Brand: Sica
SKU: 8 CX 2.5 PL P

8 Ω

No current price

View offers

Open in 00 Simulator

Fs: 74Hz
Xmax: 5mm
SPL: 95dB
Pe: 300W
BL: 12.3T·m
Vd: 107cm³
Qts: 0.28
Vas: 16L

See all 25 specs

Specifications

Published by Sica

Manufacturer page

Datasheet PDF

Sica 8 CX 2.5 PL P is an 8-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 74 Hz, Qts 0.28, Vas 16.2 L, Xmax 5 mm, sensitivity 95.1 dB, plus 107 cm³ Vd and 231 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 74Hz
Qts: 0.28
Qes: 0.32
Qms: 2.6
Vas: 16.2L
Re: 5.6Ω
Le: 0.60mH

Motor and cone

BL: 12.3T·m
Sd: 214cm²
Mms: 19g
Xmax: 5mm
Vd †: 107cm³
Voice coil: 65mm

Power and response

Sensitivity †: 95.1dB
Manufacturer sensitivity: 96.7dB
Power: 300W
Impedance: 8Ω
EBP †: 231 · Leans vented

Size and mounting

Diameter: 210mm
Cutout: 184mm
Bolt circle: 196mm
Depth: 111.6mm
Weight: 2.3kg

Other published values

Cms: 0.25mm/N
Power Program: 600

Sensitivity shows 95.1 dB, calculated from the T/S values. Sica publishes 96.7 dB, 1.6 dB apart.

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · LF · 8″

BL: 12.3T·m
Fs: 74Hz
Le: 0.60mH
Re: 5.6Ω
Sd: 214cm²
Cms: 0.25mm/N
Mms: 19g
Qes: 0.32
Qms: 2.6
Qts: 0.28
SPL: 95.1dB
Vas: 16.2L
Xmax: 5mm
Power: 300W
Impedance: 8Ω
Sensitivity: 96.7dB
Power Program: 600
Calculated sensitivity †: 95.1dB
Manufacturer sensitivity: 96.7dB
Voice coil: 65mm

HF · HF

Fs: 700Hz
Re: 6Ω
SPL: 101.3dB
Power: 60W
Impedance: 8Ω
Sensitivity: 101.3dB
Power Program: 120
Manufacturer sensitivity: 101.3dB
Voice coil: 44mm
Crossover: 1600Hz

Compare

Same-size drivers, compared with the 8 CX 2.5 PL P. Clear differences are green when better and red when worse.

This driver8 CX 2.5 PL P

Best price

–

74 Hz

Qts

0.28

Vas

16.2 L

12.3 T·m

Xmax

5 mm

Sensitivity

95.1 dB

Power

300 W

CIAREFXI8

£68.26

Fs81 Hz +9%

Qts0.29 +4%

Vas13 L −20%

BL13.3 T·m +8%

Xmax4.5 mm −10%

Sensitivity95.4 dB –

Beyma8WRS300

£75.85

Fs65 Hz −12%

Qts0.28 –

Vas15 L −7%

BL15.2 T·m +23%

Xmax6 mm +20%

Sensitivity93.4 dB −1.7

B&C8FMB51

£80.08

Fs67 Hz −9%

Qts0.28 –

Vas20.7 L +28%

BL11.3 T·m −8%

Xmax5.5 mm +10%

Sensitivity95.1 dB –

B&C8PS21

£80.44

Fs73 Hz –

Qts0.33 +18%

Vas14 L −14%

BL12.6 T·m –

Xmax5 mm –

Sensitivity93.8 dB −1.3

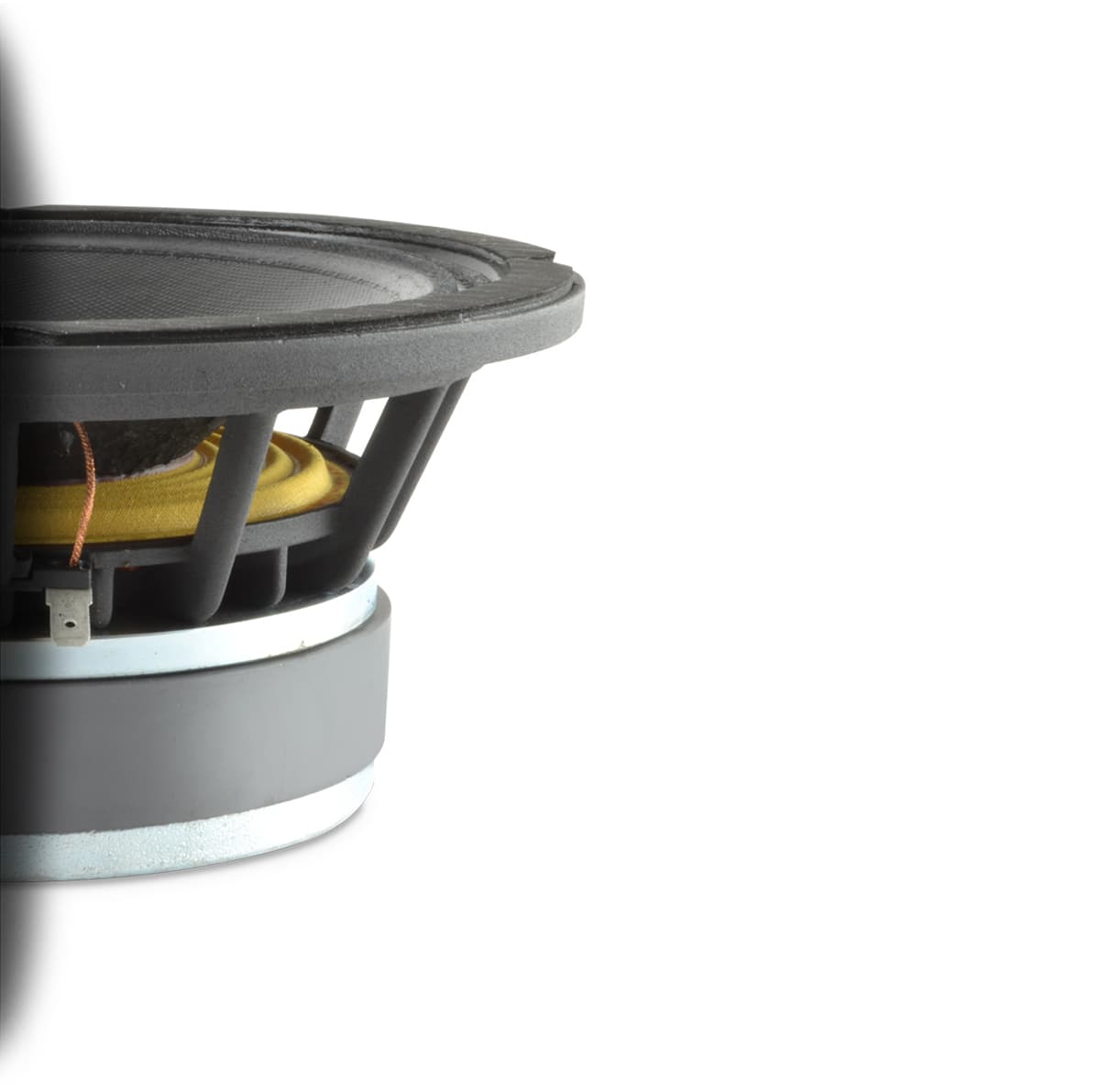

Sica8 S 2.5 CP
