Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespPHL Audio 2440 8Ω
LF DriverMedia
PHL Audio
2440
Image unavailable
Overview
LF Driver
PHL Audio
PHL Audio 2440
PHL Audio 2440 is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 77Hz, Qts 0.31, Vas 13.1L, Xmax 5mm, sensitivity 94.5dB, plus 110cm³ Vd and 226 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.5dB
EBP
226
Vented alignment
Vd
110cm³
T/S Parameters
Valid
Fs77Hz
Qts0.31
Qes0.34
Qms4.3
Vas13.1L
Re5.2Ω
Le0.75mH
BL12.8Tm
Sd219cm²
Mms22g
Xmax5.0mm
SPL95dB
Power200W
Power Nominal200W
Impedance8Ω
F Low80Hz
F High4000Hz
Voice Coil51mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.5kg
Diameter234.0mm
Overall Depth90.0mm
Cutout Diameter185.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
PHL Audio
2440
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£102.78
B&C
8PS21
8"
Xmax5mm0%
Qts0.33+6%
BL12.6Tm-2%
Vas14L+7%
Qes0.36+6%
90%
Similarity
£219.76
FaitalPRO
8HX200
8"
Xmax4.9mm-2%
Qts0.3-3%
BL13.8Tm+8%
Vas13.1L0%
Qes0.31-9%
88%
Similarity
CIARE
NDI8
8"
Xmax4.5mm-10%
Qts0.33+6%
BL12.8Tm0%
Vas13L-1%
Qes0.36+6%
Image unavailable
86%
Similarity
PHL Audio
2420
8"
Xmax5.5mm+10%
Qts0.33+6%
BL12.9Tm+1%
Vas13.3L+2%
Qes0.37+9%
86%
Similarity
CIARE
FXI8
8"
Xmax4.5mm-10%
Qts0.29-6%
BL13.3Tm+4%
Vas13L-1%
Qes0.32-6%
83%
Similarity
£137.66

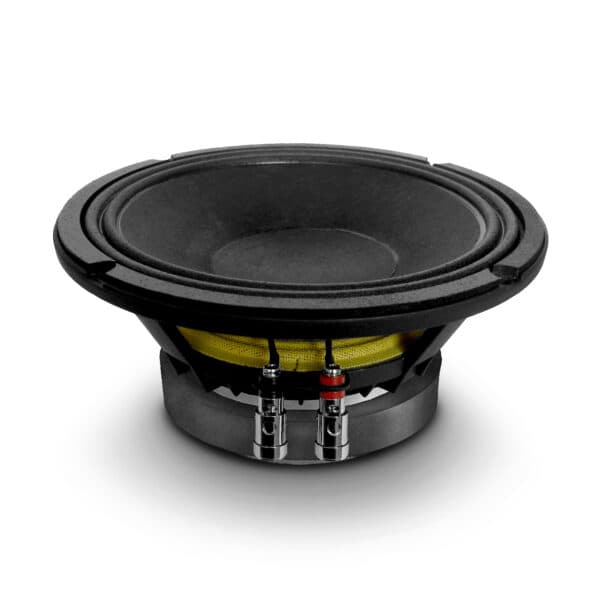

BMS
8S215
8"
Xmax4.3mm-15%
Qts0.310%
BL13.6Tm+6%
Vas11L-16%
Qes0.33-3%
79%
Similarity
£135.00
SB Audience
ROSSO-8CX250
8"
Xmax5.4mm+8%
Qts0.32+3%
BL11.4Tm-11%
Vas15.8L+21%
Qes0.37+9%
79%
Similarity
£107.39
Sica
8 FE 2 CP
8"
Xmax4.5mm-10%
Qts0.32+3%
BL12.3Tm-4%
Vas16.9L+29%
Qes0.37+9%
78%
Similarity
Sica
8 N 2.5 PL
8"
Xmax3.5mm-30%
Qts0.3-3%
BL12.9Tm+1%
Vas13.7L+5%
Qes0.33-3%
78%
Similarity
Jensen
BS8N250A-8
8"
Xmax5mm0%
Qts0.37+19%
BL12.8Tm0%
Vas14.9L+14%
Qes0.39+15%
77%
Similarity
£231.79
FaitalPRO
8HX240
8"
Xmax6.2mm+23%
Qts0.3-3%
BL13.8Tm+8%
Vas12.9L-2%
Qes0.31-9%
76%
Similarity
£171.89

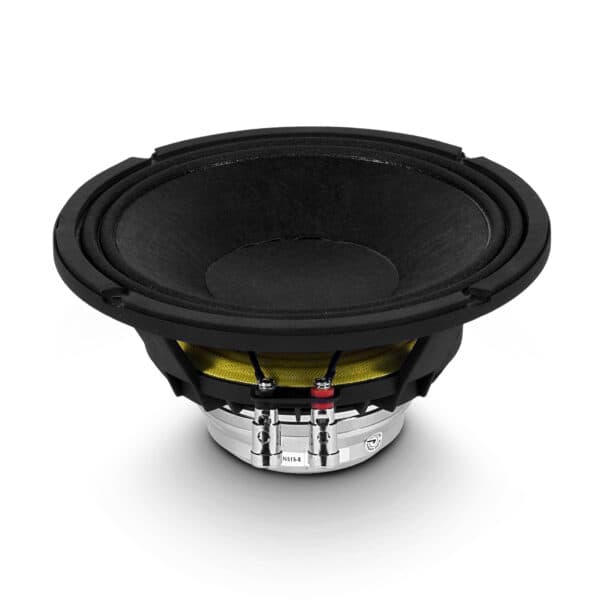

BMS
8N515
8"
Xmax4mm-20%
Qts0.3-3%
BL13.8Tm+8%
Vas11L-16%
Qes0.32-6%
