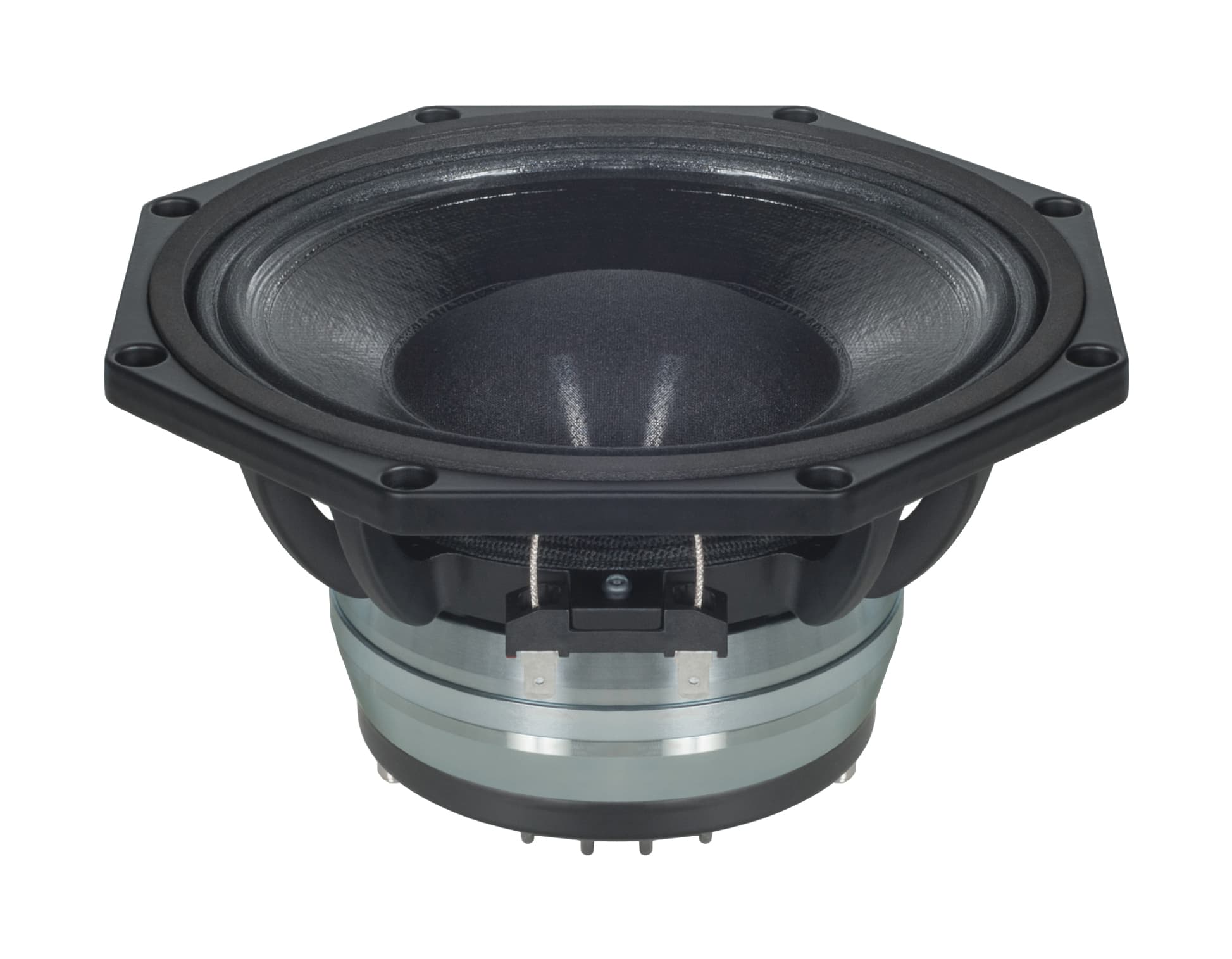

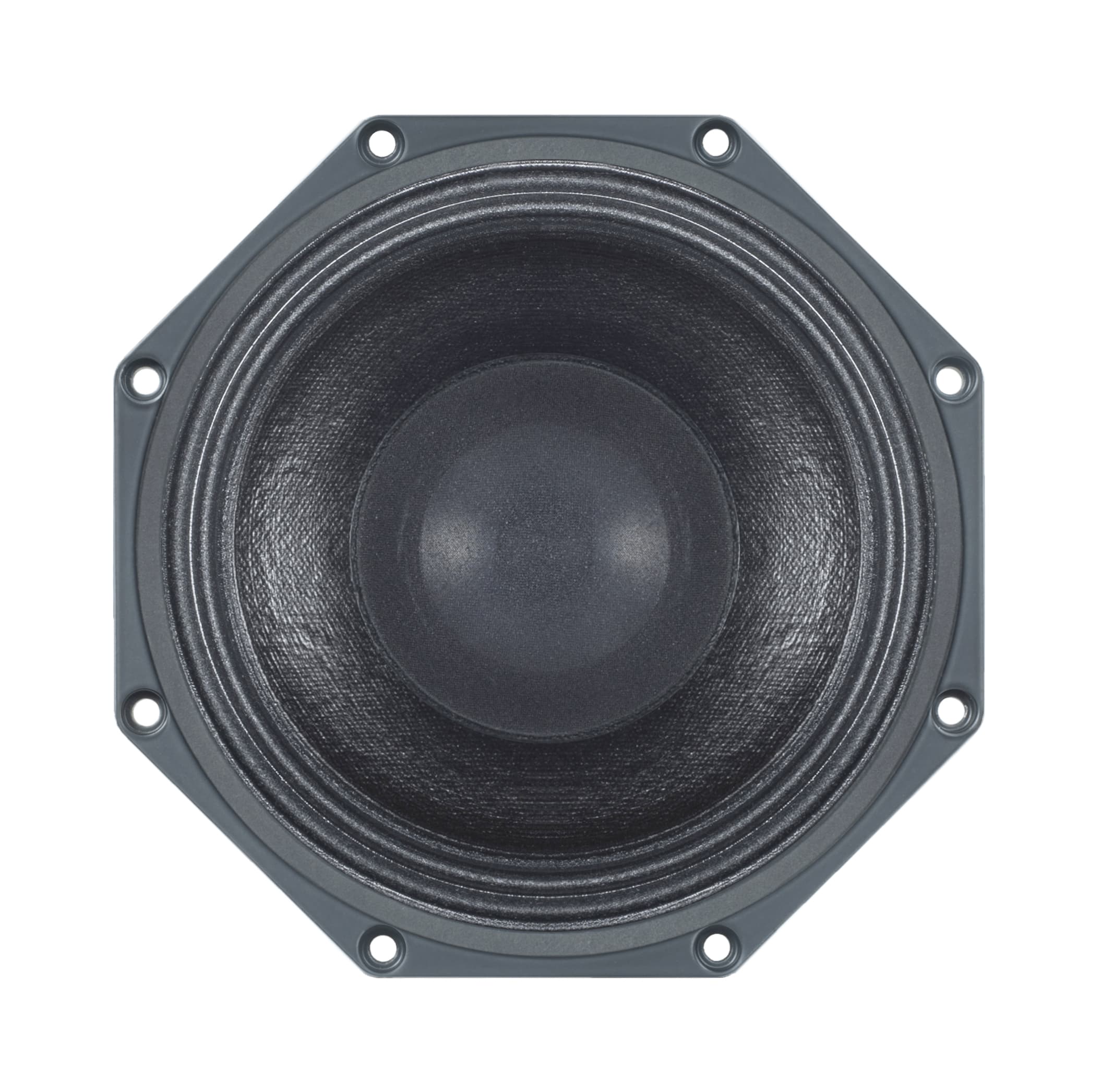

8-inch LF driver · 8CXN series · 64 mm voice coil · 300 W
B&C 8CXN64 8Ω
8 Ω · 1000–18000 Hz
No current price
- Fs
- 71Hz
- Xmax
- 5.5mm
- SPL
- 92dB
- Pe
- 300W
- BL
- 15.5T·m
- Vd
- 121cm³
- Qts
- 0.33
- Vas
- 11L

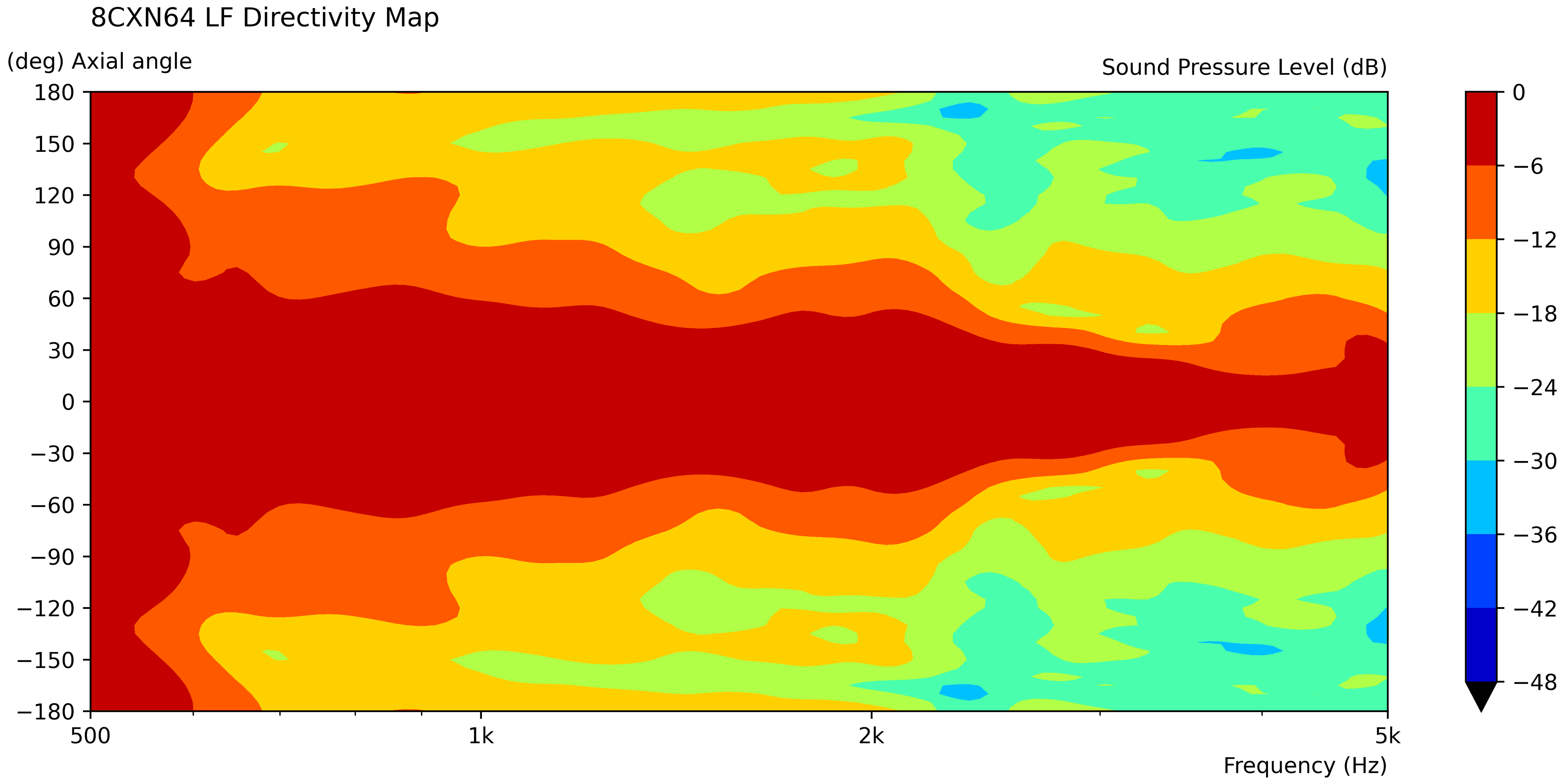

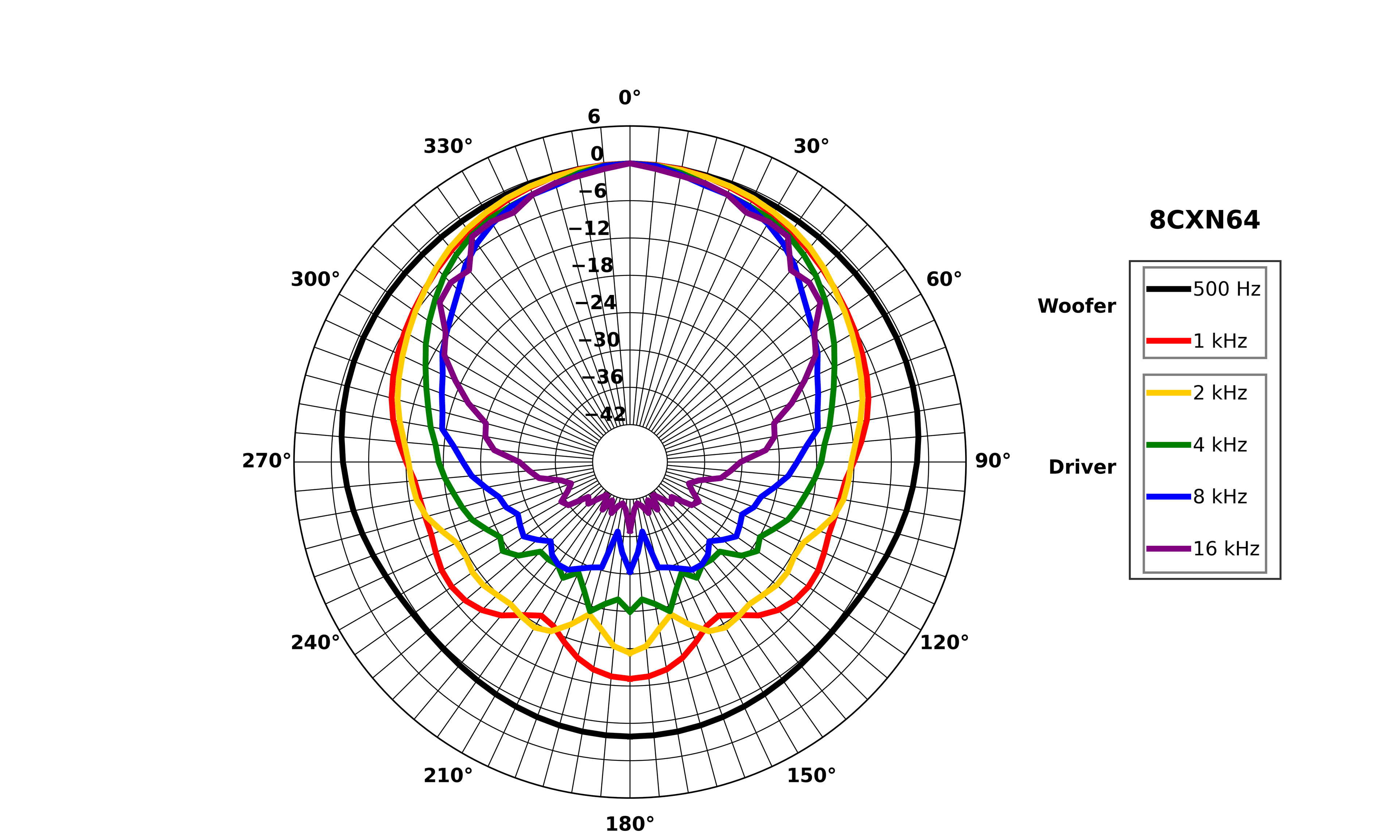

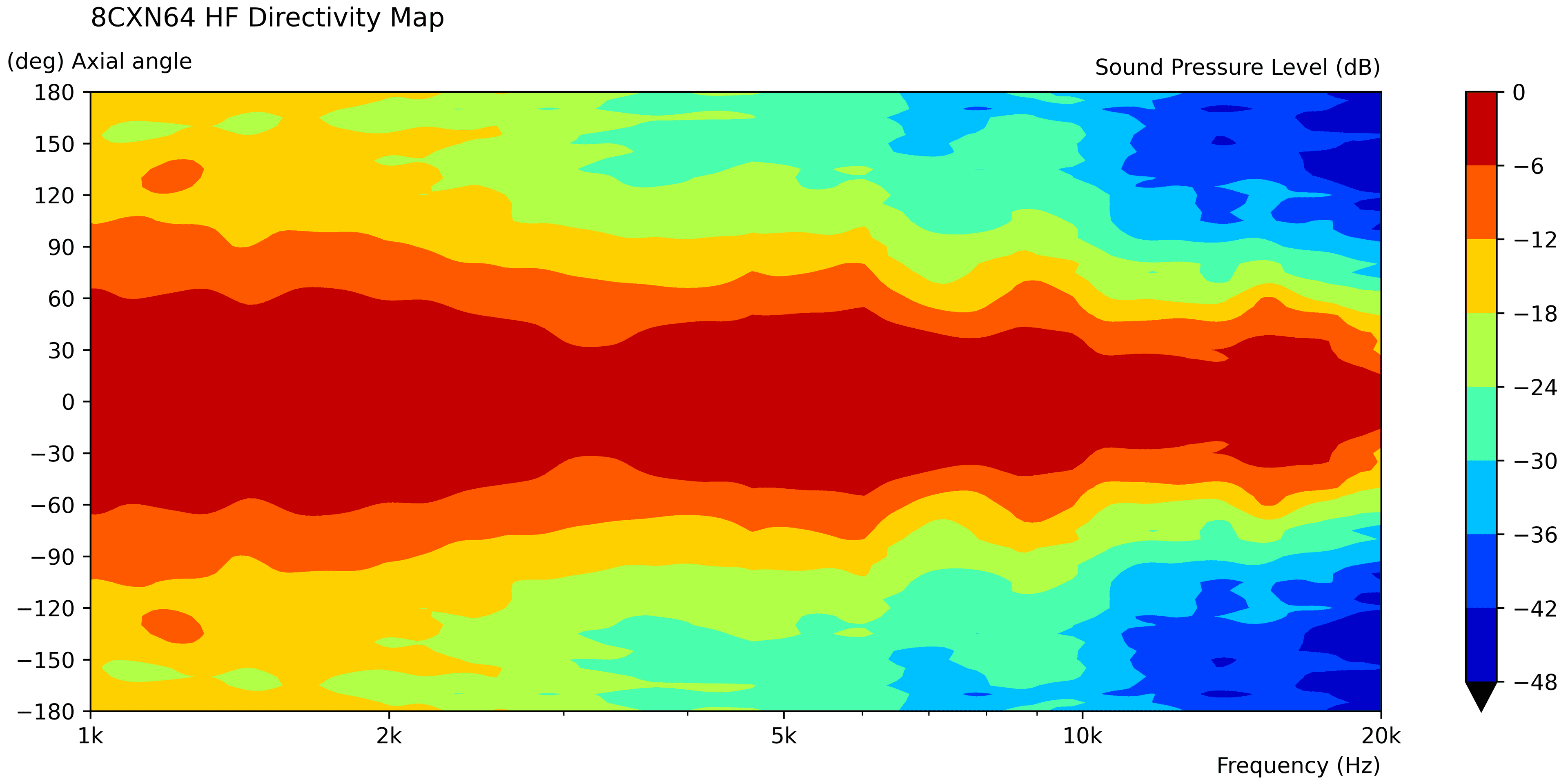

Published graphs
B&C 8CXN64 is an 8-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 71 Hz, Qts 0.33, Vas 10.5 L, Xmax 5.5 mm, sensitivity 92.3 dB, plus 121 cm³ Vd and 203 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 71Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 8.5
- Vas
- 10.5L
- Re
- 5.8Ω
- Le
- 1.10mH
Motor and cone
- BL
- 15.5T·m
- Sd
- 220cm²
- Mms
- 32g
- Xmax
- 5.5mm
- Vd †
- 121cm³
- Voice coil
- 64mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 92.3dB
- Manufacturer sensitivity
- 94dB
- Power
- 300W
- Nominal power
- 300W
- Impedance
- 8Ω
- Min. impedance
- 6.9Ω
- Range
- 1000–18000Hz
- EBP †
- 203 · Leans vented
Sensitivity shows 92.3 dB, calculated from the T/S values. B&C publishes 94.0 dB, 1.7 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 15.5T·m
- Fs
- 71Hz
- Le
- 1.10mH
- Re
- 5.8Ω
- Sd
- 220cm²
- Mms
- 32g
- Qes
- 0.35
- Qms
- 8.5
- Qts
- 0.33
- SPL
- 92.3dB
- Vas
- 10.5L
- Xmax
- 5.5mm
- Power
- 300W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Sensitivity
- 94dB
- Nominal power
- 300W
- Calculated sensitivity †
- 92.3dB
- Manufacturer sensitivity
- 94dB
- Min. impedance
- 6.9Ω
- Voice coil
- 64mm
- Bl
- 15.5 Tm
- Fs
- 71 Hz
- Le
- 1.1 mH
- Re
- 5.8 Ω
- Sd
- 220 cm² (34.1 in²)
- Ebp
- 203 Hz
- Mms
- 32 g
- Qes
- 0.35
- Qms
- 8.5
- Qts
- 0.33
- Vas
- 10.5 dm³ (0.37 ft³)
- Η0
- 1.1 %
- Xmax
- 5.5 mm
- Xvar
- 4.7 mm
- Sensitivity
- 94 dB
- Flux density
- 1.1 T
- Winding depth
- 15 mm (0.59 in)
- Former material
- Glass Fibre
- Nominal diameter
- 210 mm (8 in)
- Winding material
- Copper
- Minimum impedance
- 6.9 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Voice coil diameter
- 64 mm (2.5 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Nominal power handling
- 300 W
- Continuous power handling
- 600 W
HF · Specifications HF unit
- Le
- 0.15mH
- SPL
- 103dB
- Power
- 80W
- Impedance
- 8Ω
- Flux density
- 1.75T
- Sensitivity
- 103dB
- Low limit
- 1000Hz
- Nominal power
- 80W
- High limit
- 18000Hz
- Manufacturer sensitivity
- 103dB
- Min. impedance
- 7.1Ω
- Voice coil
- 65mm
- Crossover
- 1200Hz
- Inductance
- 0.15 mH
- Sensitivity
- 103 dB
- Flux density
- 1.75 T
- Frequency range
- 1 kHz - 18 kHz
- Winding material
- Aluminium
- Minimum impedance
- 7.1 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 65 mm (2.5 in)
- Recommended crossover
- 1.2 kHz
- Nominal power handling
- 80 W
- Continuous power handling
- 160 W
