CelestionTF0818
£55.00 · 33% less, betterFs100 Hz +35%, worse
Qts0.43 +13%, worse
Vas9.4 L −5%
BL12.9 T·m −22%, worse
Xmax5 mm −16%, worse
Sensitivity94.9 dB +2.9, better
8-inch LF driver · BIANCO series · 61 mm voice coil · 150 W
SB Audience BIANCO-8MWN150 8Ω
8 Ω · 74–6000 Hz
£81.76
SteadyLean Audio · 2 in stock · All 2 offers
- Fs
- 74Hz
- Xmax
- 6.0mm
- SPL
- 92dB
- Pe
- 150W
- BL
- 16.5T·m
- Vd
- 136cm³
- Qts
- 0.38
- Vas
- 10L
SB Audience BIANCO-8MWN150 is an 8-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 74 Hz, Qts 0.38, Vas 9.9 L, Xmax 6.0 mm, sensitivity 92 dB, plus 136 cm³ Vd and 185 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £81.76.
The published T/S values agree with each other
Thiele/Small
- Fs
- 74Hz
- Qts
- 0.38
- Qes
- 0.40
- Qms
- 9.0
- Vas
- 9.9L
- Re
- 6.8Ω
- Le
- 1.07mH
Motor and cone
- BL
- 16.5T·m
- Sd
- 227cm²
- Mms
- 34g
- Xmax
- 6.0mm
- Vd †
- 136cm³
- Voice coil
- 61mm
- Flux density
- 1.04T
Power and response
- Sensitivity †
- 92dB
- Manufacturer sensitivity
- 93dB
- Power
- 150W
- Impedance
- 8Ω
- Min. impedance
- 6.8Ω
- Range
- 74–6000Hz
- EBP †
- 185 · Leans vented

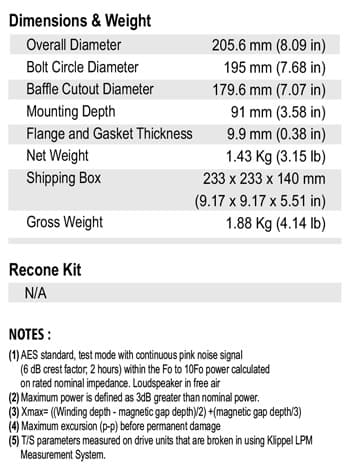

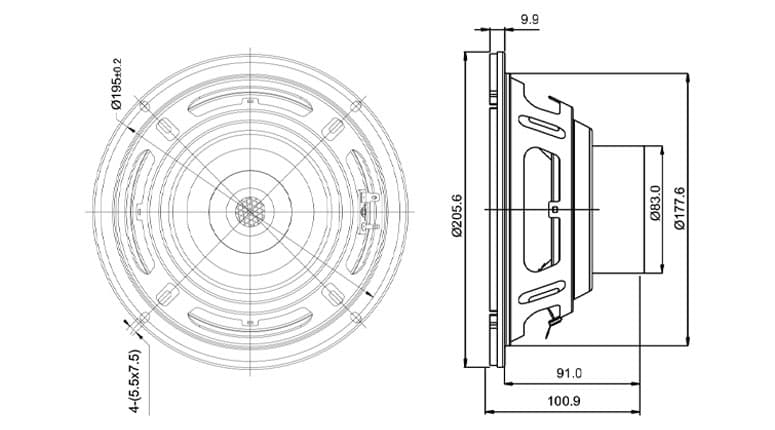

Size and mounting
- Diameter
- 205.6mm
- Cutout
- 179.6mm
- Bolt circle
- 195mm
- Weight
- 1.4kg
Other published values
- Cms
- 0.14mm/N
- Rms
- 1.76kg/s
- Power Program
- 300
Other dimensions
- Mounting Depth
- 91
Sensitivity shows 92.0 dB, calculated from the T/S values. SB Audience publishes 93.0 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else SB Audience lists
LF · Primary · 8″
- BL
- 16.5T·m
- Fs
- 74Hz
- Le
- 1.07mH
- Re
- 6.8Ω
- Sd
- 227cm²
- Cms
- 0.14mm/N
- Mms
- 34g
- Qes
- 0.40
- Qms
- 9.0
- Qts
- 0.38
- Rms
- 1.76kg/s
- SPL
- 92dB
- Vas
- 9.9L
- Xmax
- 6.0mm
- Power
- 150W
- Impedance
- 8Ω
- Flux density
- 1.04T
- Sensitivity
- 93dB
- Low limit
- 74Hz
- Power Program
- 300
- Calculated sensitivity †
- 92dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 93dB
- Min. impedance
- 6.8Ω
- Voice coil
- 61mm
- Weight
- 1.4kg
- Diameter
- 205.6mm
- Mounting Depth
- 91
- Cutout
- 179.6mm
- Bolt circle
- 195mm
02
Compare
Same-size drivers, compared with the BIANCO-8MWN150. Clear differences are green when better and red when worse.
This driverBIANCO-8MWN150
Best price
£81.76
Fs
74 Hz
Qts
0.38
Vas
9.9 L
BL
16.5 T·m
Xmax
6.0 mm
Sensitivity
92 dB
Power
150 W
FaitalPRO8PR155
£64.86 · 21% less, betterFs85 Hz +15%, worse
Qts0.37 –
Vas9.4 L −5%
BL13.4 T·m −19%, worse
Xmax3.6 mm −40%, worse
Sensitivity93.7 dB +1.7
REDCATT8FR
£66.69 · 18% less, betterFs53 Hz −28%, better
Qts0.38 –
Vas36.8 L +272%, worse
BL7.9 T·m −52%, worse
Xmax5.8 mm −3%
Sensitivity93.4 dB +1.4
LavoceWAF082.00
£71.42 · 13% less, betterFs78 Hz +5%
Qts0.37 –
Vas11.9 L +20%, worse
BL12.5 T·m −24%, worse
Xmax6.3 mm +5%
Sensitivity93.4 dB +1.4
CIAREPWA8.50
£77.72 · 5% lessFs74 Hz –
Qts0.38 –
Vas12 L +21%, worse
BL12.7 T·m −23%, worse
Xmax6.8 mm +14%, better
Sensitivity92.8 dB +0.8
LavoceSSF082.00L
£82.36 · Same priceFs50 Hz −32%, better
Qts0.44 +16%, worse
Vas10.1 L –
BL15.7 T·m −5%
Xmax9.2 mm +54%, better
Sensitivity86.4 dB −5.6, worse
B&C8CL51
£85.33 · 4% moreFs69 Hz −7%
Qts0.41 +8%
Vas12.5 L +26%, worse
BL12 T·m −27%, worse
Xmax6.5 mm +9%
Sensitivity91.7 dB –
B&C8NDL51
£90.48 · 11% more, worseFs66 Hz −11%, better
Qts0.37 –
Vas14 L +41%, worse
BL12.4 T·m −25%, worse
Xmax7 mm +17%, better
Sensitivity91.9 dB –
WavecorSW178WA01
£121.74 · 49% more, worseFs38 Hz −49%, better
Qts0.36 −4%
Vas12.2 L +23%, worse
BL12 T·m −27%, worse
Xmax5 mm −16%, worse
Sensitivity84.6 dB −7.4, worse
CelestionNTR08-2011D
£125.00 · 53% more, worseFs85 Hz +15%, worse
Qts0.44 +15%, worse
Vas10.3 L +4%
BL12.0 T·m −27%, worse
Xmax6 mm –
Sensitivity92.7 dB +0.7
LavoceWAN082.01
£128.16 · 57% more, worseFs85 Hz +15%, worse
Qts0.32 −16%, better
Vas9 L −9%
BL14.4 T·m −12%, worse
Xmax5.8 mm −3%
Sensitivity94 dB +2, better
B&C8CX21
£151.61 · 85% more, worseFs74 Hz –
Qts0.36 −5%
Vas15 L +52%, worse
BL11.5 T·m −30%, worse
Xmax5.5 mm −8%
Sensitivity94 dB +2, better
SB AudienceNERO-8MWN400D
£152.56 · 87% more, worseFs63 Hz −15%, better
Qts0.38 –
Vas13.9 L +40%, worse
BL11.9 T·m −28%, worse
Xmax6.7 mm +12%, better
Sensitivity91.3 dB −0.7
REDCATT81XR
£287.15 · 251% more, worseFs73 Hz –
Qts0.30 −21%, better
Vas7.2 L −27%, better
BL16 T·m −3%
Xmax6.3 mm +6%
Sensitivity90.8 dB −1.2
Eighteen Sound8CX650
£344.69 · 322% more, worseFs65 Hz −12%, better
Qts0.35 −8%
Vas16.6 L +68%, worse
BL12 T·m −27%, worse
Xmax6 mm –
Sensitivity92.9 dB +0.9
BMS8N519
No current priceFs75 Hz –
Qts0.37 –
Vas10.9 L +10%, worse
BL13.8 T·m −16%, worse
Xmax6.3 mm +5%
Sensitivity92.5 dB +0.5
REDCATT81NPM-1
No current priceFs72 Hz –
Qts0.33 −13%, better
Vas10.3 L +4%
BL16.7 T·m –
Xmax6 mm –
Sensitivity92.6 dB +0.6
CelestionCNX0820
No current priceFs95 Hz +28%, worse
Qts0.40 +4%
Vas9.9 L –
BL12.0 T·m −27%, worse
Xmax6 mm –
Sensitivity94.7 dB +2.7, better
Beyma8CFX260ND
No current priceFs100 Hz +35%, worse
Qts0.35 −8%
Vas8 L −19%, better
BL13.5 T·m −18%, worse
Xmax6 mm –
Sensitivity95.4 dB +3.4, better
B&C8CXN64
No current priceFs71 Hz −4%
Qts0.33 −13%, better
Vas10.5 L +6%
BL15.5 T·m −6%
Xmax5.5 mm −8%
Sensitivity92.3 dB –
BMS8S219
No current priceFs82 Hz +11%, worse
Qts0.41 +8%
Vas9.7 L –
BL13.3 T·m −19%, worse
Xmax6.3 mm +5%
Sensitivity92.8 dB +0.8
No photo
PHL Audio2520NDM
No current priceFs110 Hz +49%, worse
Qts0.37 –
Vas8.6 L −13%, better
BL14.2 T·m −14%, worse
Xmax2 mm −67%, worse
Sensitivity96.6 dB +4.6, better
No photo
PHL Audio2420
No current priceFs72 Hz –
Qts0.33 −13%, better
Vas13.3 L +34%, worse
BL12.9 T·m −22%, worse
Xmax5.5 mm −8%
Sensitivity93.3 dB +1.3
JensenBS8N250A-8
No current priceFs59 Hz −20%, better
Qts0.37 –
Vas14.9 L +51%, worse
BL12.8 T·m −22%, worse
Xmax5 mm −16%, worse
Sensitivity91 dB −1
MonacorFTR08-2011D/8
No current priceFs86 Hz +16%, worse
Qts0.43 +13%, worse
Vas9 L −9%
BL12.7 T·m −23%, worse
Xmax5.5 mm −8%
Sensitivity92.6 dB +0.6
No photo
PHL Audio2520
No current priceFs109 Hz +47%, worse
Qts0.33 −13%, better
Vas9 L −9%
BL14.3 T·m −13%, worse
Xmax2 mm −67%, worse
Sensitivity97 dB +5, better
RS SpeakersW 220.50 FIBONACCI
No current priceFs33 Hz −55%, better
Qts0.36 −5%
Vas55.6 L +462%, worse
BL8.6 T·m −48%, worse
Xmax6 mm –
Sensitivity89.3 dB −2.7, worse
Eighteen Sound8MB400
No current priceFs64 Hz −14%, better
Qts0.38 –
Vas23.9 L +141%, worse
BL9.3 T·m −44%, worse
Xmax5.8 mm −3%
Sensitivity93.7 dB +1.7
HiViSS8R
No current priceFs30 Hz −59%, better
Qts0.35 −8%
Vas92.9 L +838%, worse
BL6.6 T·m −60%, worse
Xmax6 mm –
Sensitivity90 dB −2, worse
CIARENDK8
No current priceFs57 Hz −23%, better
Qts0.40 +5%
Vas12.9 L +30%, worse
BL14.4 T·m −13%, worse
Xmax8.5 mm +42%, better
Sensitivity89.4 dB −2.6, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £81.76, the lowest price | 2 in stock | Visit shop at Lean Audio | |
SoundImports Import VAT and duty may apply | £109.78 | 34% above the lowest price | 2 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
