LF DriverTF0818 series
Celestion

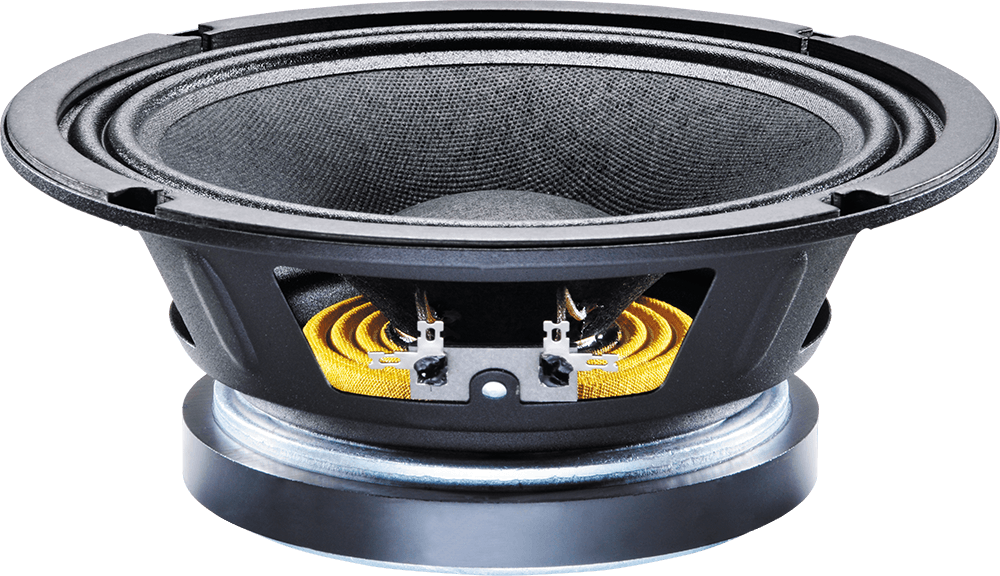

Celestion TF0818
Celestion TF0818 is a 8" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 100Hz, Qts 0.43, Vas 9.4L, Xmax 5mm, sensitivity 94.9dB, plus 113cm³ Vd and 203 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £50.00.
Size
8"
Impedance
8Ω
RMS Power
100W
Sensitivity
94.9dB
EBP
203
Vented alignment
Vd
113cm³

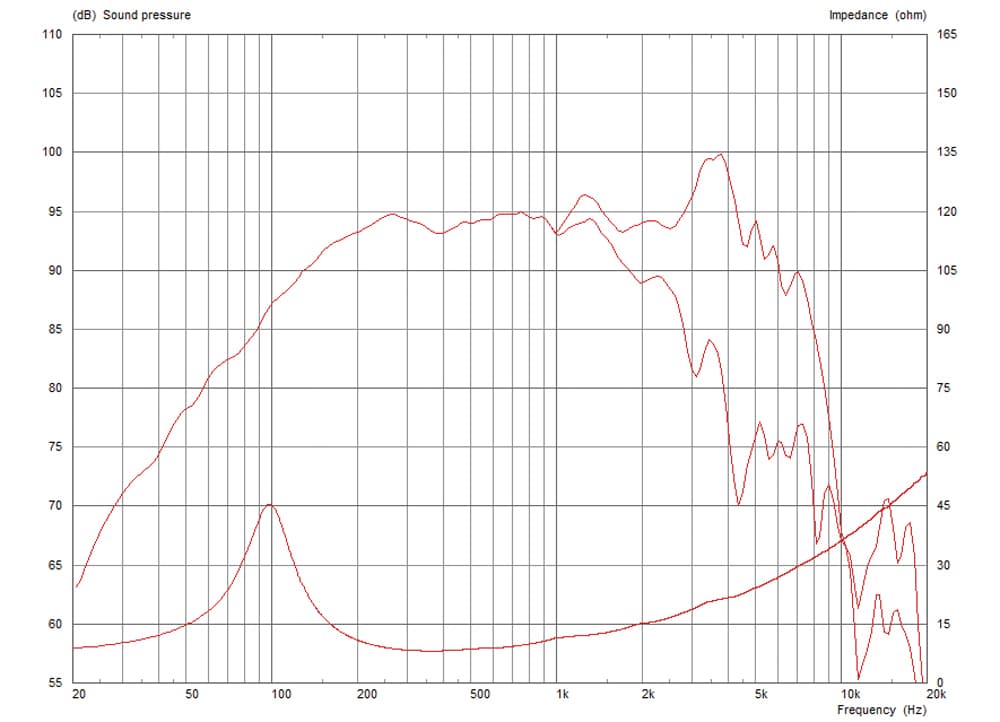

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence170 selected pixels of 397
T/S Parameters
Valid
Fs100Hz
Qts0.43
Qes0.49
Qms3.3
Vas9.4L
Re6.7Ω
Le0.75mH
BL12.9Tm
Sd227cm²
Mms20g
Xmax5.0mm
SPL95dB
Power100W
Impedance8Ω
Voice Coil44mm
Pricing & availability
Price definitionsPrice movement
Best current price
£50.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.3kg
Diameter208.0mm
Overall Depth99.0mm
Cutout Diameter183.0mm
Bolt Circle Diameter199.0mm
