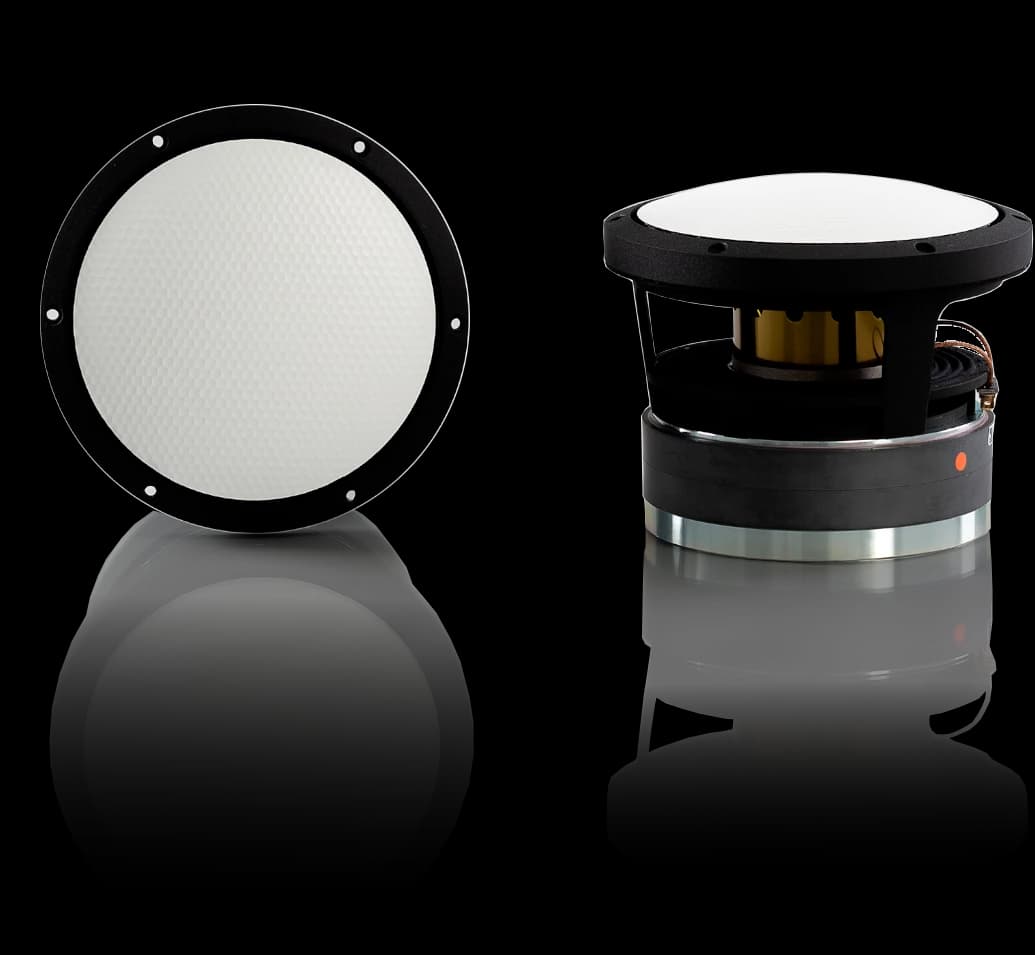

Accuton AS190-9-251 9Ω
9 Ω · 35–1000 Hz
No price for delivery to the UK
- Fs
- 33Hz
- Xmax
- 9mm
- SPL
- 85dB
- Pe
- 250W
- BL
- 13.5T·m
- Vd
- 182cm³
- Qts
- 0.44
- Vas
- 27L

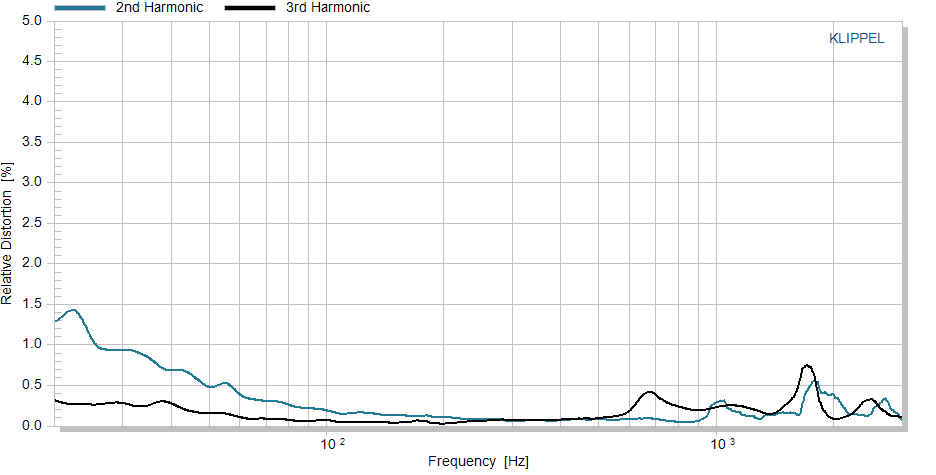

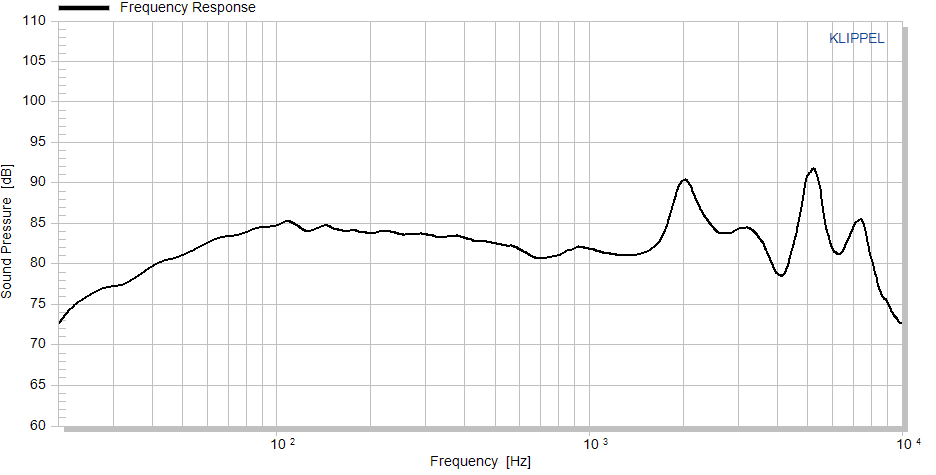

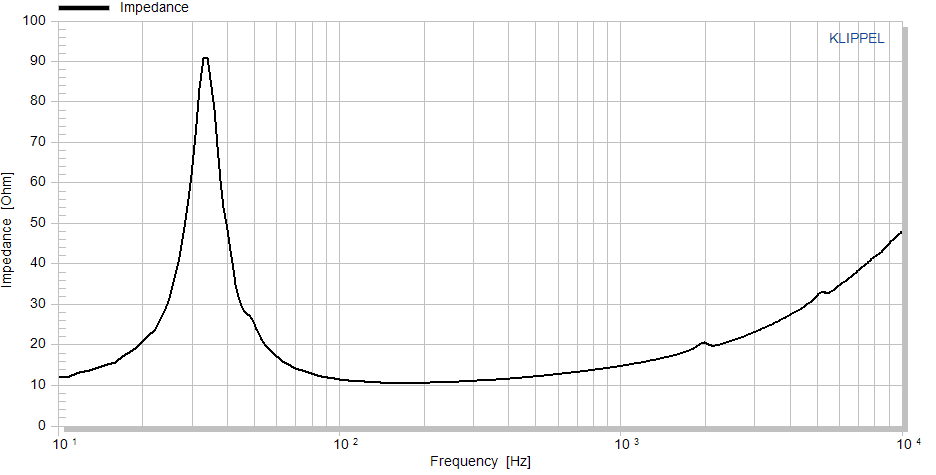

Published graphs
Accuton AS190-9-251 is a 7-inch 9 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.44, Vas 26.7 L, Xmax 9 mm, sensitivity 85.1 dB, plus 182 cm³ Vd and 68 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.44
- Qes
- 0.49
- Qms
- 4.8
- Vas
- 26.7L
- Re
- 8.6Ω
- Le
- 1.05mH
Motor and cone
- BL
- 13.5T·m
- Sd
- 202cm²
- Mms
- 49g
- Xmax
- 9mm
- Vd †
- 182cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 85.1dB
- Manufacturer sensitivity
- 84dB
- Power
- 250W
- Impedance
- 9Ω
- Range
- 35–1000Hz
- EBP †
- 68 · Sealed or vented

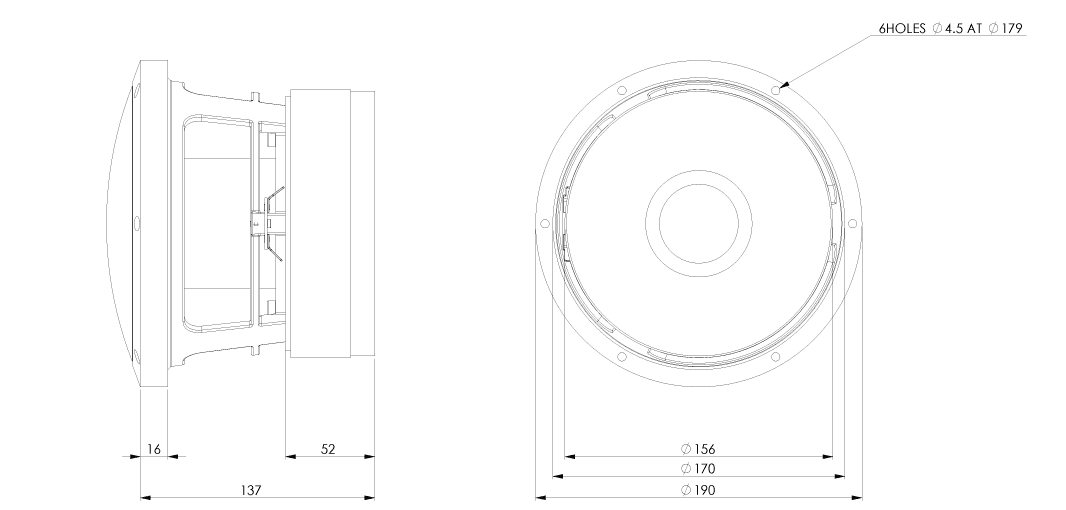

Size and mounting
- Diameter
- 190mm
- Cutout
- 170mm
- Depth
- 137mm
Other published values
- Cms
- 0.46mm/N
- Rms
- 2.18kg/s
Other dimensions
- Mounting Depth
- 52
Sensitivity shows 85.1 dB, calculated from the T/S values. Accuton publishes 84.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Accuton lists
LF · Primary · 7″
- BL
- 13.5T·m
- Fs
- 33Hz
- Le
- 1.05mH
- Re
- 8.6Ω
- Sd
- 202cm²
- Cms
- 0.46mm/N
- Mms
- 49g
- Qes
- 0.49
- Qms
- 4.8
- Qts
- 0.44
- Rms
- 2.18kg/s
- SPL
- 85.1dB
- Vas
- 26.7L
- Xmax
- 9mm
- Power
- 250W
- Impedance
- 9Ω
- Sensitivity
- 84dB
- Low limit
- 35Hz
- Calculated sensitivity †
- 85.1dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 84dB
- Voice coil
- 75mm
- Diameter
- 190mm
- Depth
- 137mm
- Mounting Depth
- 52
- Cutout
- 170mm
