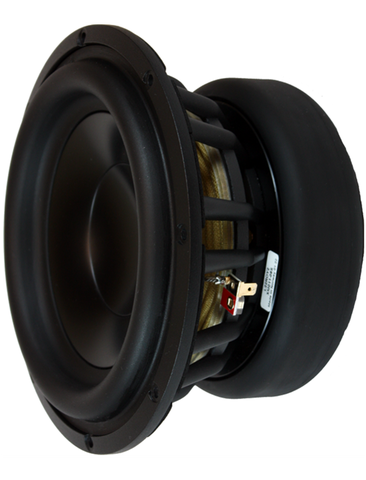

SEAS XM011-08 L22ROY2 8Ω
8 Ω
£426.83
SteadySoundImports · 2 in stock · All 1 offer
- Fs
- 27Hz
- Xmax
- 11.5mm
- SPL
- 82dB
- Pe
- –
- BL
- 13.6T·m
- Vd
- 254cm³
- Qts
- 0.44
- Vas
- 27L

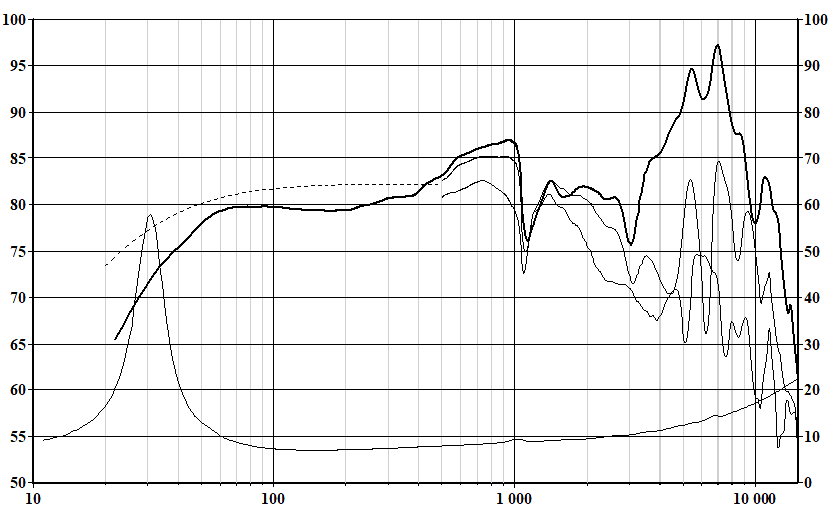

Published graphs
SEAS XM011-08 L22ROY2 is an 8-inch 8 ohm LF driver. The validated T/S data includes Fs 27 Hz, Qts 0.44, Vas 27 L, Xmax 11.5 mm, sensitivity 82.4 dB, plus 254 cm³ Vd and 55 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £426.83.
The published T/S values agree with each other
Thiele/Small
- Fs
- 27Hz
- Qts
- 0.44
- Qes
- 0.49
- Qms
- 4.1
- Vas
- 27L
- Re
- 6.2Ω
Motor and cone
- BL
- 13.6T·m
- Sd
- 221cm²
- Mms
- 84g
- Xmax
- 11.5mm
- Vd †
- 254cm³
Power and response
- Sensitivity †
- 82.4dB
- Impedance
- 8Ω
- EBP †
- 55 · Sealed or vented
Other published values
- Cms
- 0.40mm/N
- Rms
- 3.56kg/s
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
LF · Primary · 8″
- BL
- 13.6T·m
- Fs
- 27Hz
- Re
- 6.2Ω
- Sd
- 221cm²
- Cms
- 0.40mm/N
- Mms
- 84g
- Qes
- 0.49
- Qms
- 4.1
- Qts
- 0.44
- Rms
- 3.56kg/s
- SPL
- 82.4dB
- Vas
- 27L
- Xmax
- 11.5mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 82.4dB
02
Compare
Same-size drivers, compared with the XM011-08 L22ROY2. Clear differences are green when better and red when worse.
This driverXM011-08 L22ROY2
Best price
£426.83
Fs
27 Hz
Qts
0.44
Vas
27 L
BL
13.6 T·m
Xmax
11.5 mm
Sensitivity
82.4 dB
Power
–
Dayton AudioPA200-8
£45.32 · 89% less, betterFs55 Hz +104%, worse
Qts0.48 +9%
Vas26.6 L –
BL9.3 T·m −32%, worse
Xmax3 mm −74%, worse
Sensitivity91.5 dB +9.1, better
PeerlessGBS-200F35CP02-04
£54.66 · 87% less, betterFs42 Hz +56%, worse
Qts0.44 –
Vas13.9 L −49%, better
BL11.7 T·m −14%, worse
Xmax7.8 mm −32%, worse
Sensitivity85.4 dB +3, better
CelestionTF0818
£55.00 · 87% less, betterFs100 Hz +270%, worse
Qts0.43 –
Vas9.4 L −65%, better
BL12.9 T·m −5%
Xmax5 mm −57%, worse
Sensitivity94.9 dB +12.5, better
GRS8SW-4HE-8
£72.53 · 83% less, betterFs25 Hz −8%
Qts0.45 –
Vas31.7 L +17%, worse
BL10.5 T·m −23%, worse
Xmax10.8 mm −6%
Sensitivity81.9 dB −0.5
LavoceSSF082.00L
£82.36 · 81% less, betterFs50 Hz +85%, worse
Qts0.44 –
Vas10.1 L −62%, better
BL15.7 T·m +15%, better
Xmax9.2 mm −20%, worse
Sensitivity86.4 dB +4, better
SB AcousticsSB23MFCL45-8
£117.27 · 73% less, betterFs29 Hz +6%
Qts0.43 –
Vas37 L +37%, worse
BL11.3 T·m −17%, worse
Xmax21 mm +83%, better
Sensitivity84.7 dB +2.3, better
WavecorSW215WA02
£149.32 · 65% less, betterFs30 Hz +11%, worse
Qts0.44 –
Vas32.5 L +20%, worse
BL11.4 T·m −16%, worse
Xmax10 mm −13%, worse
Sensitivity84.8 dB +2.4, better
WavecorSW215WA01
£149.32 · 65% less, betterFs33 Hz +22%, worse
Qts0.49 +11%, worse
Vas26 L −4%
BL8.4 T·m −38%, worse
Xmax10 mm −13%, worse
Sensitivity84.7 dB +2.3, better
Dayton AudioRSS210HO-4
£179.25 · 58% less, betterFs30 Hz +10%
Qts0.40 −9%
Vas18.7 L −31%, better
BL12 T·m −12%, worse
Xmax11 mm −4%
Sensitivity82.3 dB –
Beyma8NMFW
£231.46 · 46% less, betterFs37 Hz +37%, worse
Qts0.34 −23%, better
Vas27 L –
BL13.4 T·m –
Xmax9 mm −22%, worse
Sensitivity87.8 dB +5.4, better
VoltSB220.1
£285.12 · 33% less, betterFs27 Hz –
Qts0.49 +11%, worse
Vas37.4 L +38%, worse
BL9.7 T·m −29%, worse
Xmax12 mm +4%
Sensitivity83.5 dB +1.1
WavecorSW223BD03
£335.27 · 21% less, betterFs25 Hz −7%
Qts0.46 +5%
Vas28 L +4%
BL13.1 T·m −4%
Xmax11.7 mm –
Sensitivity81.6 dB −0.8
WavecorSW223BD02
£335.27 · 21% less, betterFs24 Hz −11%, better
Qts0.40 −9%
Vas28 L +4%
BL11 T·m −19%, worse
Xmax11.7 mm –
Sensitivity81.7 dB −0.7
AccutonAS190-9-251
No current priceFs33 Hz +24%, worse
Qts0.44 –
Vas26.7 L –
BL13.5 T·m –
Xmax9 mm −22%, worse
Sensitivity85.1 dB +2.7, better
SEASXM011-04 L22ROY2
No current priceFs27 Hz –
Qts0.39 −11%, better
Vas28 L +4%
BL10.5 T·m −23%, worse
Xmax11.5 mm –
Sensitivity83.2 dB +0.8
HiViD8G
No current priceFs35 Hz +30%, worse
Qts0.41 −7%
Vas30.3 L +12%, worse
BL13 T·m −4%
Xmax8.3 mm −28%, worse
Sensitivity86.4 dB +4, better
Tang BandW8-670Q
No current priceFs38 Hz +41%, worse
Qts0.46 +5%
Vas24.9 L −8%
BL12.3 T·m −10%
Xmax7 mm −39%, worse
Sensitivity86.3 dB +3.9, better
Tang BandW8-1363SBF
No current priceFs32 Hz +19%, worse
Qts0.39 −11%, better
Vas13.4 L −50%, better
BL13.0 T·m −4%
Xmax12 mm +4%
Sensitivity82.1 dB –
HiViD8.8+
No current priceFs31 Hz +15%, worse
Qts0.40 −9%
Vas34.9 L +29%, worse
BL13.3 T·m –
Xmax7.5 mm −35%, worse
Sensitivity85.8 dB +3.4, better
Tang BandW8-670T
No current priceFs40 Hz +48%, worse
Qts0.45 –
Vas23.3 L −14%, better
BL9.4 T·m −31%, worse
Xmax7.8 mm −32%, worse
Sensitivity86.9 dB +4.5, better
MonacorTF0818/8
No current priceFs94 Hz +248%, worse
Qts0.43 –
Vas9.4 L −65%, better
BL12.9 T·m −5%
Xmax5 mm −57%, worse
Sensitivity94 dB +11.6, better
MonacorSP-8/150PA
No current priceFs88 Hz +226%, worse
Qts0.43 –
Vas12 L −56%, better
BL12.6 T·m −7%
Xmax1.3 mm −89%, worse
Sensitivity94.3 dB +11.9, better
Tang BandW8-1747A
No current priceFs30 Hz +11%, worse
Qts0.41 −7%
Vas23.2 L −14%, better
BL10.0 T·m −27%, worse
Xmax8 mm −30%, worse
Sensitivity83 dB +0.6
MonacorFTR08-2011D/8
No current priceFs86 Hz +219%, worse
Qts0.43 –
Vas9 L −67%, better
BL12.7 T·m −7%
Xmax5.5 mm −52%, worse
Sensitivity92.6 dB +10.2, better
LavoceFBASS08-18
No current priceFs53 Hz +96%, worse
Qts0.40 −9%
Vas23.6 L −12%, better
BL11.4 T·m −16%, worse
Xmax4.5 mm −61%, worse
Sensitivity91.2 dB +8.8, better
Dayton AudioSS8-22
No current priceFs38 Hz +41%, worse
Qts0.45 –
Vas9.7 L −64%, better
BL14.6 T·m +7%
Xmax17 mm +48%, better
Sensitivity82.3 dB –
HiViD8.8
No current priceFs32 Hz +19%, worse
Qts0.40 −9%
Vas37.8 L +40%, worse
BL12.9 T·m −5%
Xmax8.3 mm −28%, worse
Sensitivity86.5 dB +4.1, better
FaitalPRO8HX210
No current priceFs83 Hz +207%, worse
Qts0.44 –
Vas10.1 L −63%, better
BL11.9 T·m −13%, worse
Xmax6.5 mm −43%, worse
Sensitivity92.7 dB +10.3, better
LavoceNBASS08-20
No current priceFs55 Hz +104%, worse
Qts0.48 +9%
Vas18.4 L −32%, better
BL11.3 T·m −17%, worse
Xmax6.5 mm −43%, worse
Sensitivity89.9 dB +7.5, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports | £426.83, the lowest price | 2 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
