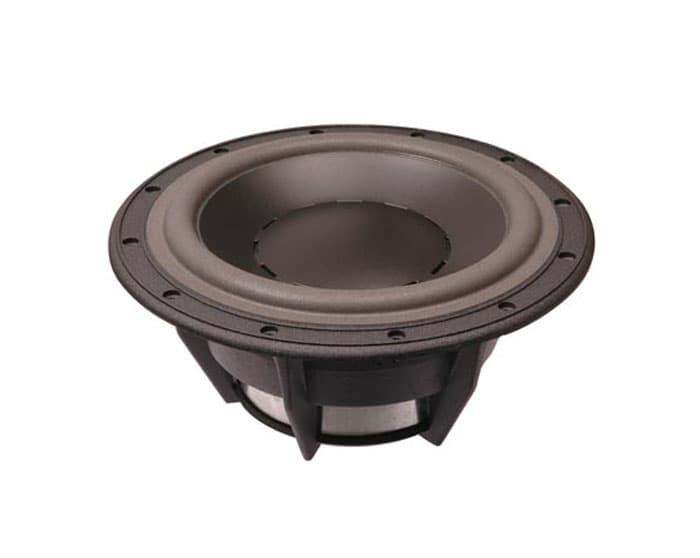

HiVi D8.8 8Ω
8 Ω
No current price
- Fs
- 32Hz
- Xmax
- 8.3mm
- SPL
- 87dB
- Pe
- 150W
- BL
- 12.9T·m
- Vd
- 202cm³
- Qts
- 0.40
- Vas
- 38L
HiVi D8.8 is an 8.75-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.40, Vas 37.8 L, Xmax 8.3 mm, sensitivity 86.5 dB, plus 202 cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.40
- Qes
- 0.44
- Qms
- 4.4
- Vas
- 37.8L
- Re
- 6.5Ω
Motor and cone
- BL
- 12.9T·m
- Sd Derived
- 244cm²
- Mms
- 53g
- Xmax
- 8.3mm
- Vd †
- 202cm³
- Voice coil
- 100mm
Power and response
- Sensitivity †
- 86.5dB
- Manufacturer sensitivity
- 86dB
- Power
- 150W
- Impedance
- 8Ω
- EBP †
- 73 · Sealed or vented
Size and mounting
- Weight
- 3.5kg
Other published values
- Cms
- 0.46mm/N
- Power Peak
- 300
† Calculated by bits from the published values
What this validation status means
Everything else HiVi lists
LF · Primary · 8.8″
- BL
- 12.9T·m
- Fs
- 32Hz
- Re
- 6.5Ω
- Sd
- 244cm²
- Cms
- 0.46mm/N
- Mms
- 53g
- Qes
- 0.44
- Qms
- 4.4
- Qts
- 0.40
- SPL
- 86.5dB
- Vas
- 37.8L
- Xmax
- 8.3mm
- Power
- 150W
- Impedance
- 8Ω
- Power Peak
- 300
- Sensitivity
- 86dB
- Calculated sensitivity †
- 86.5dB
- Manufacturer sensitivity
- 86dB
- Voice coil
- 100mm
- Weight
- 3.5kg
