Overview
LF Driver
Tang Band

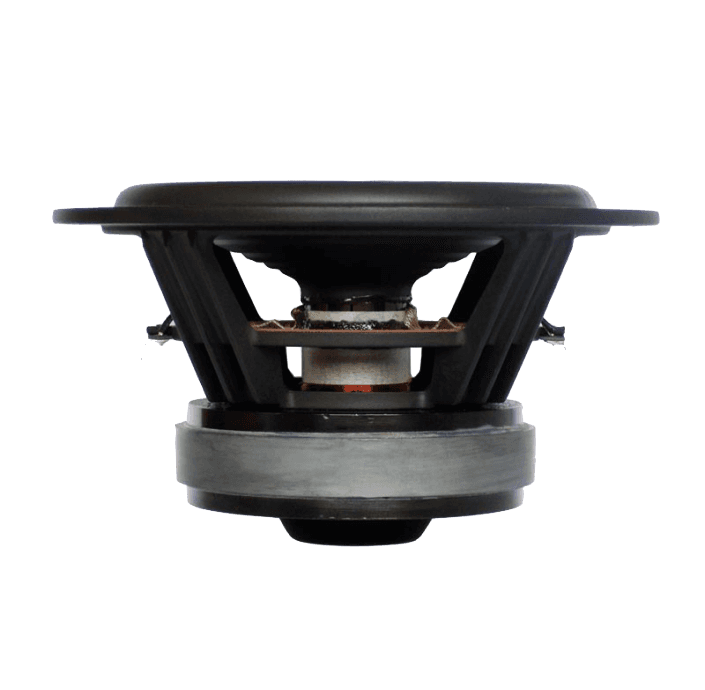

Tang Band W8-1747A
Tang Band W8-1747A is a 8" 4 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 30Hz, Qts 0.41, Vas 23.2L, Xmax 8mm, sensitivity 83dB, plus 176cm³ Vd and 60 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
350W
Sensitivity
83.0dB
84.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
60
Either alignment
Vd
176cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,051 selected pixels of 2,051
T/S Parameters
Valid
Fs30Hz
Qts0.41
Qes0.50
Qms2.1
Vas23.2L
Re3.6Ω
Le0.60mH
BL10.0Tm
Sd220cm²
Mms70g
Xmax8.0mm
SPL83dB
Power350W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
