Wavecor SW182BD04 8Ω
LF DriverMedia
Wavecor
SW182BD04
Image unavailable
Overview
LF DriverSW182BD series
Wavecor
Wavecor SW182BD04
Wavecor SW182BD04 is a 7" 8 ohm LF driver. The validated T/S data includes Fs 37Hz, Qts 0.49, Vas 12.7L, Xmax 7mm, sensitivity 83.1dB, plus 92cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7"
Impedance
8Ω
Sensitivity
83.1dB
EBP
73
Either alignment
Vd
92cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA01 impedance240 ptsp2medium
FR040WA02 impedance240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence585 selected pixels of 585 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence569 selected pixels of 569
T/S Parameters
Valid
Fs37Hz
Qts0.49
Qes0.51
Qms12.6
Vas12.7L
Re6.4Ω
BL10.2Tm
Sd131cm²
Mms35g
Xmax7.0mm
SPL83dB
Impedance8Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter177.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW182BD04
7"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
76%
Similarity
Wavecor
SW182BD03
7"
Xmax7mm0%
Qts0.44-10%
BL7.6Tm-25%
Vas12.7L0%
Qes0.45-12%
71%
Similarity
Peerless
HDS-P830990
6.5"
Xmax7.3mm+5%
Qts0.43-12%
BL8.6Tm-15%
Vas13.5L+6%
Qes0.52+1%
68%
Similarity
£52.62
Peerless
HDS-P830874
6.5"
Xmax7.3mm+5%
Qts0.51+4%
BL8.7Tm-15%
Vas10.6L-17%
Qes0.59+17%
67%
Similarity
HiVi
D6.8B
6.75"
Xmax5.3mm-24%
Qts0.45-8%
BL8.9Tm-13%
Vas13.5L+6%
Qes0.49-4%
65%
Similarity
£98.16

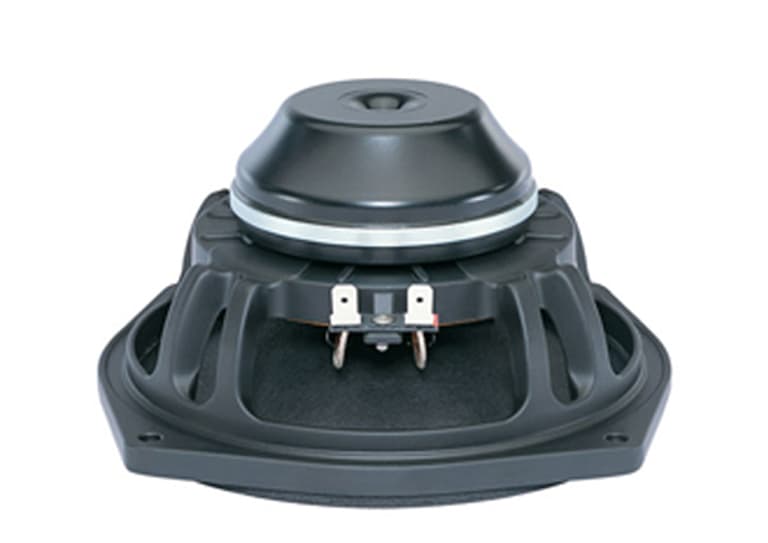

B&C
6NDL38
6.5"
Xmax6mm-14%
Qts0.5+2%
BL11.7Tm+15%
Vas8.9L-30%
Qes0.53+4%
Image unavailable
63%
Similarity
Wavecor
SW168WA01
6.5"
Xmax7mm0%
Qts0.45-8%
BL7.5Tm-26%
Vas9.6L-24%
Qes0.47-8%
59%
Similarity

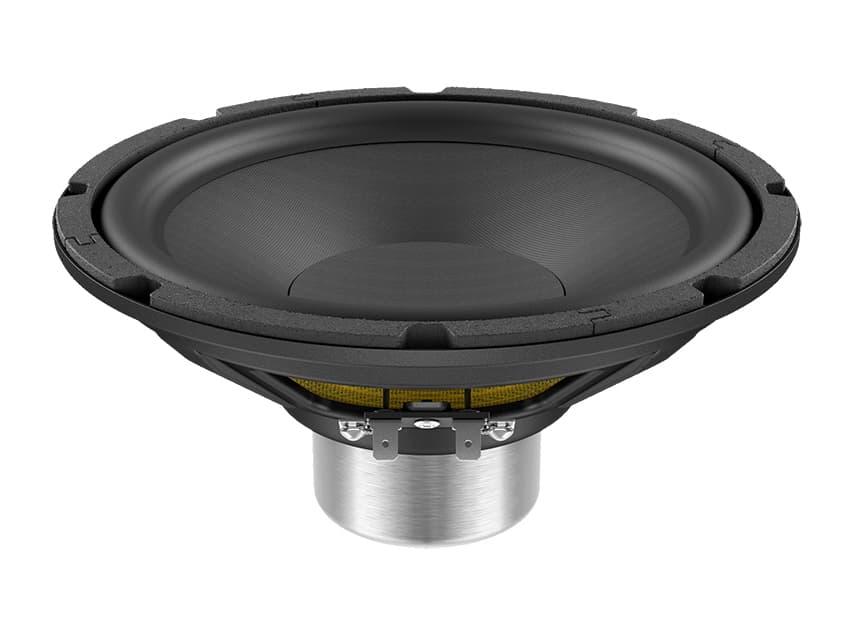

Lavoce
