LF DriverBIANCO series
SB Audience
SB Audience BIANCO-8MW125
SB Audience BIANCO-8MW125 is a 8" 8 ohm LF driver rated at 125W RMS. The validated T/S data includes Fs 89Hz, Qts 0.55, Vas 10.1L, Xmax 6.4mm, sensitivity 93dB, plus 144cm³ Vd and 156 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £37.54.
Size
8"
Impedance
8Ω
RMS Power
125W
Sensitivity
93.0dB
EBP
156
Vented alignment
Vd
144cm³
T/S Parameters
Valid
Fs89Hz
Qts0.55
Qes0.57
Qms14.6
Vas10.1L
Re5.8Ω
Le0.50mH
BL11.3Tm
Sd224cm²
Mms23g
Xmax6.4mm
SPL93dB
Power125W
Impedance8Ω
Min Impedance5.6Ω
F Low89Hz
F High7400Hz
Voice Coil50mm
Flux Density1.23T
Pricing & availability
Price definitionsPrice movement
Best current price
£37.54
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

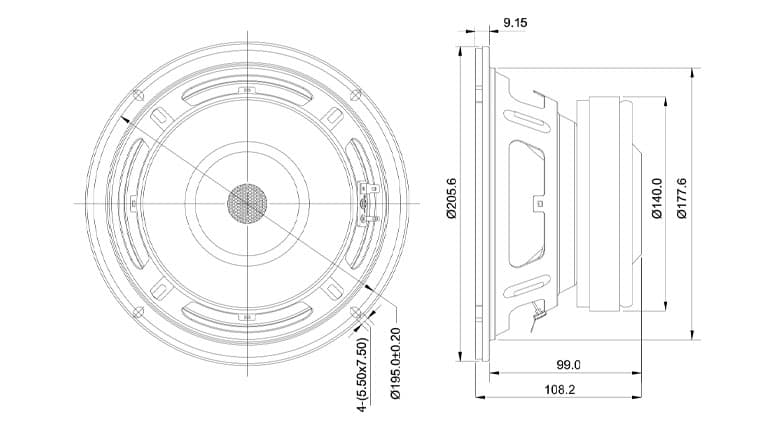

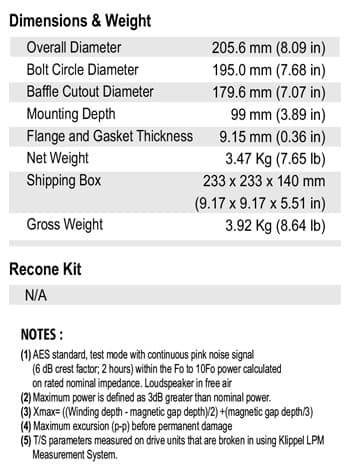

Dimensions & Physical
Weight3.5kg
Diameter205.6mm
Cutout Diameter179.6mm
Bolt Circle Diameter195.0mm
