LF Driver
GRS

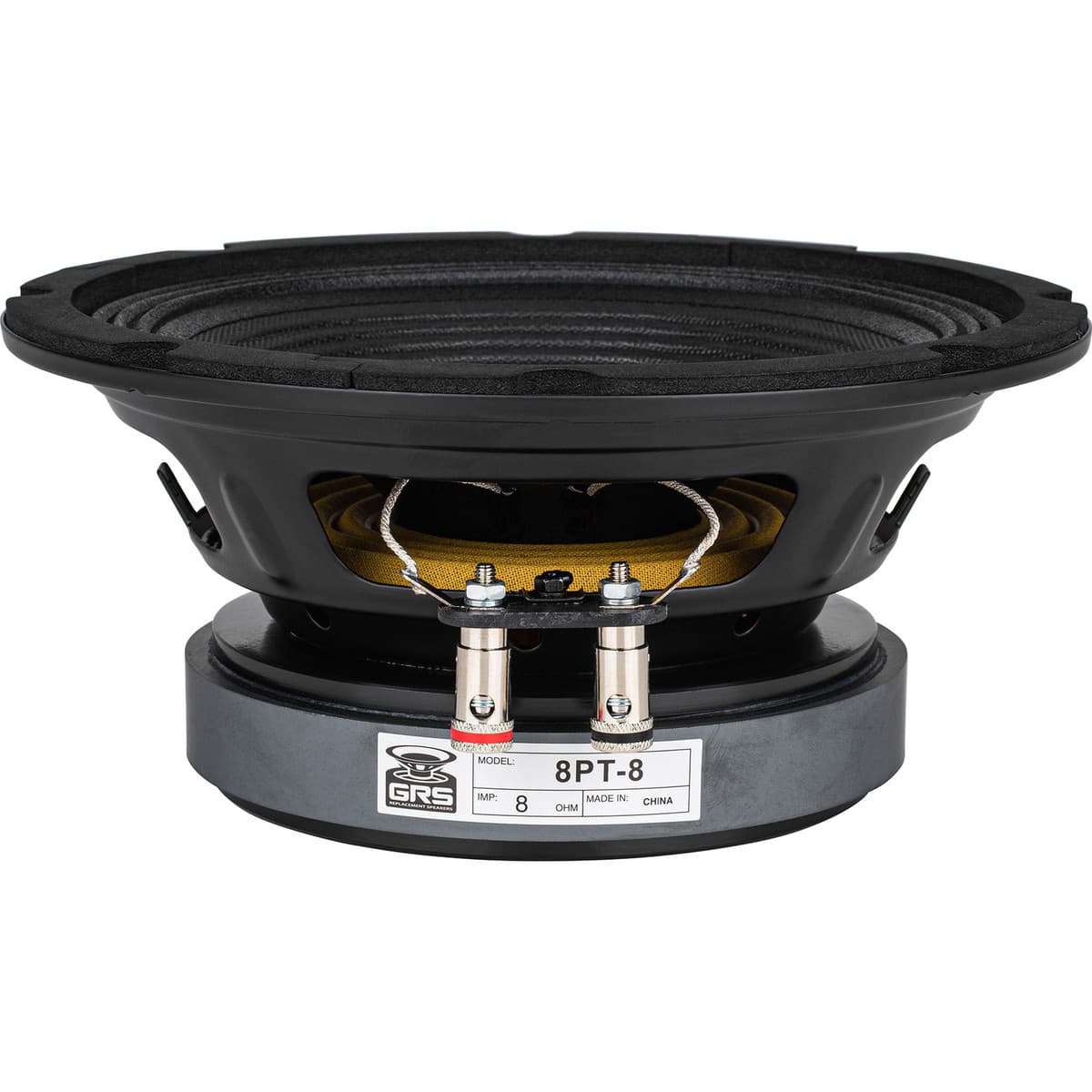

GRS 8PT-8
GRS 8PT-8 is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 59Hz, Qts 0.55, Vas 0.7L, Xmax 6.5mm, sensitivity 76dB, plus 138cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
76.0dB
92.0dBmanufacturer; using T/S-derived value (16.0dB delta).
EBP
100
Either alignment
Vd
138cm³
T/S Parameters
Valid
Fs59Hz
Qts0.55
Qes0.59
Qms9.9
Vas0.7L
Re7.1Ω
Le1.50mH
BL10.2Tm
Sd213cm²
Mms23g
Xmax6.5mm
SPL76dB
Power150W
Impedance8Ω
F Low55Hz
F High9000Hz
Voice Coil51mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter208.8mm
Overall Depth95.0mm
Cutout Diameter181.1mm
Bolt Circle Diameter196.8mm
