8-inch LF driver · 37 mm voice coil

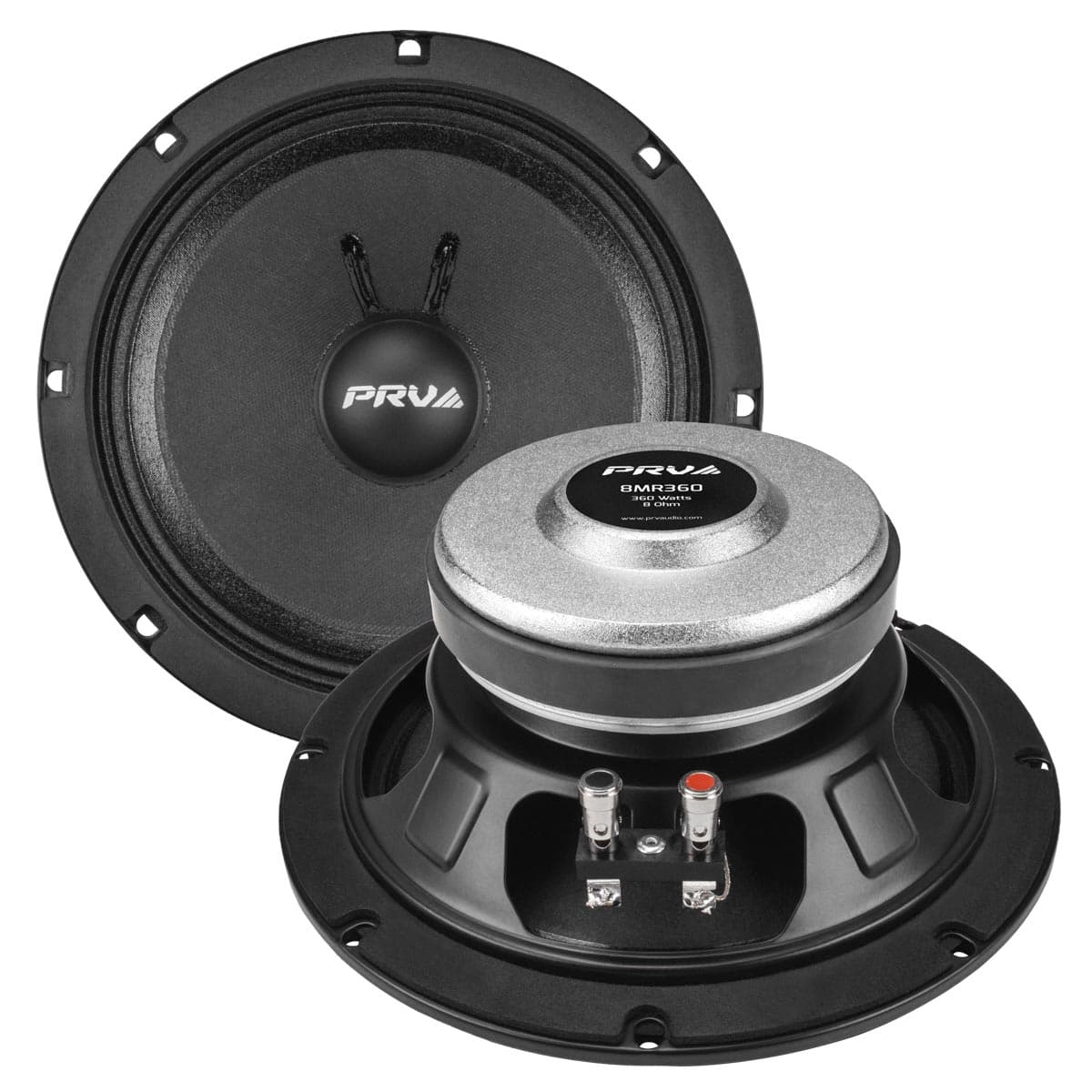

PRV Audio 8MR360 8Ω
8 Ω · 90–7000 Hz
No current price
- Fs
- 91Hz
- Xmax
- 4mm
- SPL
- 96dB
- Pe
- –
- BL
- 8.3T·m
- Vd
- 90cm³
- Qts
- 0.56
- Vas
- 19L
PRV Audio 8MR360 is an 8-inch 8 ohm LF driver. The validated T/S data includes Fs 91 Hz, Qts 0.56, Vas 18.5 L, Xmax 4 mm, sensitivity 95.8 dB, plus 90 cm³ Vd and 156 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 91Hz
- Qts
- 0.56
- Qes
- 0.58
- Qms
- 11.9
- Vas
- 18.5L
- Re
- 6Ω
- Le
- 0.56mH
Motor and cone
- BL
- 8.3T·m
- Sd
- 224cm²
- Mms
- 12g
- Xmax
- 4mm
- Vd †
- 90cm³
- Voice coil
- 37mm
Power and response
- Sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 95dB
- Impedance
- 8Ω
- Range
- 90–7000Hz
- EBP †
- 156 · Leans vented
Size and mounting
- Cutout
- 176mm
- Depth
- 89.5mm
- Weight
- 2.2kg
Other published values
- Cms
- 0.26mm/N
Other dimensions
- Mounting Depth
- 81.5
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
MF · Primary · 8″
- BL
- 8.3T·m
- Fs
- 91Hz
- Le
- 0.56mH
- Re
- 6Ω
- Sd
- 224cm²
- Cms
- 0.26mm/N
- Mms
- 12g
- Qes
- 0.58
- Qms
- 11.9
- Qts
- 0.56
- SPL
- 95.8dB
- Vas
- 18.5L
- Xmax
- 4mm
- Impedance
- 8Ω
- Sensitivity
- 95dB
- Low limit
- 90Hz
- Calculated sensitivity †
- 95.8dB
- High limit
- 7000Hz
- Manufacturer sensitivity
- 95dB
- Voice coil
- 37mm
- Weight
- 2.2kg
- Depth
- 89.5mm
- Mounting Depth
- 81.5
- Cutout
- 176mm
02
