8-inch LF driver · TF0815 series · 38 mm voice coil · 100 W

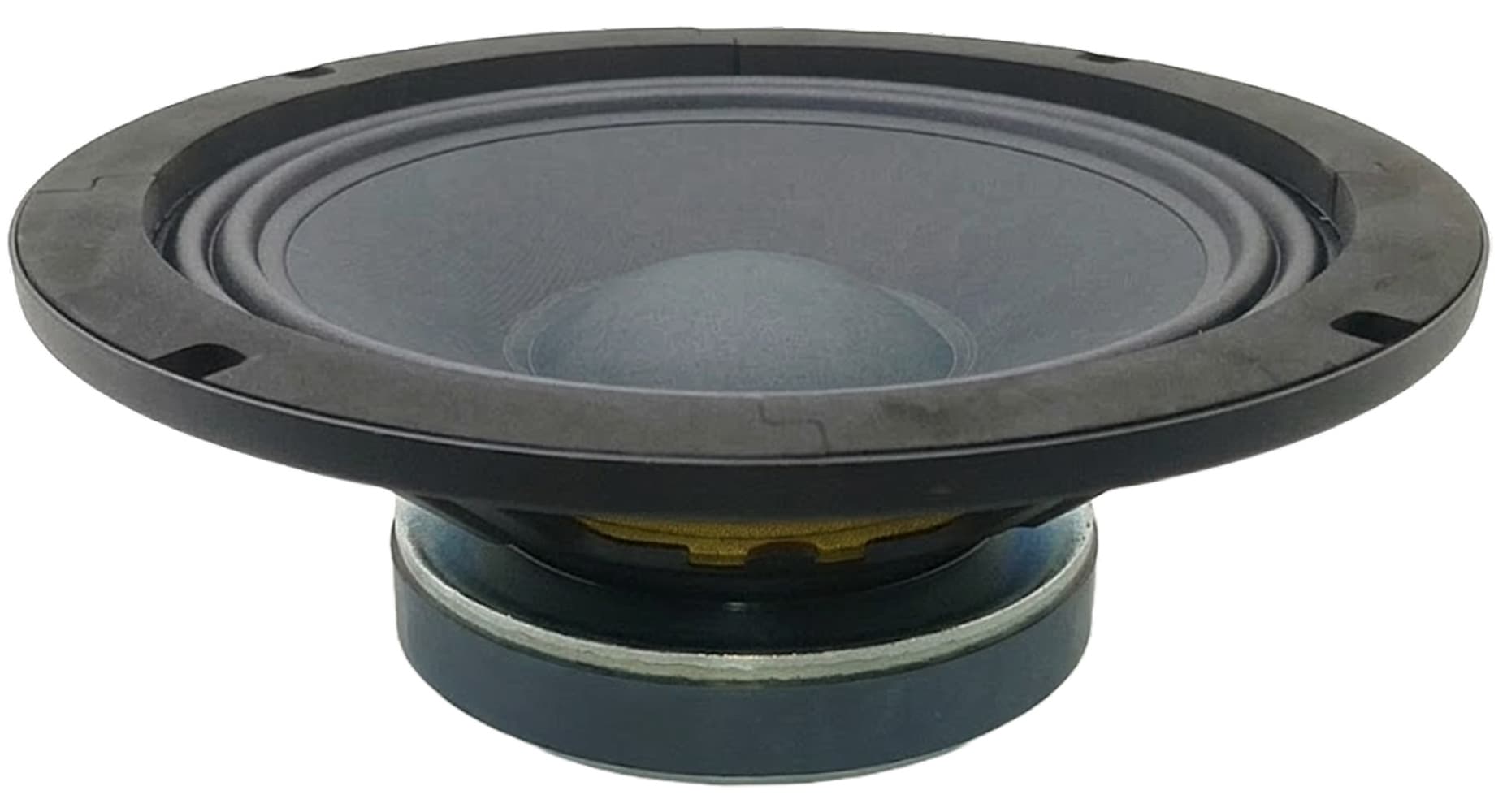

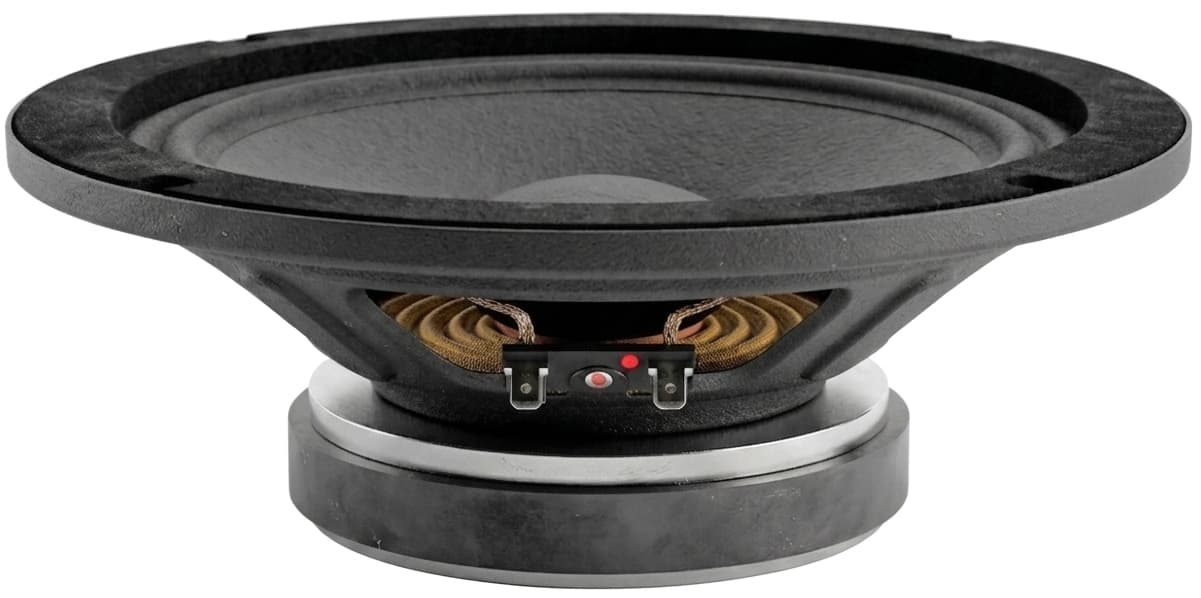

Celestion TF0815RE 8Ω
8 Ω · 60–6000 Hz
No current price
- Fs
- 65Hz
- Xmax
- 5.3mm
- SPL
- 92dB
- Pe
- 100W
- BL
- 8.9T·m
- Vd
- 119cm³
- Qts
- 0.53
- Vas
- 22L

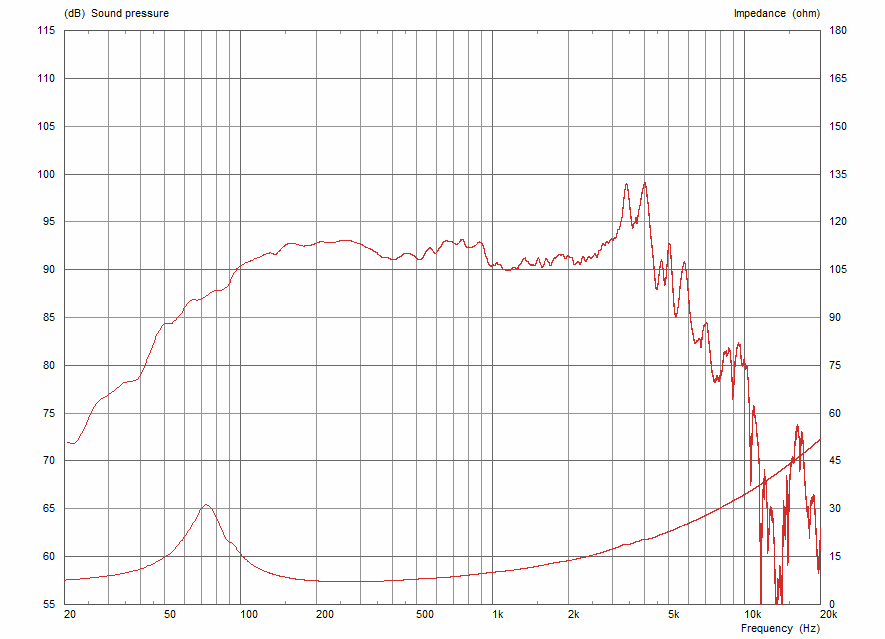

Published graphs
Celestion TF0815RE is an 8-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.53, Vas 22.1 L, Xmax 5.3 mm, sensitivity 91.7 dB, plus 119 cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.53
- Qes
- 0.65
- Qms
- 3.0
- Vas
- 22.1L
- Re
- 6.3Ω
- Le
- 0.64mH
Motor and cone
- BL
- 8.9T·m
- Sd
- 227cm²
- Mms
- 20g
- Xmax
- 5.3mm
- Vd †
- 119cm³
- Voice coil
- 38mm
Power and response
- Sensitivity †
- 91.7dB
- Manufacturer sensitivity
- 92.5dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 60–6000Hz
- EBP †
- 100 · Sealed or vented
Size and mounting
- Diameter
- 223.4mm
- Cutout
- 182mm
- Bolt circle
- 211.5mm
- Depth
- 84.2mm
- Weight
- 1.9kg
Other published values
- Cms
- 0.30mm/N
- Rms
- 2.71kg/s
- Power Program
- 200
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 8″
- BL
- 8.9T·m
- Fs
- 65Hz
- Le
- 0.64mH
- Re
- 6.3Ω
- Sd
- 227cm²
- Cms
- 0.30mm/N
- Mms
- 20g
- Qes
- 0.65
- Qms
- 3.0
- Qts
- 0.53
- Rms
- 2.71kg/s
- SPL
- 91.7dB
- Vas
- 22.1L
- Xmax
- 5.3mm
- Power
- 100W
- Impedance
- 8Ω
- Sensitivity
- 92.5dB
- Low limit
- 60Hz
- Power Program
- 200
- Calculated sensitivity †
- 91.7dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 92.5dB
- Voice coil
- 38mm
- Weight
- 1.9kg
- Diameter
- 223.4mm
- Depth
- 84.2mm
- Cutout
- 182mm
- Bolt circle
- 211.5mm
