Overview
LF Driver
GRS
GRS 8SMP-8

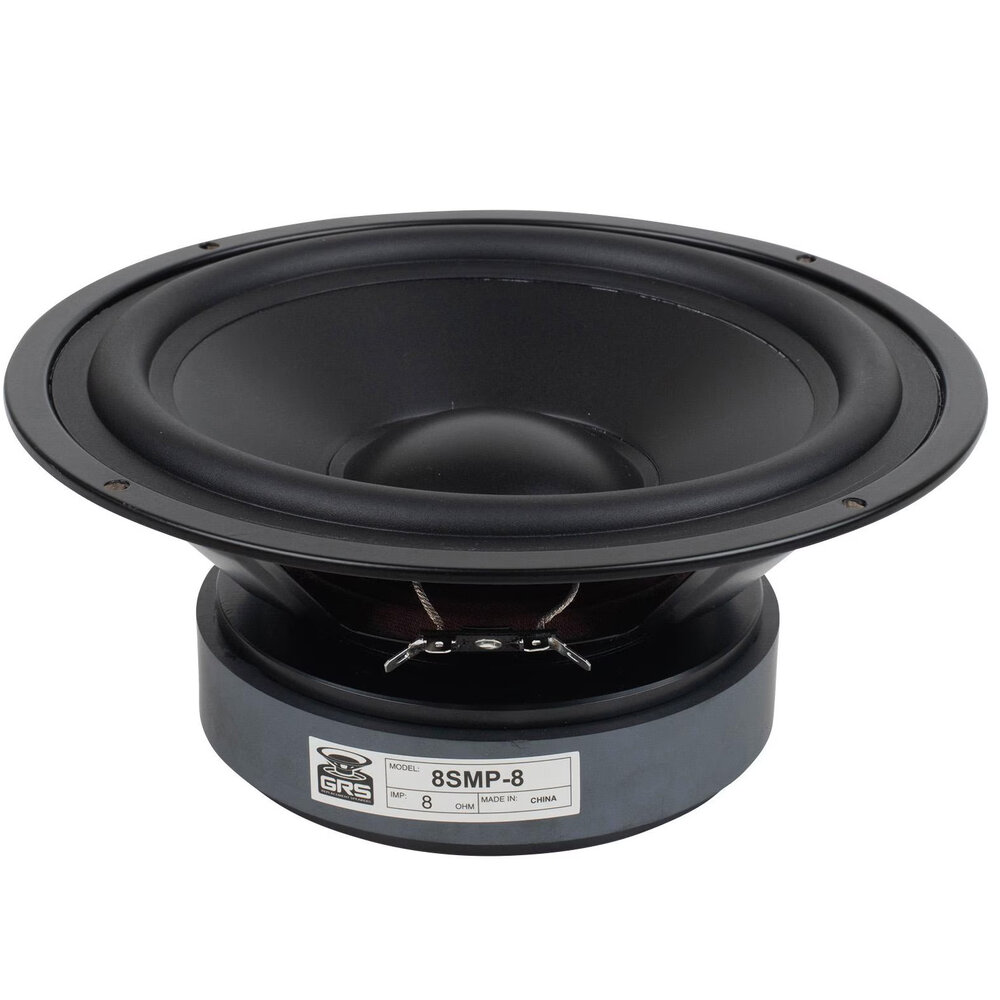

GRS 8SMP-8 is a 8" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 41Hz, Qts 0.46, Vas 32.5L, Xmax 5.5mm, sensitivity 88.1dB, plus 116cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
60W
Sensitivity
88.1dB
89.5dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
75
Either alignment
Vd
116cm³
T/S Parameters
Valid
Fs41Hz
Qts0.46
Qes0.55
Qms2.9
Vas32.5L
Re5.8Ω
Le0.41mH
BL8.9Tm
Sd211cm²
Mms30g
Xmax5.5mm
SPL88dB
Power60W
Impedance8Ω
F Low30Hz
F High1500Hz
Voice Coil39mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
GRS
8SMP-8
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity
£103.07
Eighteen Sound
8MB500
8"
Xmax6mm+9%
Qts0.43-7%
BL9Tm+1%
Vas21.5L-34%
Qes0.51-7%
77%
Similarity
Dayton Audio
PCS8-4
8"
Xmax5mm-9%
Qts0.49+7%
BL8.4Tm-6%
Vas20.5L-37%
Qes0.56+2%
71%
Similarity
Beyma
608CMV28
8"
Xmax5.7mm+4%
Qts0.52+13%
BL9.6Tm+7%
Vas14.6L-55%
Qes0.550%
71%
Similarity
Celestion
TF0815RE
8"
Xmax5.3mm-5%
Qts0.53+16%
BL8.9Tm-1%
Vas22.1L-32%
Qes0.65+18%
70%
Similarity
FaitalPRO
8PR150
8"
Xmax5mm-9%
Qts0.48+4%
BL10.4Tm+16%
Vas16.2L-50%
Qes0.54-2%
68%
Similarity
£55.00
FaitalPRO
W8N8-150
8"
Xmax5.5mm0%
Qts0.52+13%
BL9.9Tm+11%
Vas14.4L-56%
Qes0.59+7%
67%
Similarity
£90.00
Eighteen Sound
8MB400
8"
Xmax5.8mm+5%
Qts0.38-17%
BL9.3Tm+4%
Vas23.9L-26%
Qes0.43-22%
65%
Similarity
Dayton Audio
SD215A-88
8"
Xmax6mm+9%
Qts0.39-15%
BL7.7Tm-14%
Vas38.2L+18%
Qes0.45-18%
65%
Similarity
£27.70
Dayton Audio
DC200-8
8"
Xmax4.5mm-18%
Qts0.42-9%
BL9.5Tm+6%
Vas45.7L+41%
Qes0.49-11%
65%
Similarity
£37.43
Dayton Audio
MB820-8
8"
Xmax4mm-27%
Qts0.460%
BL9.6Tm+7%
Vas15.8L-51%
Qes0.52-5%
65%
Similarity
Tang Band
W8-2314
8"
Xmax6mm+9%
Qts0.460%
BL6.1Tm-32%
Vas49.5L+52%
Qes0.54-2%
64%
Similarity
Oberton
8CX
8"
Xmax5.3mm-5%
Qts0.4-13%
BL9.4Tm+5%
Vas16.8L-48%
Qes0.44-20%
