Wavecor SW215WA01 4Ω
LF DriverMedia
Wavecor
SW215WA01
Image unavailable
Overview
LF DriverSW215WA series
Wavecor
Wavecor SW215WA01
Wavecor SW215WA01 is a 8" 4 ohm LF driver. The validated T/S data includes Fs 33Hz, Qts 0.49, Vas 26L, Xmax 10mm, sensitivity 84.7dB, plus 206cm³ Vd and 65 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
Sensitivity
84.7dB
EBP
65
Either alignment
Vd
206cm³
T/S Parameters
Valid
Fs33Hz
Qts0.49
Qes0.51
Qms11.0
Vas26.0L
Re3.3Ω
BL8.4Tm
Sd206cm²
Mms53g
Xmax10.0mm
SPL85dB
Impedance4Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter215.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW215WA01
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
72%
Similarity
Tang Band
W8-670T
8"
Xmax7.8mm-22%
Qts0.45-8%
BL9.4Tm+12%
Vas23.3L-11%
Qes0.49-4%
68%
Similarity
£257.71
Volt
SB220.1
8"
Xmax12mm+20%
Qts0.490%
BL9.7Tm+15%
Vas37.4L+44%
Qes0.53+4%
65%
Similarity
Tang Band
W8-1747A
8"
Xmax8mm-20%
Qts0.41-16%
BL10Tm+18%
Vas23.2L-11%
Qes0.5-2%
Image unavailable
65%
Similarity
Wavecor
SW215WA02
8"
Xmax10mm0%
Qts0.44-10%
BL11.4Tm+35%
Vas32.5L+25%
Qes0.46-10%
64%
Similarity
Dayton Audio
RSS210HF-4
8"
Xmax9mm-10%
Qts0.57+16%
BL8.1Tm-4%
Vas23.7L-9%
Qes0.69+35%
Image unavailable
54%
Similarity
Wavecor
SW223BD02
8"
Xmax11.7mm+17%
Qts0.4-18%
BL11Tm+30%
Vas28L+8%
Qes0.42-18%
54%
Similarity
Dayton Audio
DCS205-4
8"
Xmax8.8mm-12%
Qts0.37-24%
BL10.7Tm+27%
Vas27L+4%
Qes0.4-22%
48%
Similarity

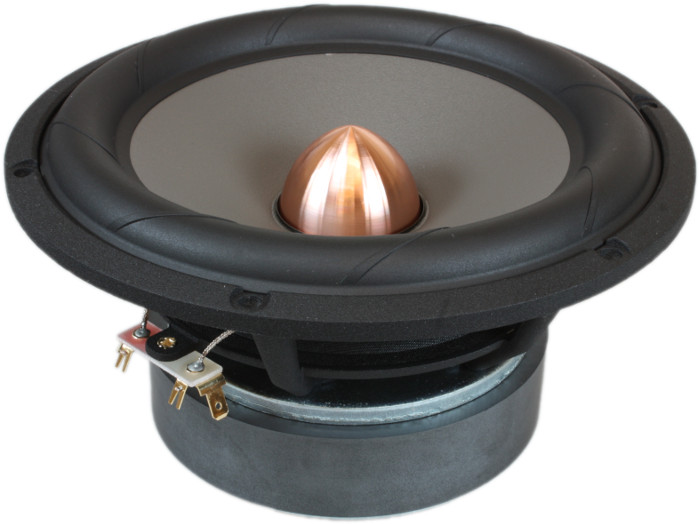

SEAS
