Wavecor SW223BD03 8Ω
LF DriverMedia
Wavecor
SW223BD03
Image unavailable
Overview
LF DriverSW223BD series
Wavecor
Wavecor SW223BD03
Wavecor SW223BD03 is a 8" 8 ohm LF driver. The validated T/S data includes Fs 25Hz, Qts 0.46, Vas 28L, Xmax 11.7mm, sensitivity 81.6dB, plus 241cm³ Vd and 52 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
Sensitivity
81.6dB
EBP
52
Either alignment
Vd
241cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA02 on-axis146 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA02 on-axis
Frequency response
146 plotted pointsMedium confidence925 selected pixels of 925
T/S Parameters
Valid
Fs25Hz
Qts0.46
Qes0.48
Qms10.2
Vas28.0L
Re6.0Ω
BL13.1Tm
Sd206cm²
Mms89g
Xmax11.7mm
SPL82dB
Impedance8Ω
Voice Coil51mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

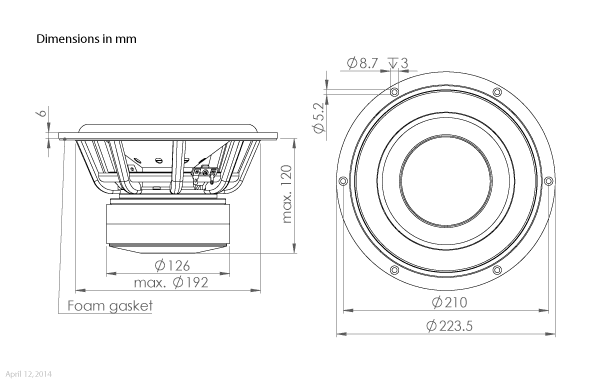

Dimensions & Physical
Diameter222.3mm
