Wavecor SW223BD02 4Ω
LF DriverMedia
Wavecor
SW223BD02
Image unavailable
Overview
LF DriverSW223BD series
Wavecor
Wavecor SW223BD02
Wavecor SW223BD02 is a 8" 4 ohm LF driver. The validated T/S data includes Fs 24Hz, Qts 0.40, Vas 28L, Xmax 11.7mm, sensitivity 81.7dB, plus 241cm³ Vd and 57 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
Sensitivity
81.7dB
EBP
57
Either alignment
Vd
241cm³
T/S Parameters
Valid
Fs24Hz
Qts0.40
Qes0.42
Qms10.7
Vas28.0L
Re3.5Ω
BL11.0Tm
Sd206cm²
Mms97g
Xmax11.7mm
SPL82dB
Impedance4Ω
Voice Coil51mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter222.3mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW223BD02
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
Dayton Audio
RSS210HO-4
8"
Xmax11mm-6%
Qts0.40%
BL12Tm+9%
Vas18.7L-33%
Qes0.46+10%
77%
Similarity
Dayton Audio
DCS205-4
8"
Xmax8.8mm-25%
Qts0.37-8%
BL10.7Tm-3%
Vas27L-4%
Qes0.4-5%
Image unavailable
75%
Similarity
Wavecor
SW223BD03
8"
Xmax11.7mm0%
Qts0.46+15%
BL13.1Tm+19%
Vas28L0%
Qes0.48+14%
Image unavailable
75%
Similarity
Wavecor
SW215WA02
8"
Xmax10mm-15%
Qts0.44+10%
BL11.4Tm+4%
Vas32.5L+16%
Qes0.46+10%
73%
Similarity

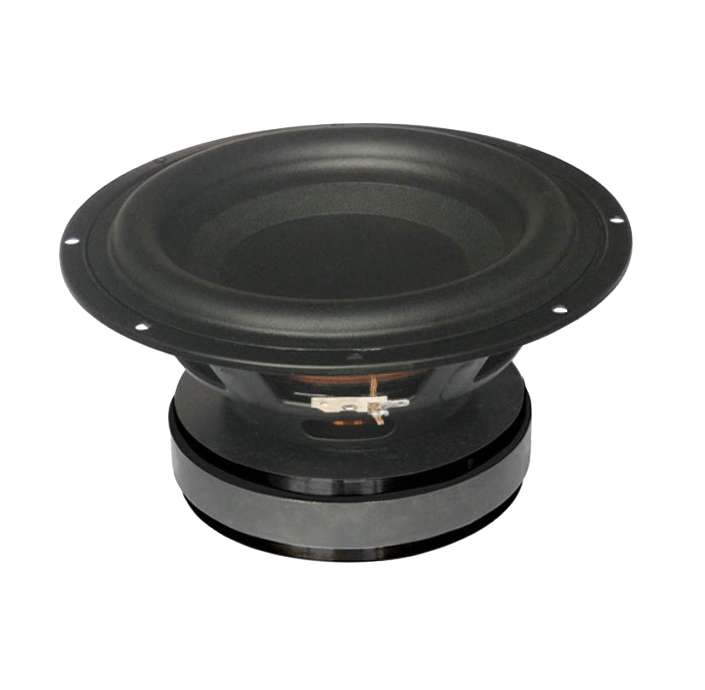

Tang Band
W8-1363SBF
8"
Xmax12mm+3%
Qts0.39-3%
BL13Tm+18%
Vas13.4L-52%
Qes0.43+2%
73%
Similarity

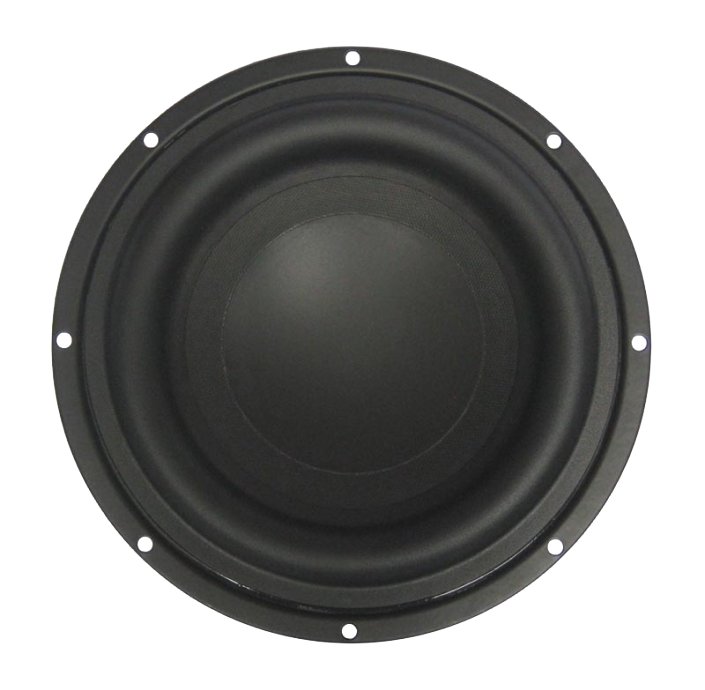

Tang Band
W8-1363SBF
8"
Xmax12mm+3%
Qts0.39-3%
BL13Tm+18%
Vas13.4L-52%
Qes0.43+2%
65%
Similarity
HiVi
D8G
8"
Xmax8.3mm-29%
Qts0.41+2%
BL13Tm+18%
Vas30.3L+8%
Qes0.48+14%
60%
Similarity
£226.56
Beyma
8NMFW
8"
Xmax9mm-23%
Qts0.34-15%
BL13.4Tm+22%
Vas27L-4%
Qes0.36-14%
58%
Similarity
£257.71

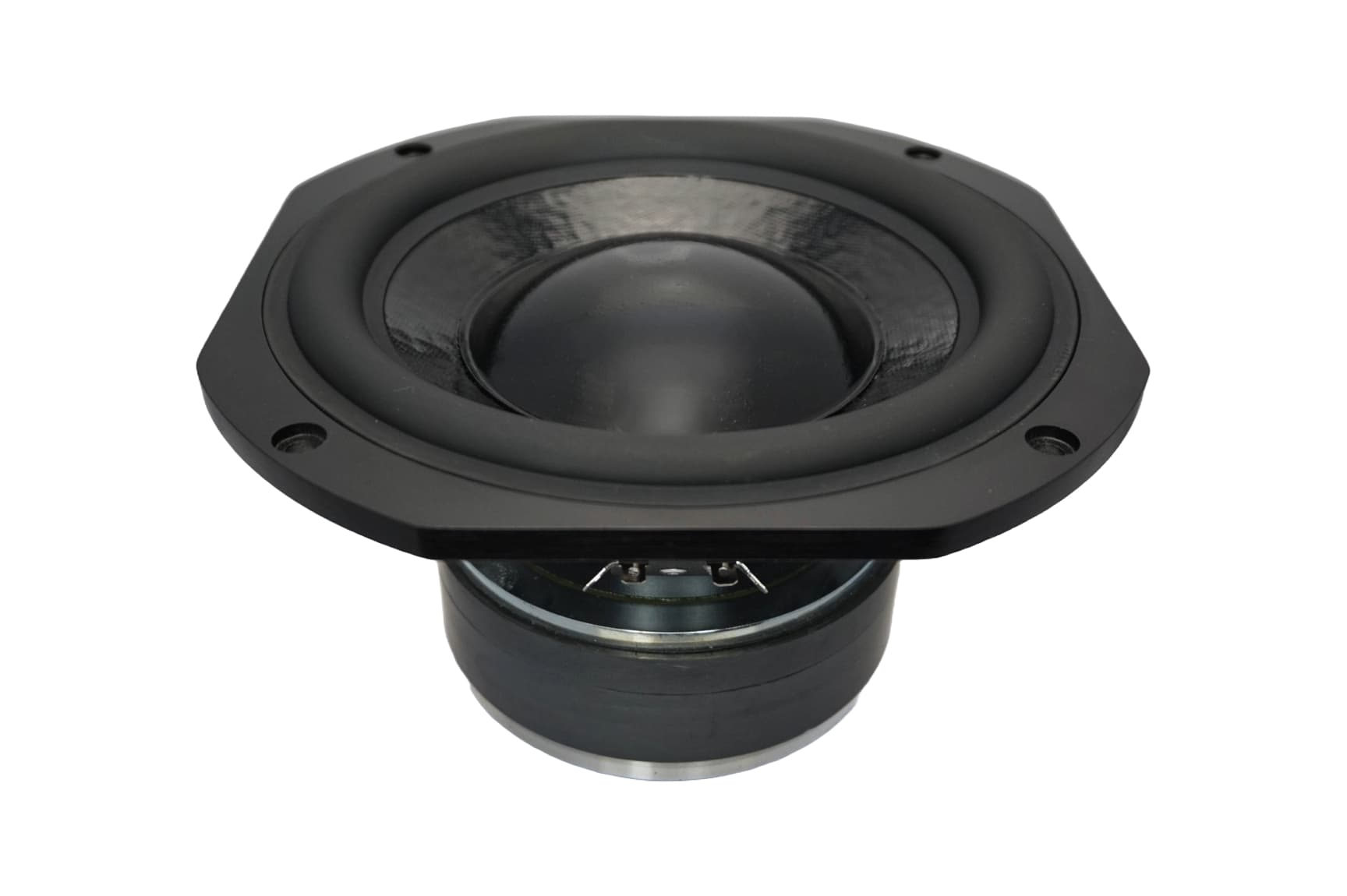

Volt
SB220.1
8"
Xmax12mm+3%
Qts0.49+22%
BL9.7Tm-12%
Vas37.4L+33%
Qes0.53+26%
56%
Similarity

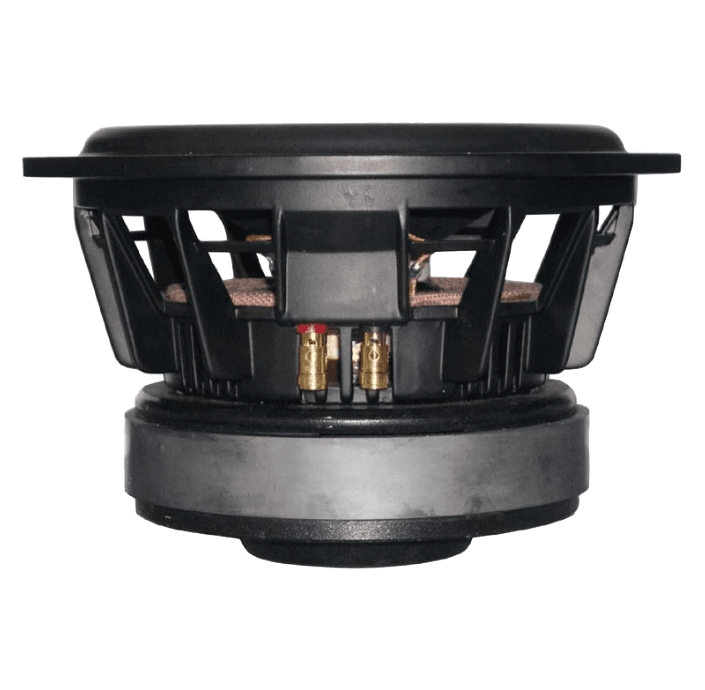

Tang Band
W8-740M
8"
Xmax12mm+3%
Qts0.34-15%
BL14.3Tm+30%
Vas14.7L-47%
Qes0.37-12%
Image unavailable
55%
Similarity
Wavecor
SW215WA01
8"
Xmax10mm-15%
Qts0.49+22%
BL8.4Tm-23%
Vas26L-7%
Qes0.51+21%
55%
Similarity

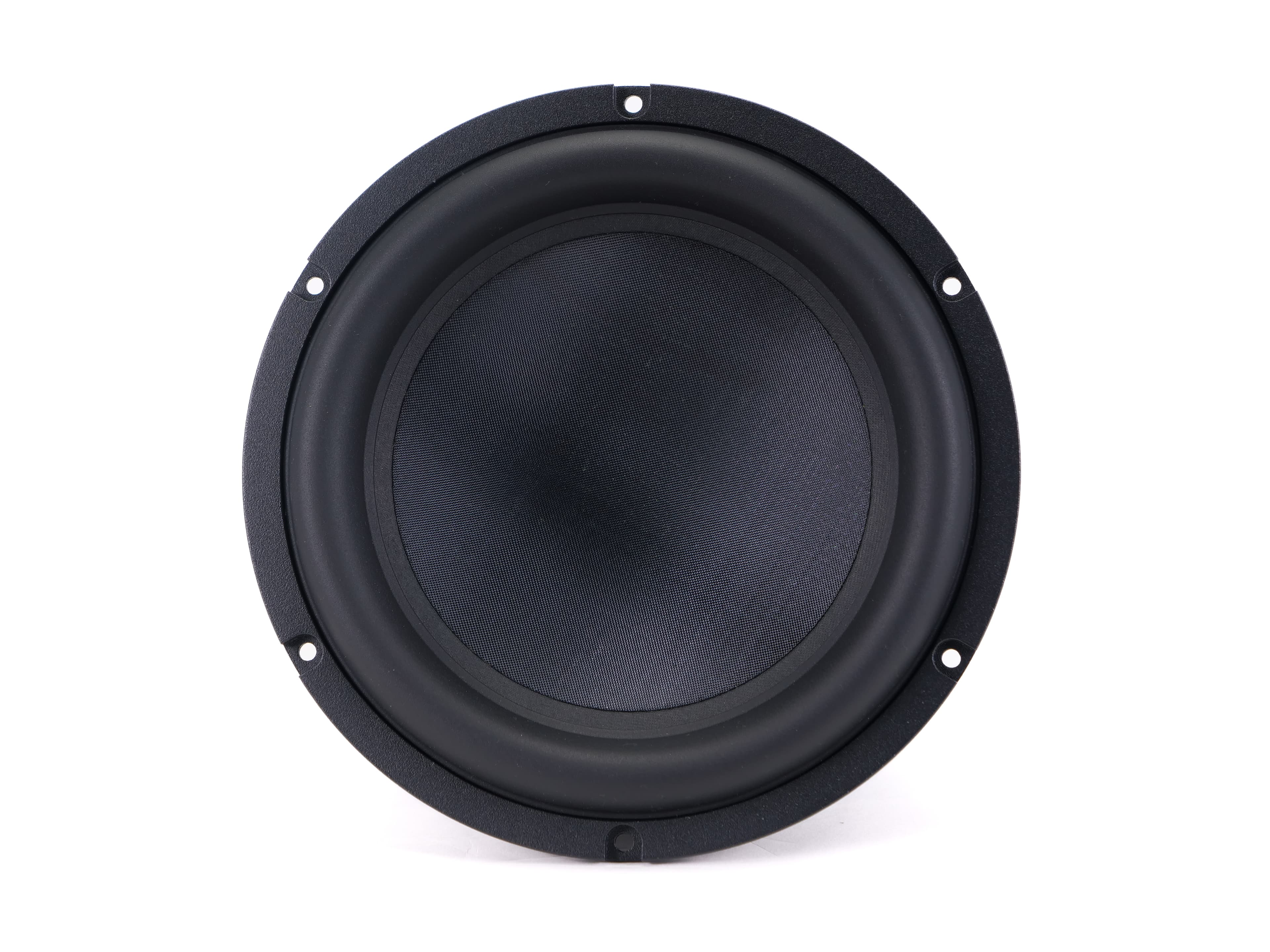

Kartesian
