Overview
LF DriverSB23 series
SB Acoustics
SB Acoustics SB23MFCL45-8
SB Acoustics SB23MFCL45-8 is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 29Hz, Qts 0.43, Vas 37L, Xmax 21mm, sensitivity 84.7dB, plus 441cm³ Vd and 62 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £117.27.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
84.7dB
EBP
62
Either alignment
Vd
441cm³

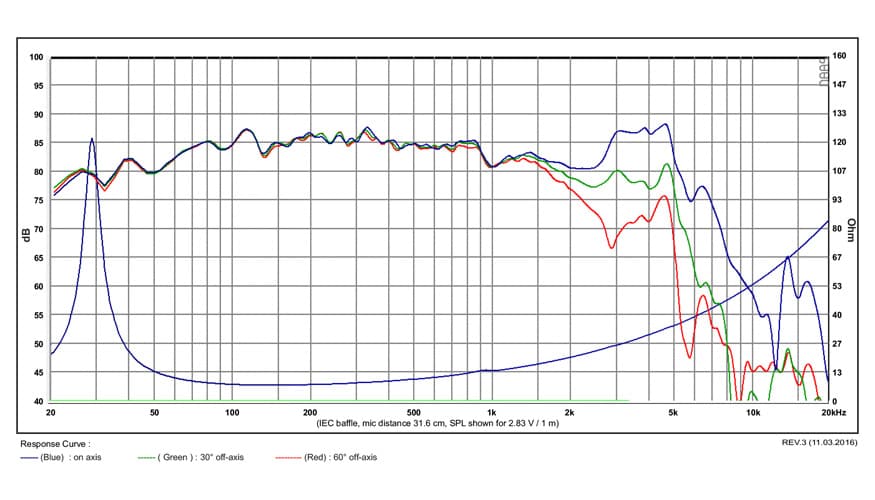

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,167 selected pixels of 11,119 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,364 selected pixels of 2,697
T/S Parameters
Valid
Fs29Hz
Qts0.43
Qes0.46
Qms7.3
Vas37.0L
Re6.2Ω
Le1.02mH
BL11.3Tm
Sd210cm²
Mms53g
Xmax21.0mm
SPL85dB
Power150W
Impedance8Ω
Voice Coil46mm
Flux Density1.03T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£117.27
inc VAT
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£133.13
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£150.95
inc VAT
Best current price
Updated 11 Sept 2026
leanaudio
£117.27
Avg £128.50£11.23 below avg (-8.7%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
SB23MFCL45-8
8"
Best current price
£117.27
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
£117.27
SB Acoustics
SB23MFCL45-4
8"
Xmax24mm+14%
Qts0.34-21%
BL9.6Tm-15%
Vas37L0%
Qes0.36-22%
