Kartesian Bom185_vKi 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DrivervKi series
Kartesian

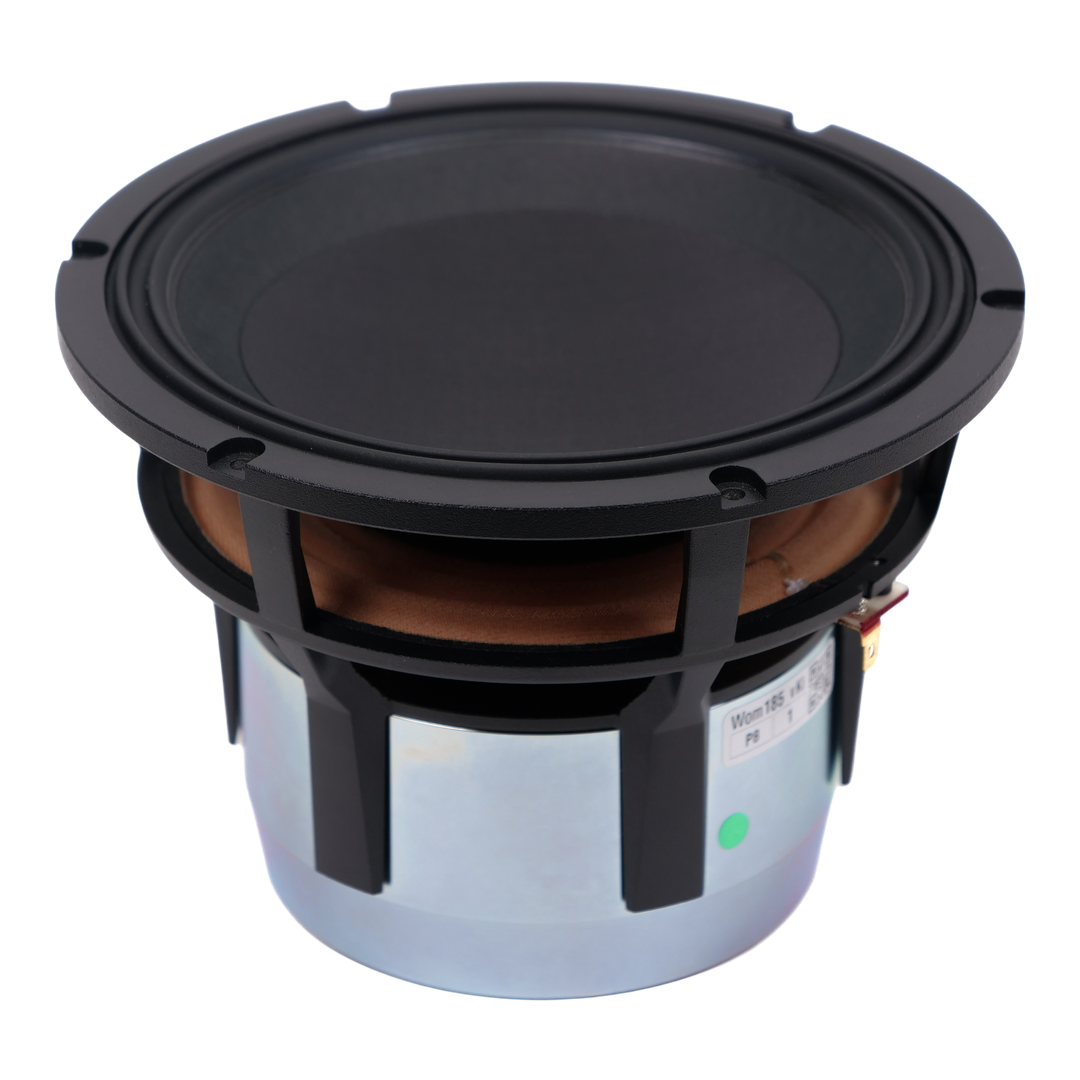

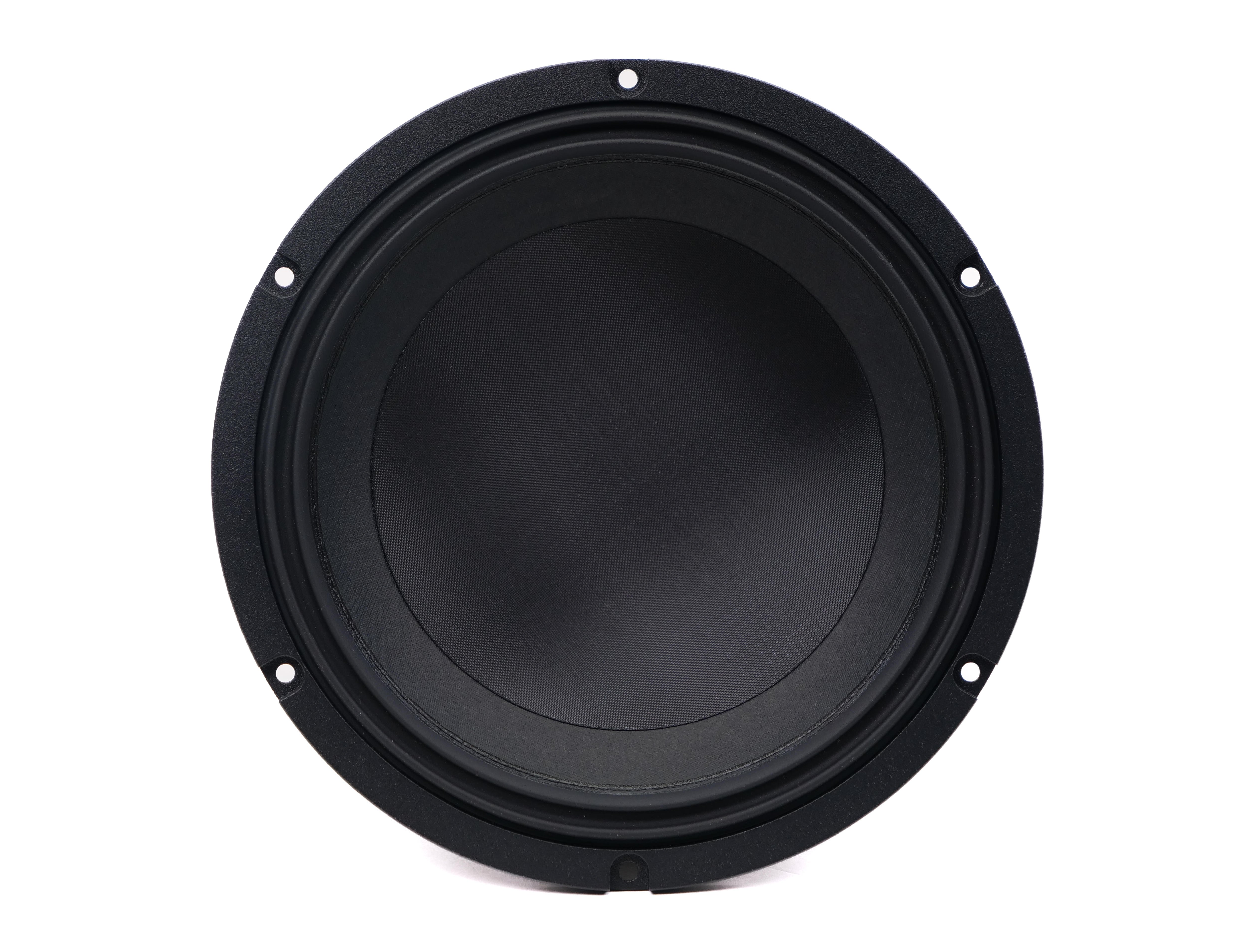

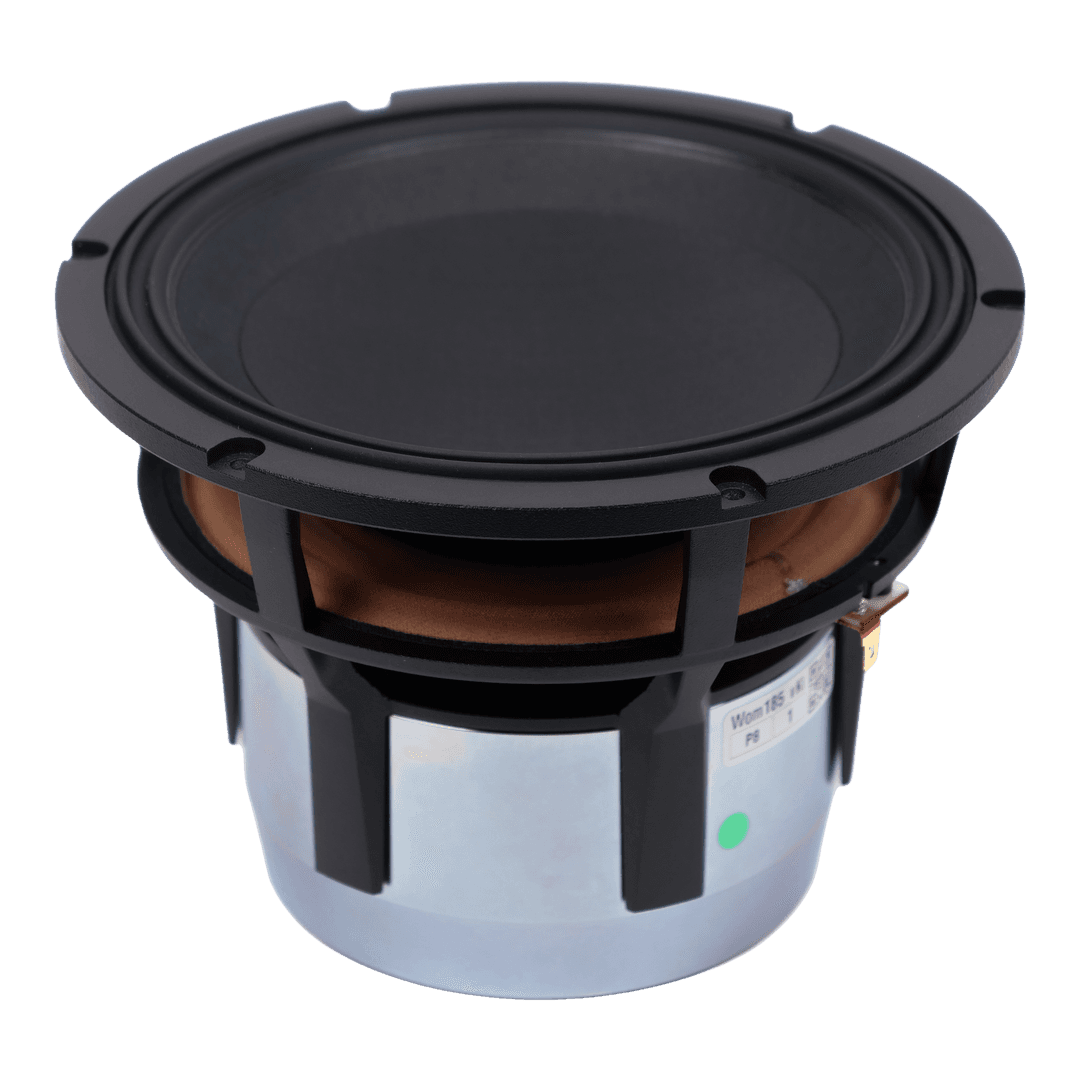

Kartesian Bom185_vKi
Kartesian Bom185_vKi is a 7.25" 8 ohm LF driver. The validated T/S data includes Fs 38Hz, Qts 0.32, Vas 32.2L, Xmax 10mm, sensitivity 89.2dB, plus 194cm³ Vd and 112 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7.25"
Impedance
8Ω
Sensitivity
89.2dB
EBP
112
Vented alignment
Vd
194cm³
T/S Parameters
Valid
Fs38Hz
Qts0.32
Qes0.34
Qms6.0
Vas32.2L
Re6.6Ω
Le0.10mH
BL11.6Tm
Sd194cm²
Mms29g
Xmax10.0mm
SPL89dB
Impedance8Ω
F Low40Hz
F High2000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter185.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Kartesian
Bom185_vKi
7.25"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity
Kartesian
Wom185_vKi
7.25"
Xmax12mm+20%
Qts0.320%
BL10.2Tm-12%
Vas33.6L+4%
Qes0.33-3%
64%
Similarity
£226.56
Beyma
8NMFW
8"
Xmax9mm-10%
Qts0.34+6%
BL13.4Tm+16%
Vas27L-16%
Qes0.36+6%
64%
Similarity
Purifi
PTT6.5X08-NFA-06
6.5"
Xmax9.8mm-2%
Qts0.34+6%
BL8.9Tm-23%
Vas26L-19%
Qes0.36+6%
61%
Similarity
£969.95
Scanspeak
18WE/8542T00
7"
Xmax7.7mm-23%
Qts0.320%
BL9.7Tm-16%
Vas16L-50%
Qes0.340%
60%
Similarity
Accuton
AS168-9-470
6.5"
Xmax8mm-20%
Qts0.35+9%
BL12.1Tm+4%
Vas35.5L+10%
Qes0.38+12%
58%
Similarity
CIARE
HSG200
8"
Xmax7.5mm-25%
Qts0.31-3%
BL11.8Tm+2%
Vas19L-41%
Qes0.33-3%
58%
Similarity
CIARE
HSG200-4
8"
Xmax7.5mm-25%
Qts0.31-3%
BL11.8Tm+2%
Vas19L-41%
Qes0.33-3%
57%
Similarity
Kartesian
Lom185_vKi
7.25"
Xmax8mm-20%
Qts0.25-22%
BL10.4Tm-10%
Vas29L-10%
Qes0.26-24%
55%
Similarity
Dayton Audio
DCS205-4
8"
Xmax8.8mm-12%
Qts0.37+16%
BL10.7Tm-8%
Vas27L-16%
Qes0.4+18%
55%
Similarity
Purifi
PTT6.5X04-NFA-06
6.5"
Xmax9.8mm-2%
Qts0.29-9%
BL7.9Tm-32%
Vas25.9L-20%
Qes0.3-12%
55%
Similarity
£139.87
FaitalPRO
8RS340
8"
Xmax7.3mm-27%
Qts0.34+6%
BL13Tm+12%
Vas25.5L-21%
Qes0.36+6%
51%
Similarity

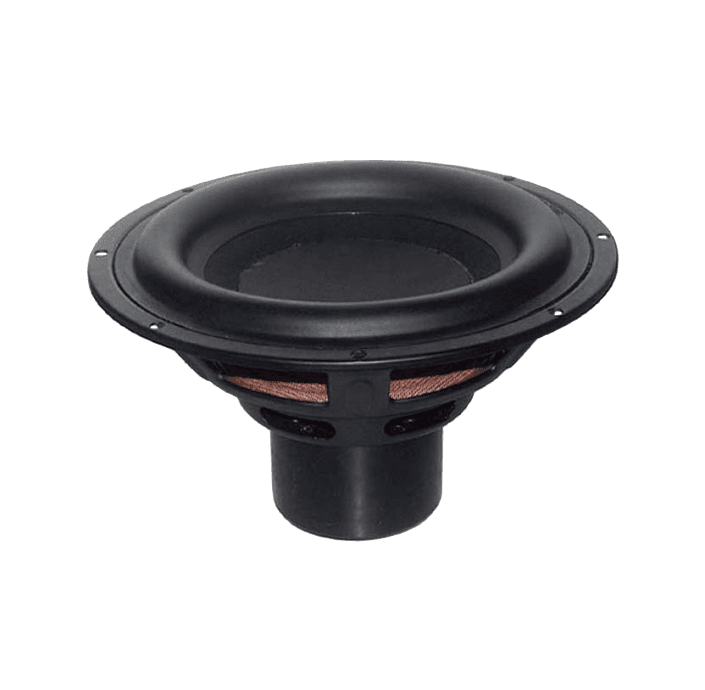

Tang Band
