Name: B&C 6MBX44 8 Ohm
Brand: B&C
SKU: 6MBX44
Availability: InStock

Media

B&C 6MBX44 6.5 inch 8 ohm loudspeaker driver view 1

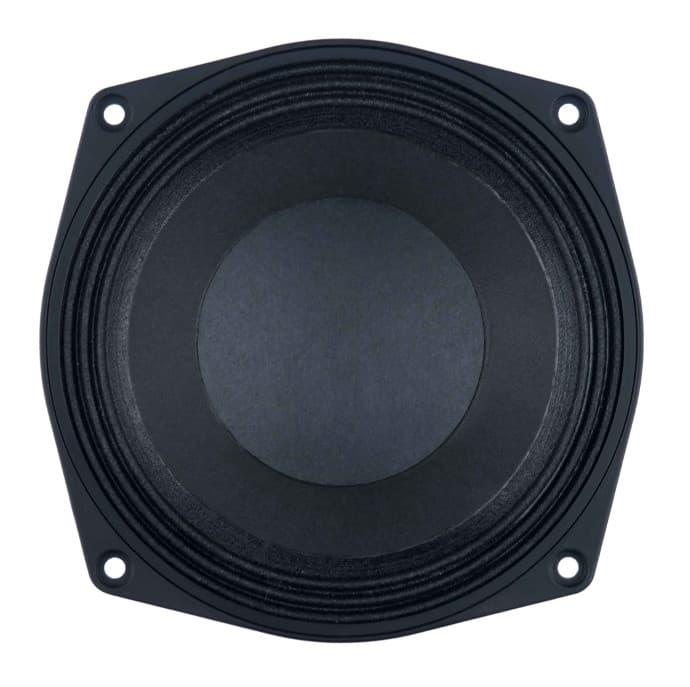

B&C 6MBX44 6.5 inch 8 ohm loudspeaker driver view 2

B&C 6MBX44 6.5 inch 8 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF Driver6MBX series

B&C

B&C 6MBX44

B&C 6MBX44 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 113Hz, Qts 0.31, Vas 4.1L, Xmax 3.5mm, sensitivity 94.4dB, plus 46cm³ Vd and 332 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £74.45.

Size

6.5"

Impedance

8Ω

RMS Power

200W

Sensitivity

94.4dB

98.0dBmanufacturer; using T/S-derived value (3.6dB delta).

EBP

332

Vented alignment

V_d

46cm³

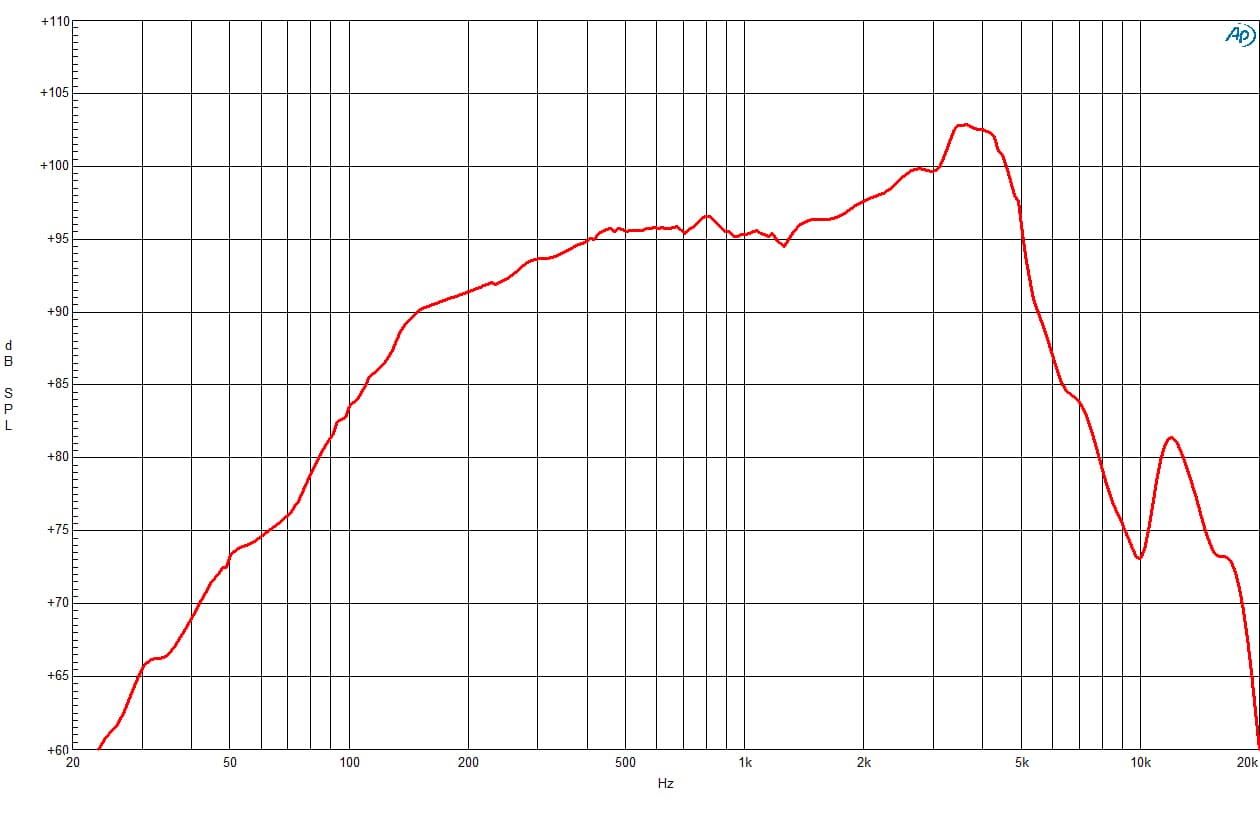

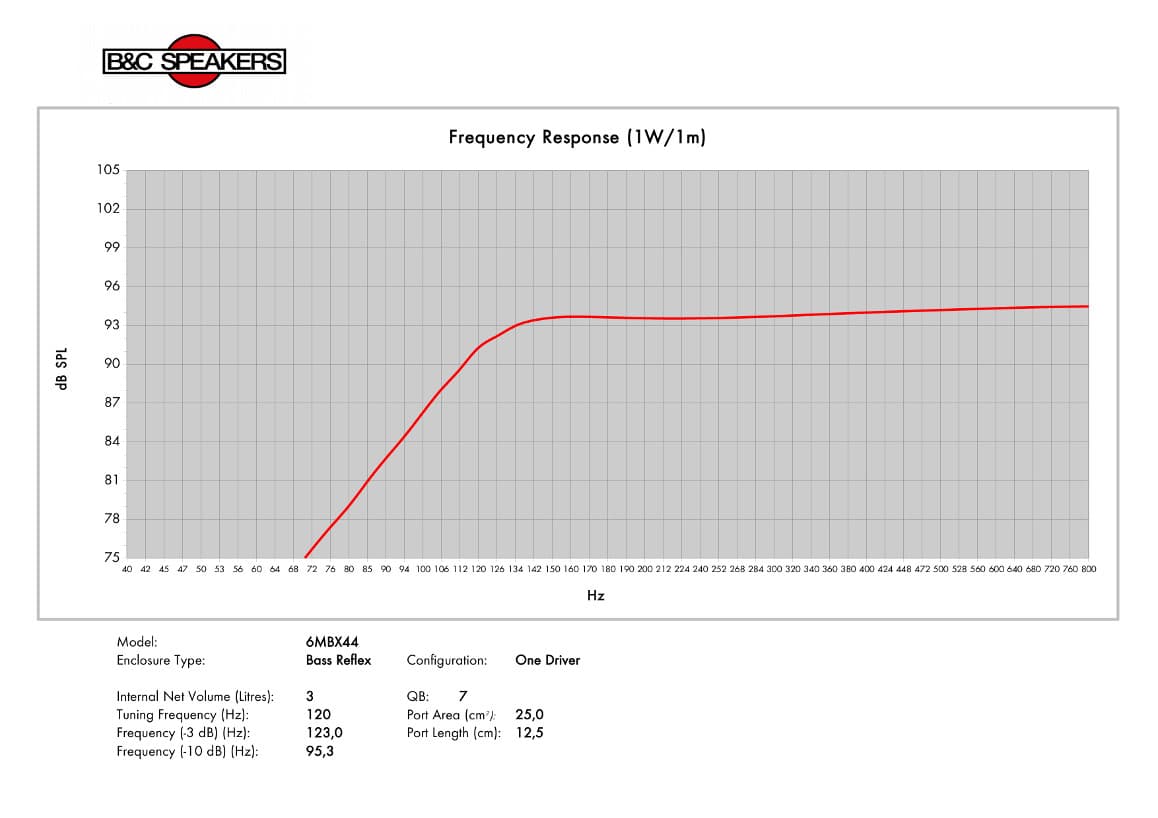

Frequency response

Manufacturer-provided response plots and related charts.

2 images

T/S Parameters

Valid

Canonical

Fs113Hz

Qts0.31

Qes0.34

Qms3.9

Vas4.1L

Re5.4Ω

Le0.20mH

BL11.7Tm

Sd132cm²

Mms12g

Xmax3.5mm

SPL94dB

Power200W

Power Nominal200W

Impedance8Ω

Min Impedance6.0Ω

F Low115Hz

F High5000Hz

Voice Coil44mm

Flux Density1.55T

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£74.45

inc VAT·Vendor hidden

View vendor

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight1.6kg

Diameter187.0mm

Overall Depth87.0mm

Cutout Diameter145.0mm

Bolt Circle Diameter172.0mm

Additional Manufacturer Specs

Bl11.7 Tm

Fs113 Hz

Le0.2 mH

Re5.4 Ω

Sd132 cm² (20.46 in²)

Ebp332 Hz

Mms12 g

Qes0.34

Qms3.9

Qts0.31

Vas4.1 dm³ (0.14 ft³)

η01.4 %

ConeRCK06MBX448

Xmax3.5 mm

Xvar3 mm

SpiderSingle

Cone ShapeExponential

Pole DesignT-Pole

Winding Depth10 mm (0.37 in)

Surround ShapeTriple Roll

Former MaterialGlass Fibre

Magnet MaterialNeodymium Ring

Nominal Diameter170 mm (6.5 in)

Winding MaterialAluminium

Magnetic Gap Depth6 mm (0.25 in)

Recommended Tuning120 Hz

Bolt Circle Diameter172 mm (6.7 in)

Recommended Enclosure3 dm³ (0.11 ft³)

Woofer Cone TreatmentWaterproof Impregnated Cone

Baffle Cutout Diameter145 mm (5.7 in)

Flange And Gasket Thickness11 mm (0.4 in)

Air Volume Occupied By Driver0.6 dm³ (0.02 ft³)
