Overview
LF Driver
Eighteen Sound
Eighteen Sound 6M44
Eighteen Sound 6M44 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 102Hz, Qts 0.29, Vas 3.8L, Xmax 2.3mm, sensitivity 93.2dB, plus 30cm³ Vd and 329 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
93.2dB
95.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
329
Vented alignment
Vd
30cm³

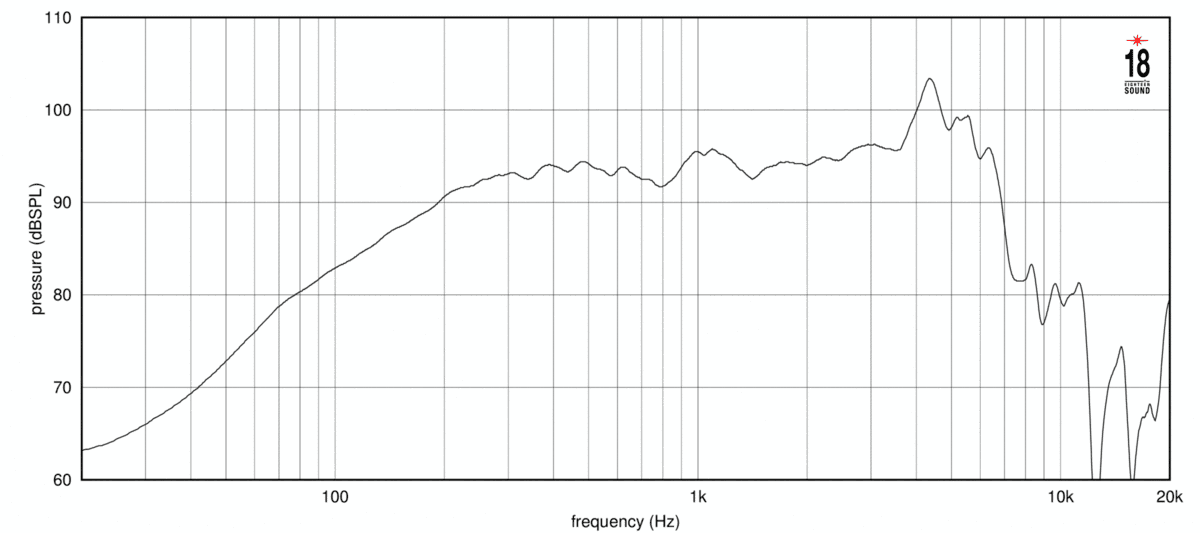

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence678 selected pixels of 940
T/S Parameters
Valid
Fs102Hz
Qts0.29
Qes0.31
Qms4.4
Vas3.8L
Re5.3Ω
Le0.32mH
BL13.4Tm
Sd132cm²
Mms16g
Xmax2.3mm
SPL93dB
Power200W
Power Nominal200W
Impedance8Ω
F Low140Hz
F High7000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.4kg
Diameter162.0mm
Overall Depth85.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter170.0mm
