Beyma 6P200ND 8Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Beyma
  4. /6P200ND

Media

Beyma 6P200ND 6.5 inch 8 ohm loudspeaker driver

Overview

LF Driver
Beyma

Beyma 6P200ND

Beyma 6P200ND is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 56Hz, Qts 0.29, Vas 11.9L, Xmax 5.5mm, sensitivity 90.2dB, plus 74cm³ Vd and 175 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £137.46.

Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
90.2dB
92.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
175
Vented alignment
Vd
74cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
11098877664501002005001k2k5k10kHzdBfrequency response
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v1
    240 plotted pointsMedium confidence3,569 selected pixels of 3,569
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v1
    240 plotted pointsMedium confidence3,641 selected pixels of 3,641
    Manufacturer datasheet, page 2

Frequency response

Manufacturer-provided response plots and related charts.

1 image
Beyma 6P200ND response graph 1

T/S Parameters

Valid
Canonical
Fs56Hz
Qts0.29
Qes0.32
Qms3.7
Vas11.9L
Re5.3Ω
Le0.60mH
BL10.5Tm
Sd135cm²
Mms17g
Xmax5.5mm
SPL90dB
Power200W
Impedance8Ω
F Low60Hz
F High9000Hz
What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

Updated 24 Sept 2026

partsexpress
£137.46
inc VAT·1 in stock
Buy now

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight1.9kg

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
Beyma 6P200ND 6.5 inch 8 ohm loudspeaker driver similar-driver reference
Reference
Beyma
6P200ND
6.5"
Best current price
£137.46
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

FaitalPRO 6FE400 6 inch 8 ohm loudspeaker driver similar driver
41%
Similarity
73% cheaper£37.20
FaitalPRO
6FE400
6"
Lower price
Xmax4.8mm-13%
Qts0.36+24%
BL10.5Tm0%
Vas5L-58%
Qes0.4+25%
HiVi F6 6 inch 8 ohm loudspeaker driver similar driver
41%
Similarity
69% cheaper£42.93
HiVi
F6
6"
Lower price
Xmax4.3mm-22%
Qts0.35+21%
BL9Tm-14%
Vas16.4L+38%
Qes0.38+19%
Scanspeak 15W/8434G00 6 inch 8 ohm loudspeaker driver similar driver
46%
Similarity
56% cheaper£60.12
Scanspeak
15W/8434G00
6"
Lower price
Xmax4.2mm-24%
Qts0.25-14%
BL7.3Tm-30%
Vas12.8L+8%
Qes0.27-16%
Monacor SPH-6M 6.5 inch 8 ohm loudspeaker driver similar driver
62%
Similarity
52% cheaper£65.95
Monacor
SPH-6M
6.5"
Lower price
Xmax4mm-27%
Qts0.3+3%
BL9.7Tm-8%
Vas17.6L+48%
Qes0.35+9%
SB Audience ROSSO-6MW150D 6 inch 8 ohm loudspeaker driver similar driver
68%
Similarity
51% cheaper£67.15
SB Audience
ROSSO-6MW150D
6"
Lower price
Xmax5.2mm-5%
Qts0.32+10%
BL11.6Tm+10%
Vas8.8L-26%
Qes0.33+3%
PRV Audio 6MB550FT 6 inch 8 ohm loudspeaker driver similar driver
59%
Similarity
51% cheaper£67.72
PRV Audio
6MB550FT
6"
Lower price
Xmax5.4mm-2%
Qts0.34+17%
BL9.8Tm-7%
Vas8.2L-31%
Qes0.38+19%

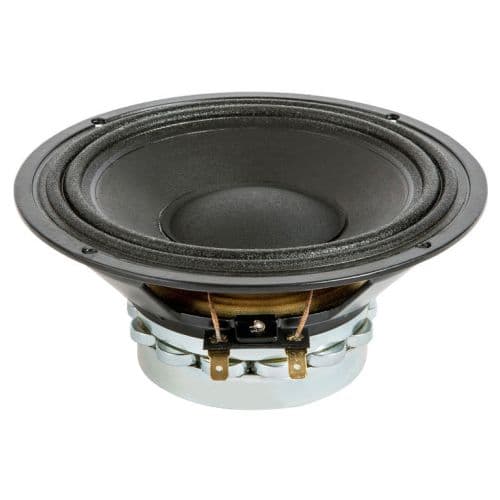

CIARE NDI6 6.5 inch 8 ohm loudspeaker driver similar driver
89%
Similarity
51% cheaper£67.97
CIARE
NDI6
6.5"
Lower price
Xmax5.3mm-4%
Qts0.290%
BL10.8Tm+3%
Vas8.5L-29%
Qes0.320%
Lavoce WAN061.80 6.5 inch 8 ohm loudspeaker driver similar driver
85%
Similarity
40% cheaper£83.14
Lavoce
WAN061.80
6.5"
Lower price
Xmax5.2mm-5%
Qts0.27-7%
BL10.9Tm+4%
Vas11.2L-6%
Qes0.29-9%
FaitalPRO 6PR160 6 inch 8 ohm loudspeaker driver similar driver
57%
Similarity
38% cheaper£85.36
FaitalPRO
6PR160
6"
Lower price
Xmax5mm-9%
Qts0.33+14%
BL11Tm+5%
Vas5.9L-50%
Qes0.35+9%
B&C 6PS44 6.5 inch 8 ohm loudspeaker driver similar driver
64%
Similarity
37% cheaper£86.62
B&C
6PS44
6.5"
Lower price
Xmax4.5mm-18%
Qts0.33+14%
BL11Tm+5%
Vas7L-41%
Qes0.34+6%
FaitalPRO 6RS140 6 inch 8 ohm loudspeaker driver similar driver
72%
Similarity
37% cheaper£86.89
FaitalPRO
6RS140
6"
Lower price
Xmax5.6mm+2%
Qts0.27-7%
BL11Tm+5%
Vas9.3L-22%
Qes0.28-12%
Beyma 6P200FE 6.5 inch 8 ohm loudspeaker driver similar driver
80%
Similarity
35% cheaper£89.32
Beyma
6P200FE
6.5"
Lower price
Xmax5mm-9%
Qts0.26-10%
BL10.5Tm0%
Vas11.1L-7%
Qes0.27-16%
