LF DriverFXI series
CIARE
CIARE FXI6
CIARE FXI6 is a 6.5" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 70Hz, Qts 0.33, Vas 8L, Xmax 5.3mm, sensitivity 90.7dB, plus 73cm³ Vd and 189 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
450W
Sensitivity
90.7dB
92.5dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
189
Vented alignment
Vd
73cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,256 selected pixels of 2,256 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence1,987 selected pixels of 1,987
T/S Parameters
Valid
Fs70Hz
Qts0.33
Qes0.37
Qms3.2
Vas8.0L
Re5.5Ω
Le0.70mH
BL10.6Tm
Sd137cm²
Mms17g
Xmax5.3mm
SPL91dB
Power450W
Power Nominal220W
Impedance8Ω
F Low80Hz
F High4500Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.5kg
Diameter165.0mm
Overall Depth77.5mm
Cutout Diameter145.0mm
Bolt Circle Diameter154.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
FXI6
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity
£86.62
B&C
6PS44
6.5"
Xmax4.5mm-15%
Qts0.330%
BL11Tm+4%
Vas7L-12%
Qes0.34-8%
83%
Similarity
£67.34
PRV Audio
6MB550FT
6"
Xmax5.4mm+2%
Qts0.34+3%
BL9.8Tm-8%
Vas8.2L+3%
Qes0.38+3%
79%
Similarity

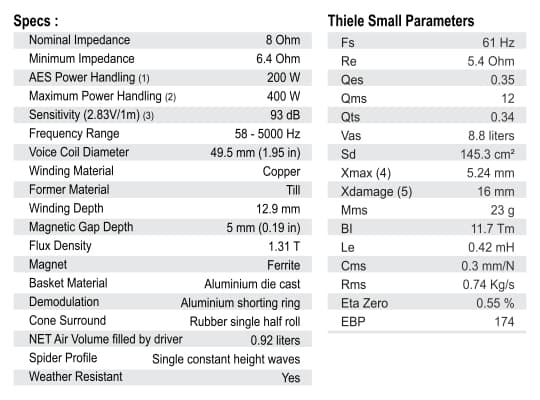

SB Audience
ROSSO-6C200D
6"
Xmax5.2mm-1%
Qts0.34+3%
BL11.7Tm+10%
Vas8.8L+10%
Qes0.35-5%
79%
Similarity
£86.00
B&C
6PS38
6.5"
Xmax6mm+13%
Qts0.3-9%
BL10.8Tm+2%
Vas8L0%
Qes0.31-16%
77%
Similarity
£67.15
SB Audience
ROSSO-6MW150D
6"
Xmax5.2mm-1%
Qts0.32-3%
BL11.6Tm+9%
Vas8.8L+10%
Qes0.33-11%
77%
Similarity
SB Audience
ROSSO-6MW151D
6"
Xmax5.2mm-1%
Qts0.32-3%
BL11.6Tm+9%
Vas8.8L+10%
Qes0.33-11%
77%
Similarity
£85.36
FaitalPRO
6PR160
6"
Xmax5mm-6%
Qts0.330%
BL11Tm+4%
Vas5.9L-26%
Qes0.35-5%
77%
Similarity

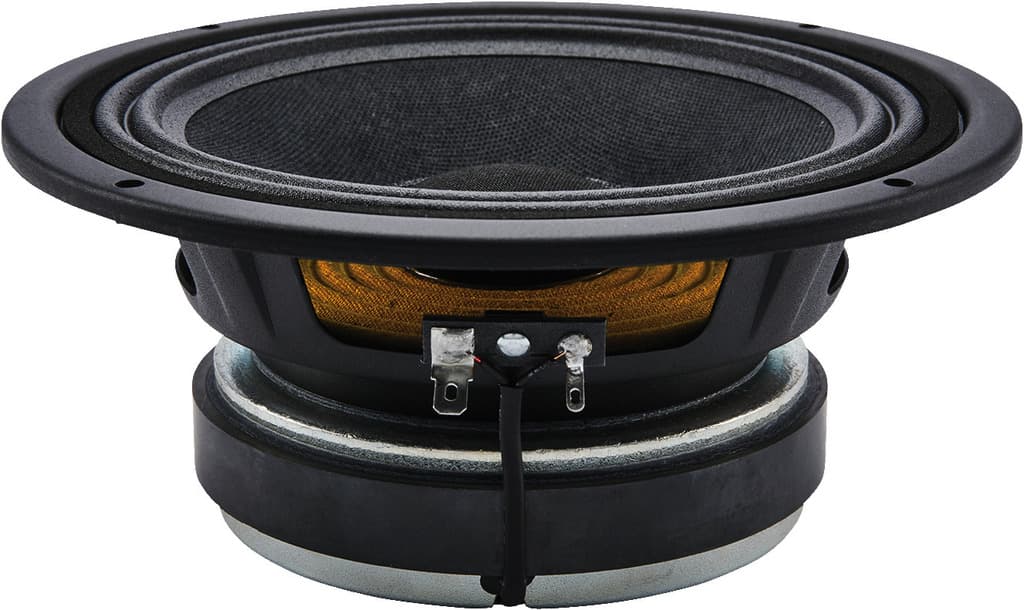

Monacor
TFX0615/8
6.5"
Xmax5.3mm-1%
Qts0.38+14%
BL9.8Tm-7%
Vas7.2L-10%
Qes0.43+16%
77%
Similarity

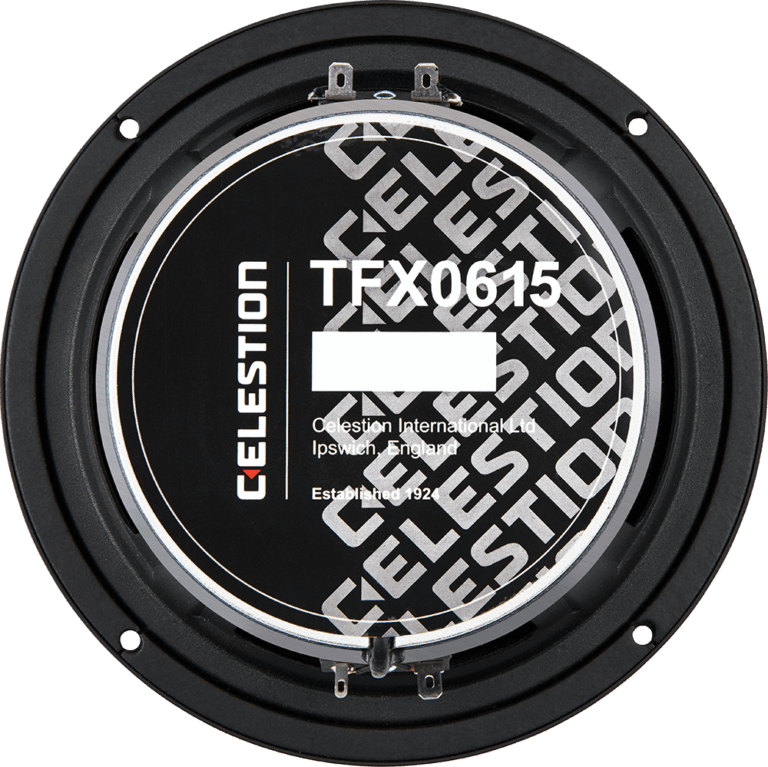

Celestion
TFX0615
6.5"
Xmax5.3mm-1%
Qts0.38+14%
BL9.8Tm-7%
Vas7.2L-10%
Qes0.43+16%
76%
Similarity
Beyma
106CX2FE8
6.5"
Xmax5mm-6%
Qts0.32-3%
BL9.2Tm-13%
Vas10.5L+32%
Qes0.34-8%
75%
Similarity
£26.27
Lavoce
WSF061.52
6.5"
Xmax3.8mm-28%
Qts0.34+3%
BL10.8Tm+2%
Vas6.6L-17%
Qes0.36-3%
75%
Similarity

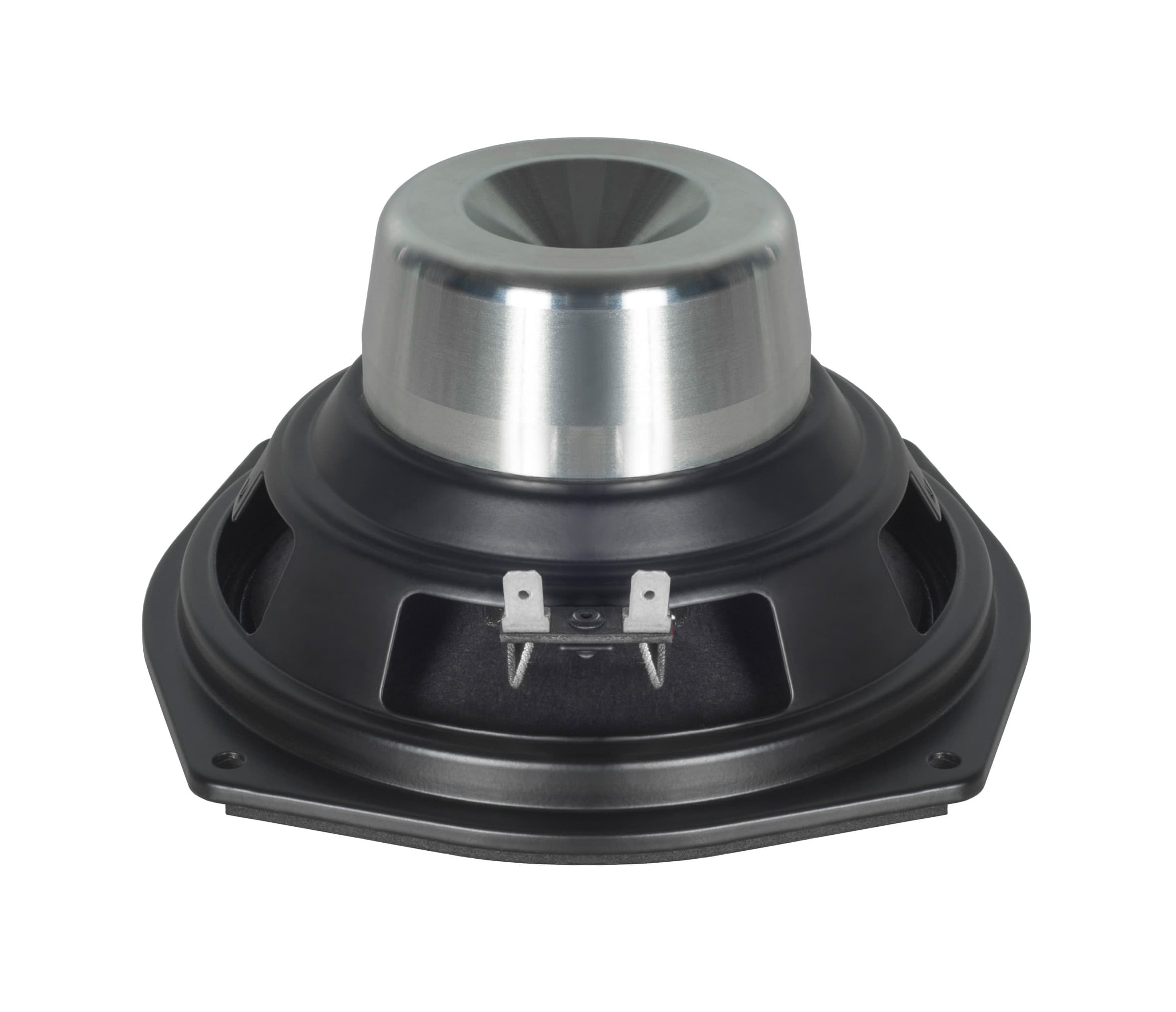

B&C
6CLA51
6.5"
Xmax4.8mm-9%
Qts0.32-3%
BL11.4Tm+8%
Vas4.3L-46%
Qes0.36-3%
