LF Driver
Sica

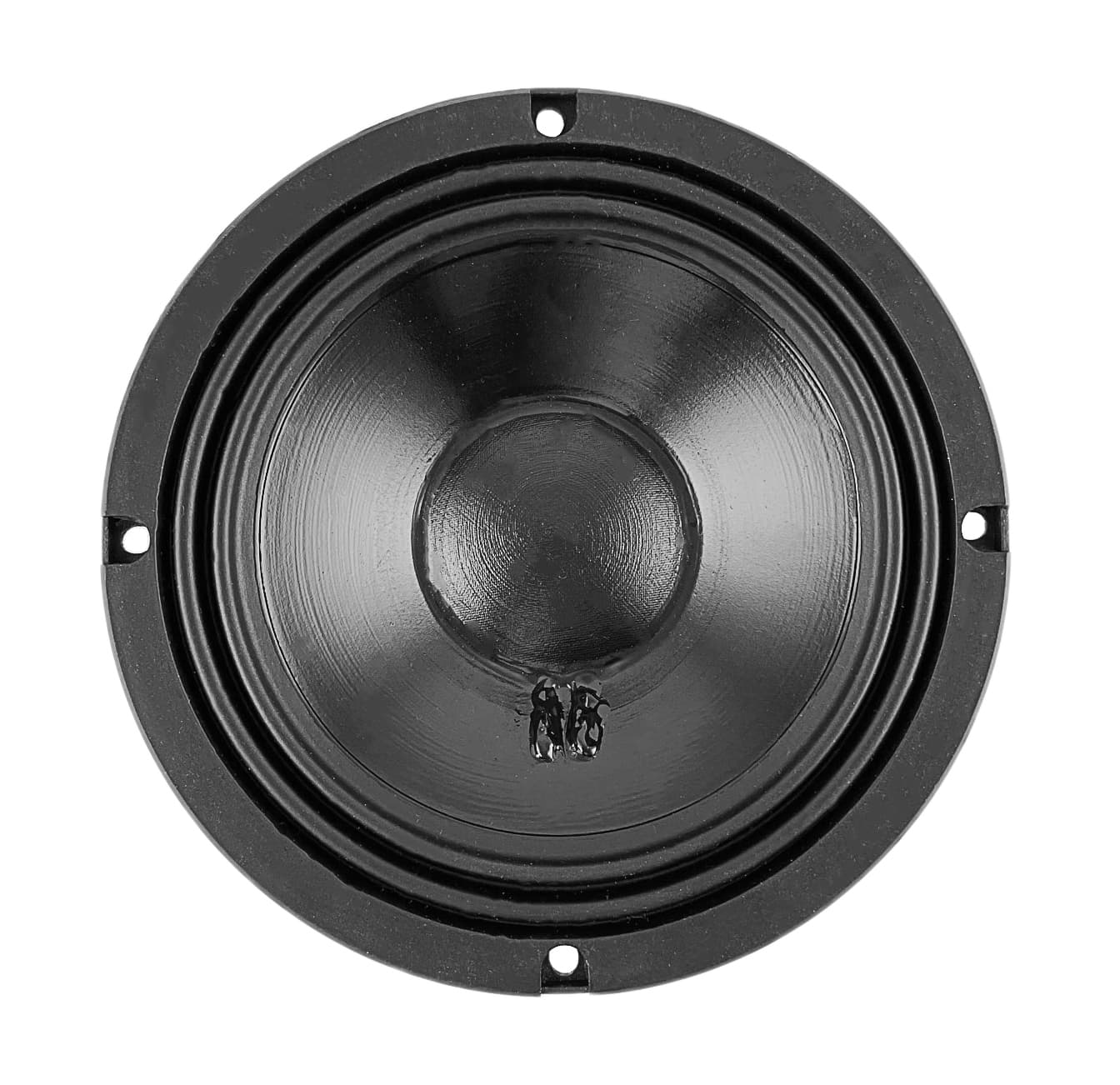

Sica 6 NR 2 PL
Sica 6 NR 2 PL is a 6" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 61Hz, Qts 0.33, Vas 9.4L, Xmax 4mm, sensitivity 89.9dB, plus 49cm³ Vd and 178 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
200W
Sensitivity
89.9dB
91.4dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
178
Vented alignment
Vd
49cm³
T/S Parameters
Valid
Fs61Hz
Qts0.33
Qes0.34
Qms6.0
Vas9.4L
Re5.6Ω
Le0.51mH
BL9.9Tm
Sd123cm²
Mms16g
Xmax4.0mm
SPL90dB
Power200W
Impedance8Ω
Voice Coil50mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter166.0mm
Overall Depth82.8mm
Cutout Diameter143.0mm
Bolt Circle Diameter155.0mm
