Overview
LF Driver
Tang Band

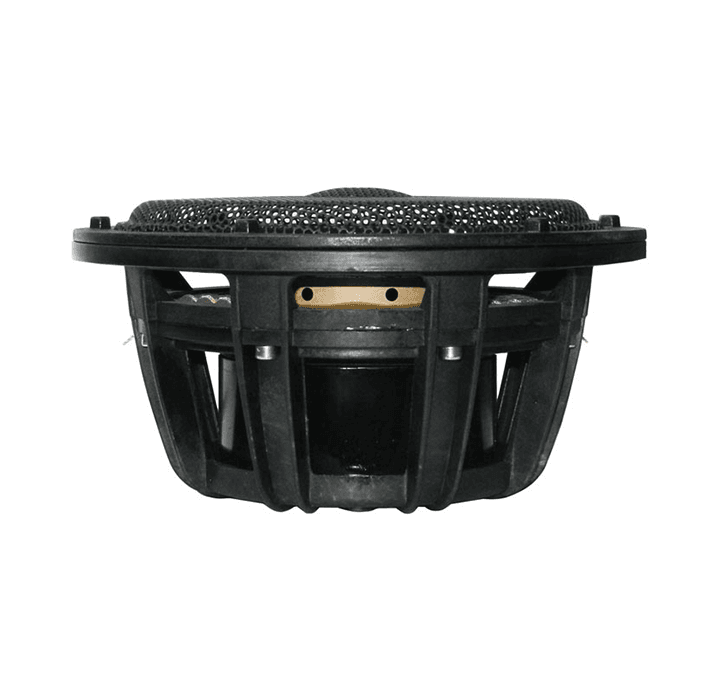

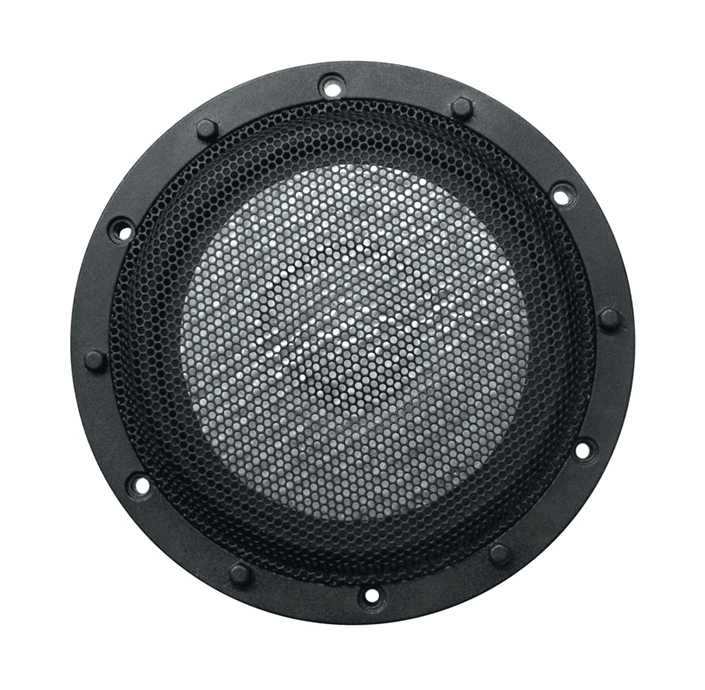

Tang Band W6-1914SB
Tang Band W6-1914SB is a 6" 8 ohm LF driver rated at 45W RMS. The validated T/S data includes Fs 70Hz, Qts 0.35, Vas 11.1L, Xmax 0.5mm, sensitivity 92.2dB, plus 7cm³ Vd and 189 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
45W
Sensitivity
92.2dB
91.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
189
Vented alignment
Vd
7cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,355 selected pixels of 2,619 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,529 selected pixels of 2,529
T/S Parameters
Valid
Fs70Hz
Qts0.35
Qes0.37
Qms7.2
Vas11.1L
Re6.5Ω
Le0.07mH
BL10.2Tm
Sd140cm²
Mms14g
Xmax0.5mm
SPL92dB
Power45W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
