Oberton 6NCX 8Ω
8 Ω · 75–18000 Hz
No current price
- Fs
- 89Hz
- Xmax
- 4.8mm
- SPL
- 93dB
- Pe
- 150W
- BL
- 9T·m
- Vd
- 62cm³
- Qts
- 0.36
- Vas
- 7L
Oberton 6NCX is a 6.5-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 89 Hz, Qts 0.36, Vas 7.0 L, Xmax 4.8 mm, sensitivity 93.1 dB, plus 62 cm³ Vd and 231 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 89Hz
- Qts
- 0.36
- Qes
- 0.39
- Qms
- 6.5
- Vas
- 7.0L
- Re
- 5.4Ω
- Le
- 0.35mH
Motor and cone
- BL
- 9T·m
- Sd
- 131cm²
- Mms
- 11g
- Xmax
- 4.8mm
- Vd †
- 62cm³
- Voice coil
- 44mm
- Flux density
- 0.97T

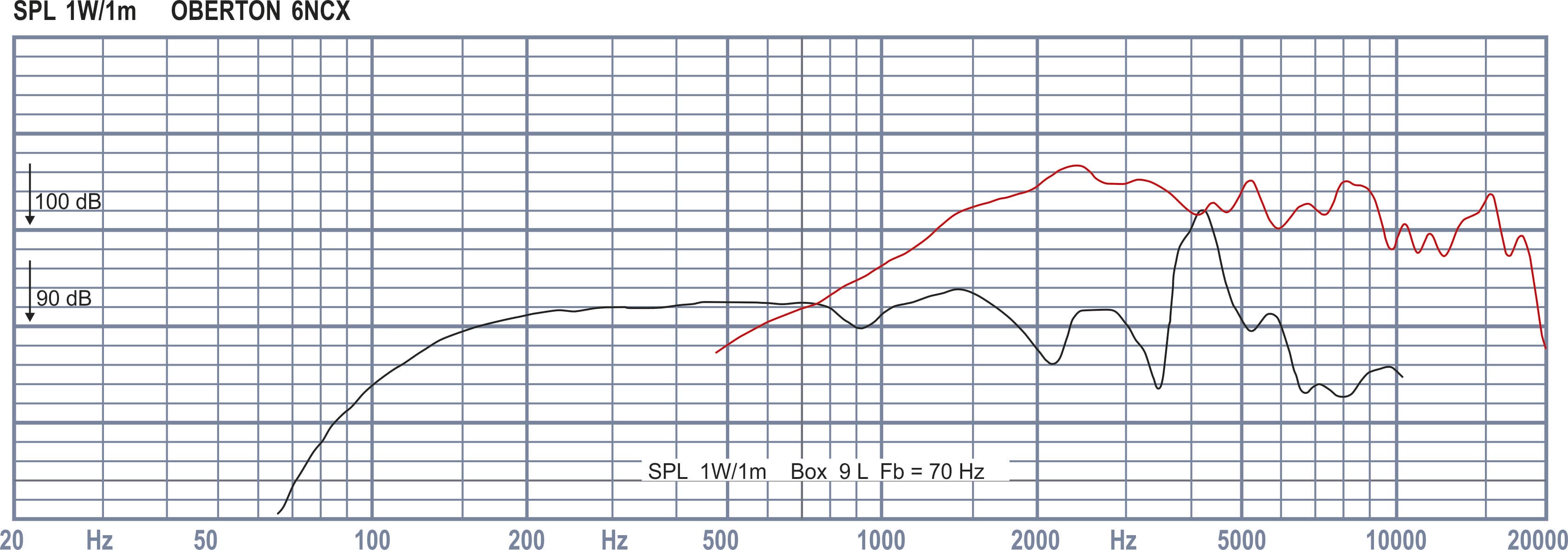

Power and response
- Sensitivity †
- 93.1dB
- Power
- 150W
- Impedance
- 8Ω
- Range
- 75–18000Hz
- EBP †
- 231 · Leans vented

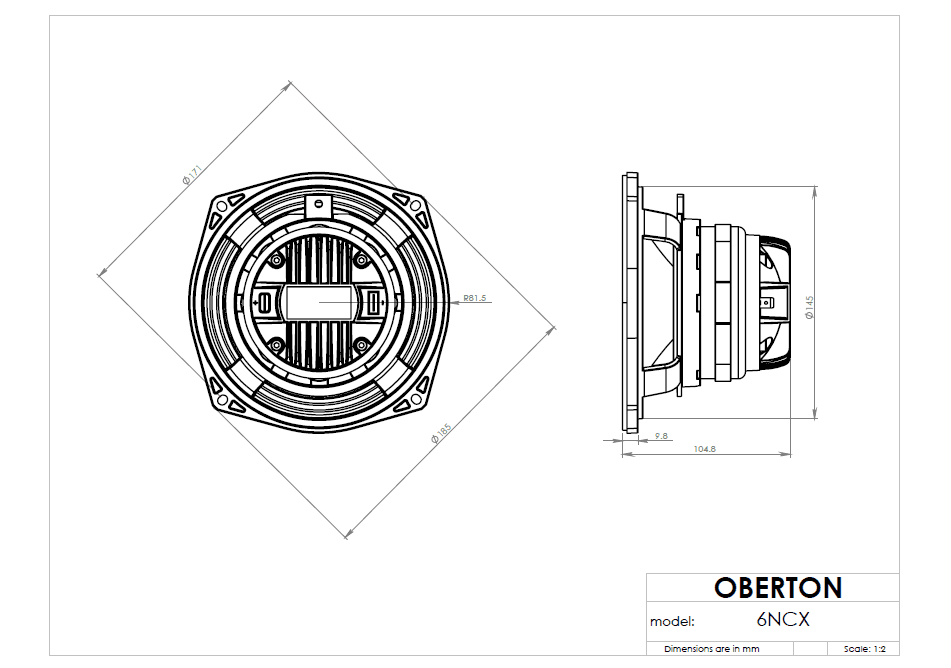

Size and mounting
- Diameter
- 185mm
- Cutout
- 145mm
- Bolt circle
- 171mm
- Depth
- 104.8mm
- Weight
- 1.6kg
Other published values
- Cms
- 0.27mm/N
- Power Program
- 300
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 6.5″
- BL
- 9T·m
- Fs
- 89Hz
- Le
- 0.35mH
- Re
- 5.4Ω
- Sd
- 131cm²
- Cms
- 0.27mm/N
- Mms
- 11g
- Qes
- 0.39
- Qms
- 6.5
- Qts
- 0.36
- SPL
- 93.1dB
- Vas
- 7.0L
- Xmax
- 4.8mm
- Power
- 150W
- Impedance
- 8Ω
- Flux density
- 0.97T
- Low limit
- 75Hz
- Power Program
- 300
- Calculated sensitivity †
- 93.1dB
- High limit
- 18000Hz
- Voice coil
- 44mm
- Weight
- 1.6kg
- Diameter
- 185mm
- Depth
- 104.8mm
- Cutout
- 145mm
- Bolt circle
- 171mm
