6.5-inch LF driver · WSN061 series · 38 mm voice coil · 125 W

Lavoce WSN061.52 8Ω

Name: Lavoce WSN061.52 8 Ohm
Brand: Lavoce
SKU: WSN061.52

8 Ω · 90–6000 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 90Hz
Xmax: 3.8mm
SPL: 92dB
Pe: 125W
BL: 9.9T·m
Vd: 50cm³
Qts: 0.39
Vas: 6L

See all 24 specs

Specifications

Published by Lavoce

Manufacturer page

Lavoce WSN061.52 is a 6.5-inch 8 ohm LF driver rated at 125 W RMS. The validated T/S data includes Fs 90 Hz, Qts 0.39, Vas 5.9 L, Xmax 3.8 mm, sensitivity 92.1 dB, plus 50 cm³ Vd and 214 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 90Hz
Qts: 0.39
Qes: 0.42
Qms: 5.3
Vas: 5.9L
Re: 5.6Ω
Le: 0.42mH

Motor and cone

BL: 9.9T·m
Sd: 132cm²
Mms: 13g
Xmax: 3.8mm
Vd †: 50cm³
Voice coil: 38mm

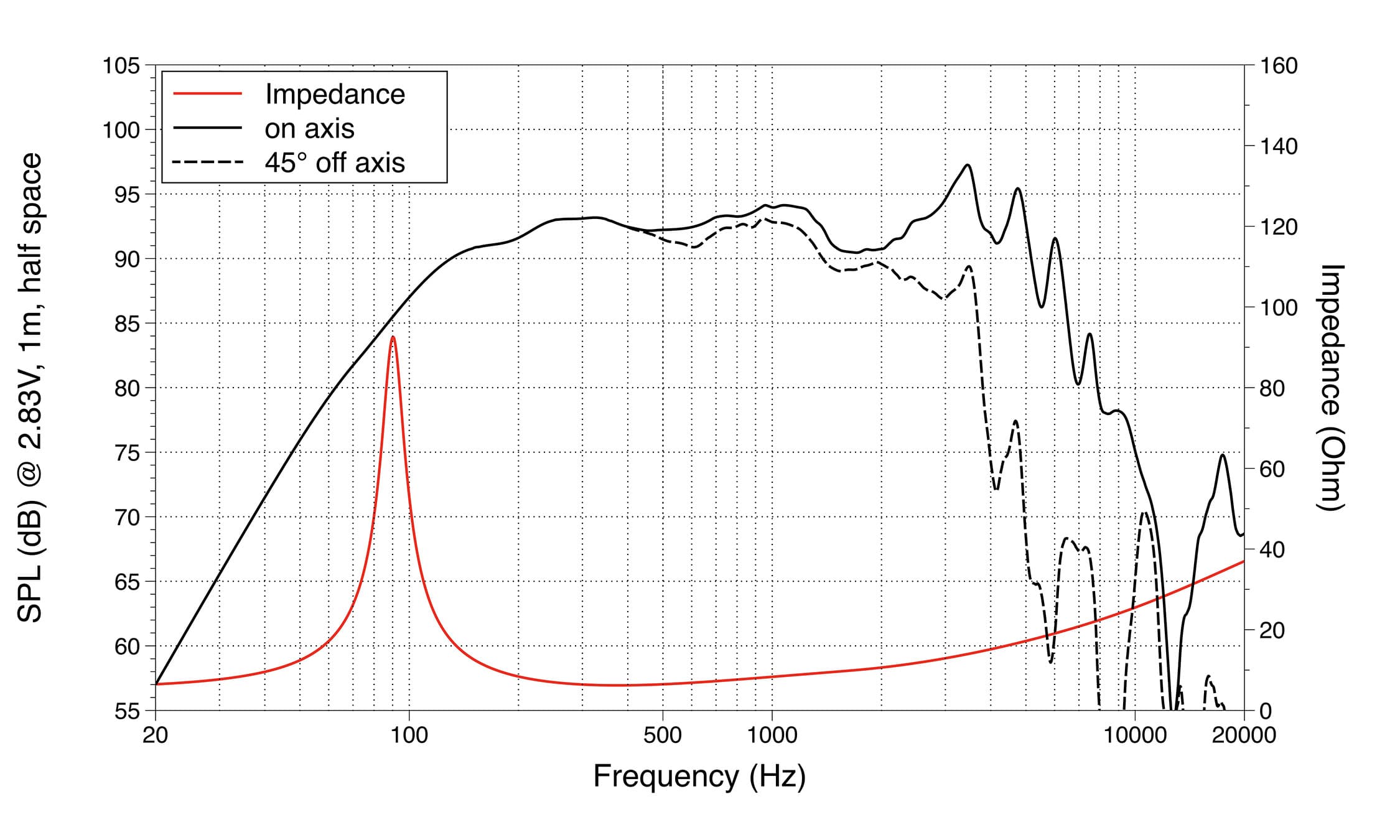

Power and response

Sensitivity †: 92.1dB
Manufacturer sensitivity: 94dB
Power: 125W
Impedance: 8Ω
Min. impedance: 6.4Ω
Range: 90–6000Hz
EBP †: 214 · Leans vented

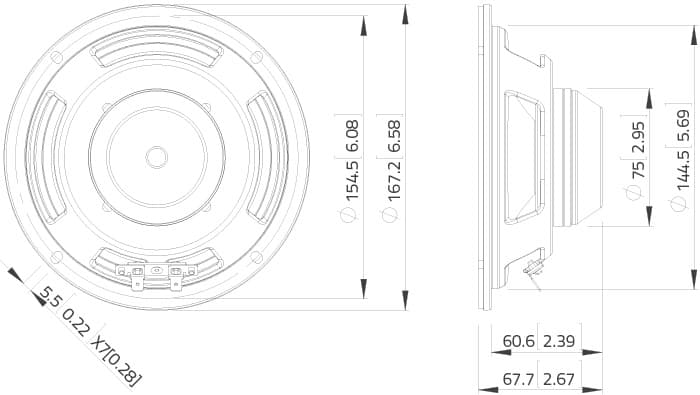

Size and mounting

Weight: 0.9kg

Other published values

Cms: 0.24mm/N
Xmech: 6.3
Power Program: 250

Sensitivity shows 92.1 dB, calculated from the T/S values. Lavoce publishes 94.0 dB, 1.9 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Lavoce lists

LF · Primary · 6.5″

BL: 9.9T·m
Fs: 90Hz
Le: 0.42mH
Re: 5.6Ω
Sd: 132cm²
Cms: 0.24mm/N
Mms: 13g
Qes: 0.42
Qms: 5.3
Qts: 0.39
SPL: 92.1dB
Vas: 5.9L
Xmax: 3.8mm
Xmech: 6.3
Power: 125W
Impedance: 8Ω
Sensitivity: 94dB
Low limit: 90Hz
Power Program: 250
Calculated sensitivity †: 92.1dB
High limit: 6000Hz
Manufacturer sensitivity: 94dB
Min. impedance: 6.4Ω
Voice coil: 38mm
Weight: 0.9kg

Compare

Same-size drivers, compared with the WSN061.52. Clear differences are green when better and red when worse.

This driverWSN061.52

Best price

–

90 Hz

Qts

0.39

Vas

5.9 L

9.9 T·m

Xmax

3.8 mm

Sensitivity

92.1 dB

Power

125 W

HiViM6N

£20.93

Fs46 Hz −49%

Qts0.39 –

Vas21.9 L +270%

BL7.8 T·m −21%

Xmax4.3 mm +13%

Sensitivity89.1 dB −3

LavoceWSF061.52

£26.27

Fs91 Hz –

Qts0.34 −13%

Vas6.6 L +12%

BL10.8 T·m +9%

Xmax3.8 mm –

Sensitivity93.4 dB +1.3

PeerlessSLS-P830946

£37.03

Fs47 Hz −48%

Qts0.43 +10%

Vas6.0 L –

BL8.5 T·m −14%

Xmax10.9 mm +187%

Sensitivity83.4 dB −8.7

FaitalPRO6FE400

£37.20

Fs100 Hz +11%

Qts0.36 −8%

Vas5 L −16%

BL10.5 T·m +6%

Xmax4.8 mm +26%

Sensitivity93 dB +0.9

CIARECME160

£40.47

Fs110 Hz +22%

Qts0.40 –

Vas4.5 L −24%

BL7.6 T·m −23%

Xmax3.5 mm −8%

Sensitivity93.3 dB +1.2

Beyma6CMV2

£40.92

Fs90 Hz –

Qts0.34 −13%

Vas6.5 L +10%

BL9.4 T·m −5%

Xmax5.7 mm +50%

Sensitivity92.3 dB –

FaitalPRO6FE300

£44.29

Fs100 Hz +11%

Qts0.46 +18%

Vas4.7 L −21%

BL10 T·m –

Xmax3.9 mm –

Sensitivity91.9 dB –

CelestionTFX0615

£58.53

Fs97 Hz +8%

Qts0.38 −4%

Vas7.2 L +21%

BL9.8 T·m –

Xmax5.3 mm +38%

Sensitivity93.8 dB +1.7

LavoceWAF061.80

£63.58

Fs65 Hz −28%

Qts0.42 +8%

Vas7.3 L +23%

BL9.5 T·m −4%

Xmax4.9 mm +29%

Sensitivity88.6 dB −3.5

FaitalPRO6PR122

£84.13

Fs110 Hz +22%

Qts0.39 –

Vas4.7 L −21%

BL10.5 T·m +6%

Xmax2.8 mm −28%

Sensitivity93.6 dB +1.5

B&C6PEV13

£86.62

Fs126 Hz +40%

Qts0.36 −8%

Vas6 L –

BL8.2 T·m −17%

Xmax2.5 mm −34%

Sensitivity96.9 dB +4.8

Beyma6G40ND

£96.25

Fs100 Hz +11%

Qts0.38 –

Vas3.7 L −37%

BL10.6 T·m +7%

Xmax3 mm −21%

Sensitivity91.2 dB −0.9

B&C6NDL38

£98.00

Fs72 Hz −20%

Qts0.42 +8%

Vas7 L +18%

BL9.5 T·m −4%

Xmax6 mm +58%

Sensitivity89.8 dB −2.3

Eighteen Sound6NMB420

£115.20

Fs110 Hz +22%

Qts0.33 −15%

Vas6.1 L +3%

BL9 T·m −9%

Xmax3 mm −21%

Sensitivity95.3 dB +3.2

CIARECMI160ND

£129.04

Fs73 Hz −19%

Qts0.41 +5%

Vas6 L –

BL7.8 T·m −21%

Xmax4.5 mm +18%

Sensitivity89.2 dB −2.9

B&C6FHX51

£129.07

Fs85 Hz −6%

Qts0.37 −5%

Vas5 L −16%

BL11.3 T·m +14%

Xmax5.7 mm +50%

Sensitivity90.9 dB −1.2

PRV Audio6MR500-NDY-4

£136.44

Fs100 Hz +11%

Qts0.43 +10%

Vas5.1 L −13%

BL8.8 T·m −11%

Xmax4.4 mm +16%

Sensitivity92.4 dB –

FaitalPRO6HX150

£155.14

Fs88 Hz –

Qts0.34 −13%

Vas6.3 L +6%

BL12 T·m +21%

Xmax4.3 mm +14%

Sensitivity92.9 dB +0.8

B&C6HCX51

£175.82

Fs89 Hz –

Qts0.38 –

Vas5 L −16%

BL10.9 T·m +10%

Xmax5.5 mm +45%

Sensitivity91.5 dB −0.6

HiViD5.8B

No current price

Fs52 Hz −42%

Qts0.37 −5%

Vas5.6 L −5%

BL9 T·m −9%

Xmax4.8 mm +26%

Sensitivity84.8 dB −7.3

HiViD6.8MKII

No current price

Fs54 Hz −40%

Qts0.40 –

Vas8.9 L +50%

BL9.8 T·m –

Xmax3.5 mm −8%

Sensitivity86.6 dB −5.5

HiViD6.8+

No current price

Fs44 Hz −51%

Qts0.36 −8%

Vas14.4 L +143%

BL9.0 T·m −9%

Xmax4 mm +5%

Sensitivity86.7 dB −5.4

Oberton6M150

No current price

Fs115 Hz +28%

Qts0.42 +8%

Vas5.3 L −10%

BL10.0 T·m –

Xmax2.3 mm −41%

Sensitivity94.5 dB +2.4

Oberton6NCX

No current price

Fs89 Hz –

Qts0.36 −7%

Vas7.0 L +18%

BL9 T·m −9%

Xmax4.8 mm +25%

Sensitivity93.1 dB +1

REDCATT61NPM

No current price

Fs92 Hz –

Qts0.36 −8%

Vas7 L +18%

BL9.8 T·m –

Xmax2.3 mm −39%

Sensitivity93.6 dB +1.5

HiViD6.4MKII

No current price

Fs53 Hz −41%

Qts0.35 −10%

Vas8.5 L +44%

BL7.8 T·m −21%

Xmax3.5 mm −8%

Sensitivity86.9 dB −5.2

Sica6 N 2 PL

No current price

Fs68 Hz −24%

Qts0.33 −15%

Vas8.7 L +47%

BL9.5 T·m −4%

Xmax3.5 mm −8%

Sensitivity90.8 dB −1.3

WavecorWF152BD07

No current price

Fs52 Hz −43%

Qts0.39 –

Vas9.2 L +55%

BL8 T·m −19%

Xmax4.5 mm +18%

Sensitivity86.9 dB −5.2

WavecorWF152BD15

No current price

Fs52 Hz −43%

Qts0.39 –

Vas9.2 L +55%

BL8 T·m −19%

Xmax4.5 mm +18%

Sensitivity86.9 dB −5.2

HiViD6G

No current price

Fs44 Hz −51%

Qts0.38 –

Vas12.1 L +104%

BL9.5 T·m −4%

Xmax4.8 mm +26%

Sensitivity85.8 dB −6.3

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax
