LF Driver6M series
Oberton
Oberton 6M150
Oberton 6M150 is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 115Hz, Qts 0.42, Vas 5.3L, Xmax 2.3mm, sensitivity 94.5dB, plus 31cm³ Vd and 252 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.5dB
500.0dBmanufacturer; using T/S-derived value (405.5dB delta).
EBP
252
Vented alignment
Vd
31cm³
T/S Parameters
Valid
Fs115Hz
Qts0.42
Qes0.46
Qms5.5
Vas5.3L
Re6.2Ω
Le0.44mH
BL10.0Tm
Sd139cm²
Mms10g
Xmax2.3mm
SPL95dB
Power150W
Impedance8Ω
Min Impedance7.0Ω
F Low200Hz
F High5000Hz
Voice Coil44mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

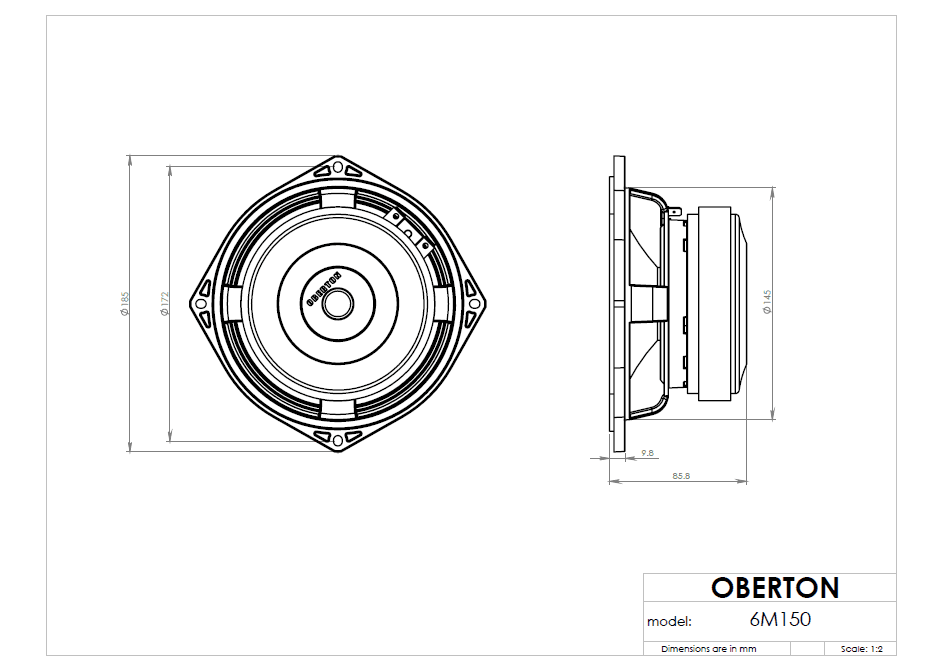

Dimensions & Physical
Weight2.5kg
Diameter185.0mm
Overall Depth85.8mm
Cutout Diameter145.0mm
Bolt Circle Diameter172.0mm
