LF DriverSP series
Monacor

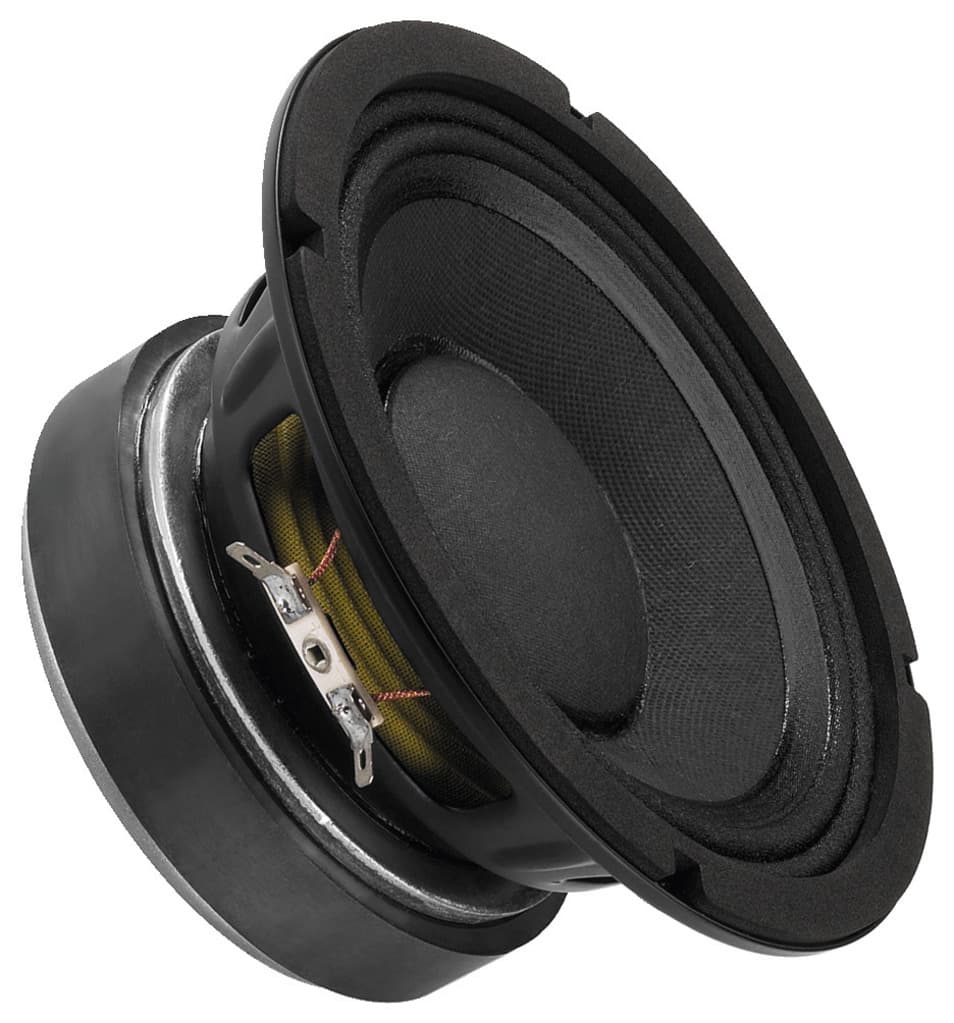

Monacor SP-6/150PA
Monacor SP-6/150PA is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 73Hz, Qts 0.42, Vas 8.5L, Xmax 1mm, sensitivity 90.6dB, plus 14cm³ Vd and 159 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
90.6dB
93.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
159
Vented alignment
Vd
14cm³
T/S Parameters
Valid
Fs73Hz
Qts0.42
Qes0.46
Qms5.3
Vas8.5L
Re6.5Ω
Le0.60mH
BL9.9Tm
Sd139cm²
Mms15g
Xmax1.0mm
SPL91dB
Power150W
Impedance8Ω
F Low3Hz
F High6000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

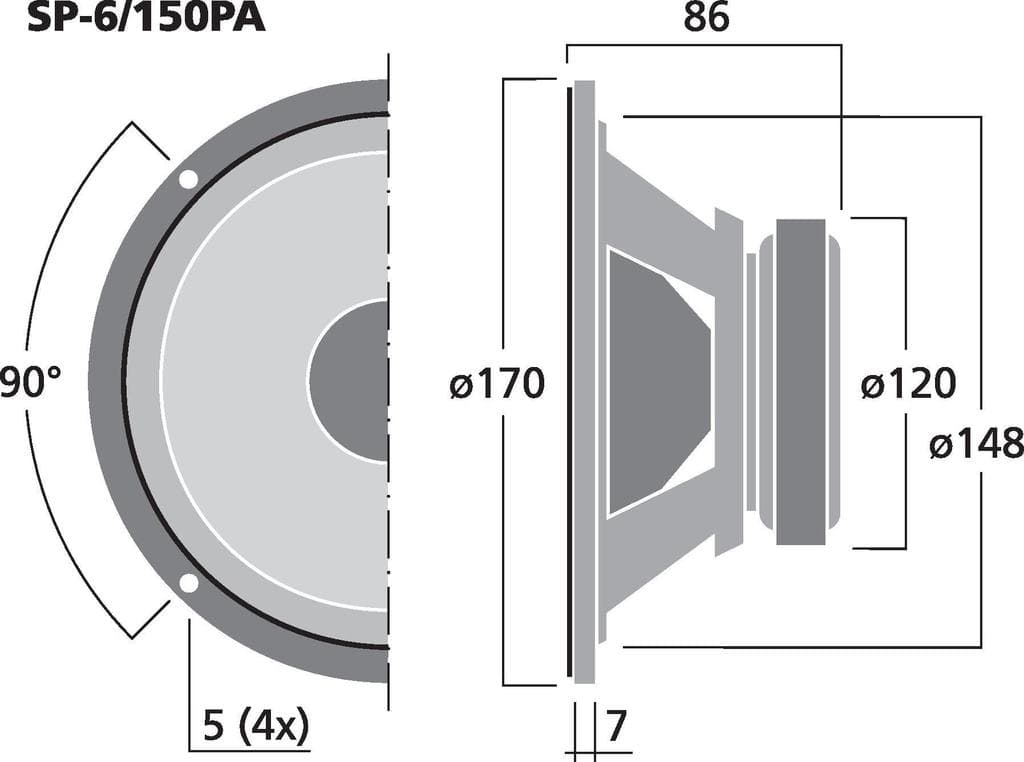

Dimensions & Physical
Weight2.2kg
Diameter170.0mm
Overall Depth86.0mm
Cutout Diameter148.0mm
