Wavecor SW168WA01 4Ω
LF DriverMedia
Wavecor
SW168WA01
Image unavailable
Overview
LF DriverSW168WA series
Wavecor
Wavecor SW168WA01
Wavecor SW168WA01 is a 6.5" 4 ohm LF driver. The validated T/S data includes Fs 43Hz, Qts 0.45, Vas 9.6L, Xmax 7mm, sensitivity 84.1dB, plus 89cm³ Vd and 91 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
Sensitivity
84.1dB
EBP
91
Either alignment
Vd
89cm³
T/S Parameters
Valid
Fs43Hz
Qts0.45
Qes0.47
Qms10.2
Vas9.6L
Re3.0Ω
BL7.5Tm
Sd127cm²
Mms33g
Xmax7.0mm
SPL84dB
Impedance4Ω
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter165.1mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW168WA01
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
79%
Similarity
Wavecor
SW182BD03
7"
Xmax7mm0%
Qts0.44-2%
BL7.6Tm+1%
Vas12.7L+32%
Qes0.45-4%
74%
Similarity
Peerless
FSL-0615R01-08
6.5"
Xmax6mm-14%
Qts0.450%
BL8.5Tm+13%
Vas6.7L-30%
Qes0.51+8%
72%
Similarity
Peerless
HDS-P830990
6.5"
Xmax7.3mm+5%
Qts0.43-4%
BL8.6Tm+15%
Vas13.5L+41%
Qes0.52+10%
68%
Similarity
£98.16
B&C
6NDL38
6.5"
Xmax6mm-14%
Qts0.39-13%
BL7.8Tm+4%
Vas7.1L-26%
Qes0.4-15%
67%
Similarity
£52.62

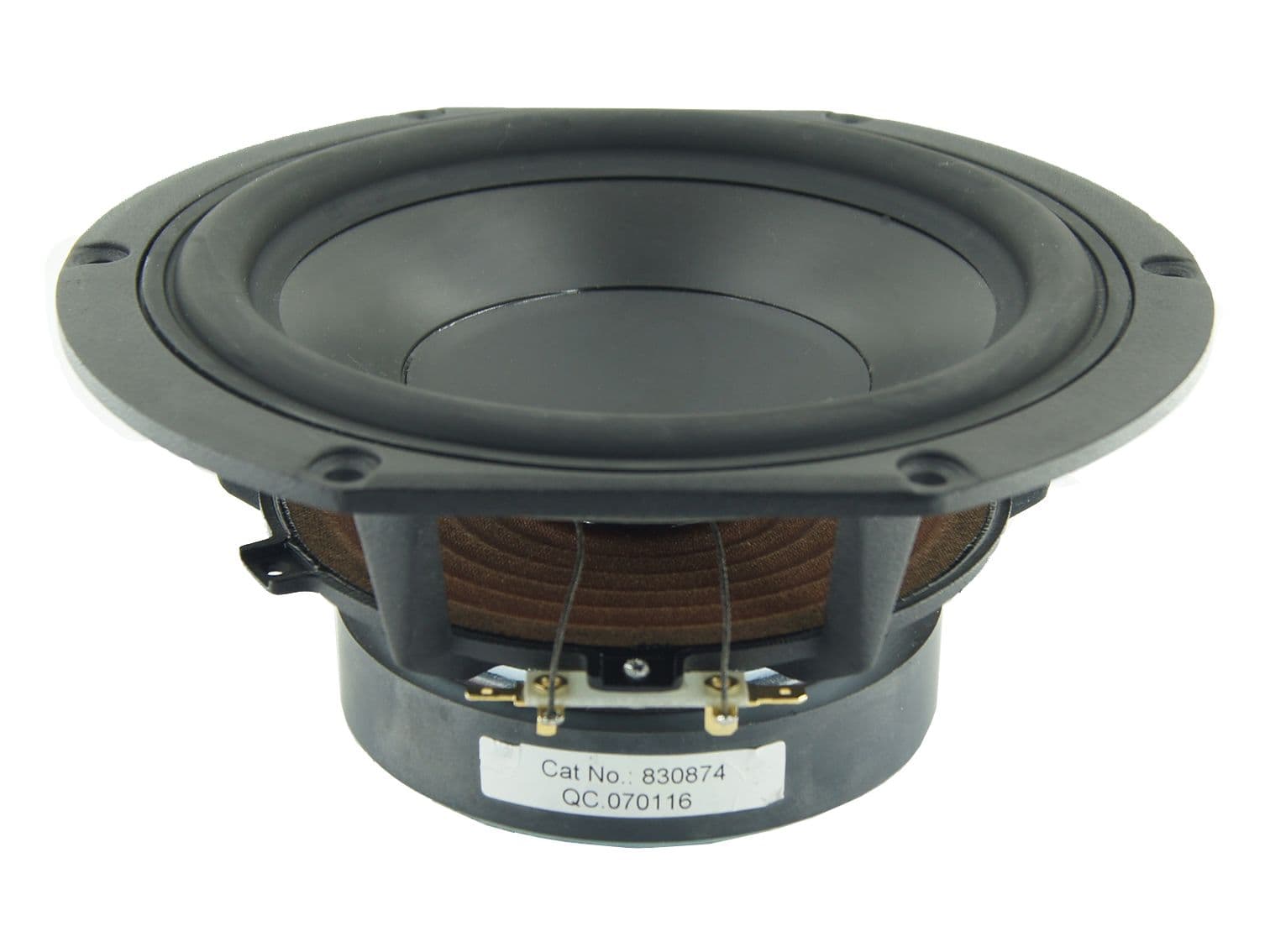

Peerless
HDS-P830874
6.5"
Xmax7.3mm+5%
Qts0.51+13%
BL8.7Tm+16%
Vas10.6L+10%
Qes0.59+27%
65%
Similarity
Accuton
C168-6-890
6.5"
Xmax5mm-29%
Qts0.44-2%
BL7.5Tm0%
Vas15L+56%
Qes0.49+4%
65%
Similarity
£98.16
B&C
6NDL38
6.5"
Xmax6mm-14%
Qts0.42-7%
BL9.5Tm+27%
Vas7L-27%
Qes0.44-6%
60%
Similarity
HiVi
D6.8B
6.75"
Xmax5.3mm-24%
Qts0.450%
BL8.9Tm+19%
Vas13.5L+41%
Qes0.49+4%
58%
Similarity
GRS
6SMP-8
6.5"
Xmax5mm-29%
Qts0.450%
BL8.4Tm+12%
Vas14.5L+51%
Qes0.54+15%
58%
Similarity
£110.95
Fountek
FW168K
6.5"
Xmax5mm-29%
Qts0.43-5%
BL7.9Tm+5%
Vas15.1L+57%
Qes0.52+11%
57%
Similarity
£42.07
Lavoce
WAF061.80
6.5"
Xmax4.9mm-30%
Qts0.42-7%
BL9.5Tm+26%
Vas7.3L-24%
Qes0.44-6%
52%
Similarity
HiVi
C6.5
6.5"
Xmax4.9mm-30%
Qts0.38-16%
BL9.1Tm+21%
Vas13.3L+39%
Qes0.470%
