6.5-inch LF driver · HDS series · 30 W

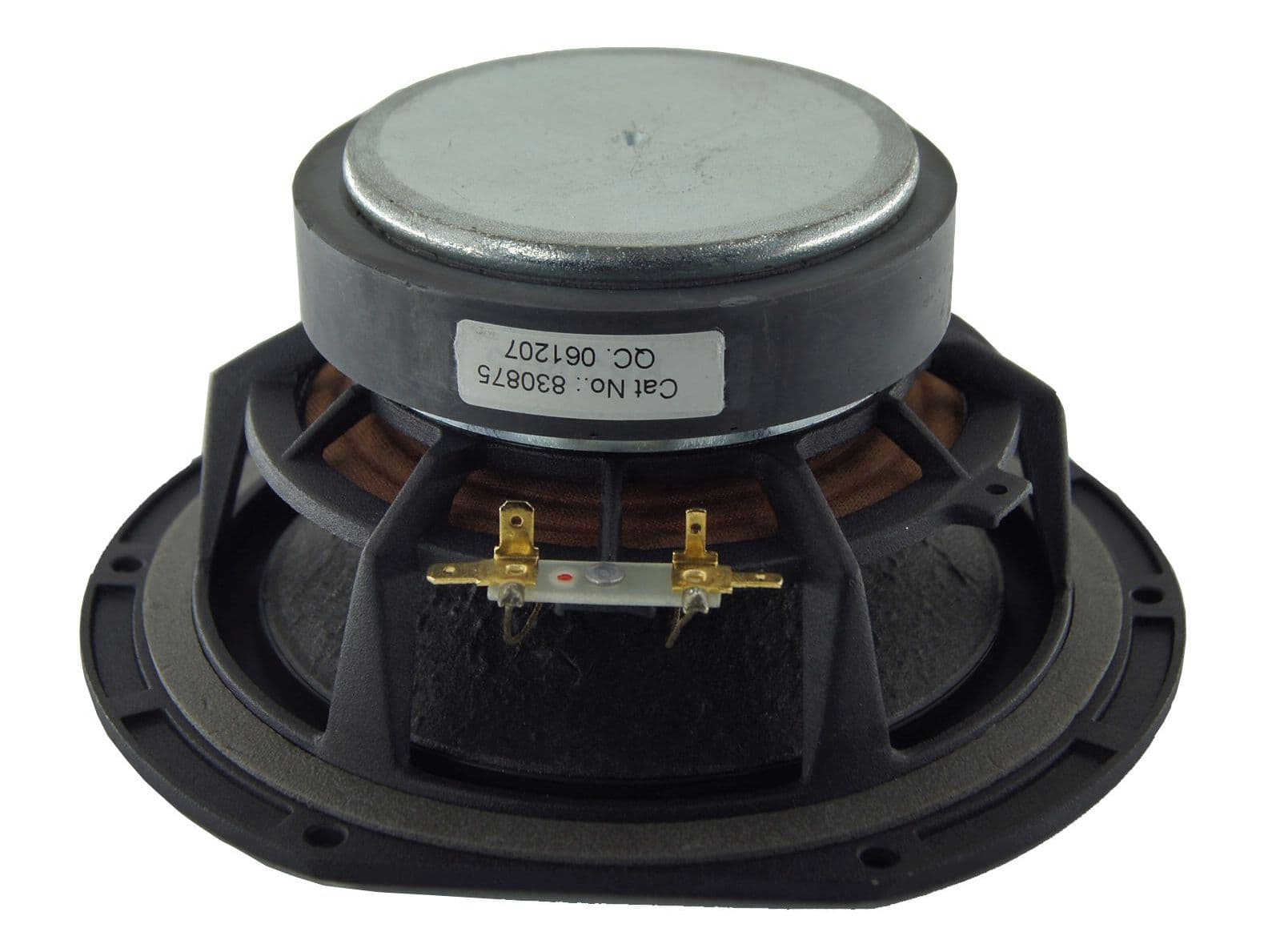

Peerless HDS-P830875 8Ω

Name: Peerless HDS-P830875 8 Ohm
Brand: Peerless
SKU: HDS-P830875
Availability: InStock

8 Ω

20 ratings at 2 shops

£56.87

Steady

Blue Aran · 10 in stock · All 3 offers

Open in 00 Simulator

Fs: 48Hz
Xmax: 7.3mm
SPL: 89dB
Pe: 30W
BL: 8.7T·m
Vd: 105cm³
Qts: 0.39
Vas: 19L

See all 19 specs

Specifications

Published by Peerless

Manufacturer page

Datasheet PDF

Peerless HDS-P830875 is a 6.5-inch 8 ohm LF driver rated at 30 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.39, Vas 18.6 L, Xmax 7.3 mm, sensitivity 88.7 dB, plus 105 cm³ Vd and 108 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £37.40.

The published T/S values agree with each other

Thiele/Small

Fs: 48Hz
Qts: 0.39
Qes: 0.45
Qms: 3.4
Vas: 18.6L
Re: 6.5Ω
Le: 0.46mH

Motor and cone

BL: 8.7T·m
Sd: 143cm²
Mms: 17g
Xmax: 7.3mm
Vd †: 105cm³

Power and response

Sensitivity †: 88.7dB
Manufacturer sensitivity: 88.3dB
Power: 30W
Impedance: 8Ω
EBP †: 108 · Leans vented

Size and mounting

Weight: 1.6kg

Other published values

Cms: 0.64mm/N

† Calculated by bits from the published values

What this validation status means

Everything else Peerless lists

LF · Primary · 6.496062992125984″

BL: 8.7T·m
Fs: 48Hz
Le: 0.46mH
Re: 6.5Ω
Sd: 143cm²
Cms: 0.64mm/N
Mms: 17g
Qes: 0.45
Qms: 3.4
Qts: 0.39
SPL: 88.7dB
Vas: 18.6L
Xmax: 7.3mm
Power: 30W
Impedance: 8Ω
Sensitivity: 88.3dB
Calculated sensitivity †: 88.7dB
Manufacturer sensitivity: 88.3dB
Weight: 1.6kg

Compare

Same-size drivers, compared with the HDS-P830875. Clear differences are green when better and red when worse.

This driverHDS-P830875

Best price

£37.40

48 Hz

Qts

0.39

Vas

18.6 L

8.7 T·m

Xmax

7.3 mm

Sensitivity

88.7 dB

Power

30 W

HiViM6N

£21.14 · 43% less

Fs46 Hz −4%

Qts0.39 –

Vas21.9 L +18%

BL7.8 T·m −10%

Xmax4.3 mm −41%

Sensitivity89.1 dB –

PeerlessHDS-P835025

£37.40 · Same price

Fs43 Hz −10%

Qts0.42 +8%

Vas19 L –

BL8.6 T·m –

Xmax7.4 mm –

Sensitivity87.1 dB −1.6

CIAREHW161N

£43.93 · 17% more

Fs47 Hz –

Qts0.37 −5%

Vas19.9 L +7%

BL7.4 T·m −14%

Xmax5 mm −32%

Sensitivity88.6 dB –

HiViC6.5

£52.87 · 41% more

Fs53 Hz +10%

Qts0.38 –

Vas13.3 L −28%

BL9.1 T·m +5%

Xmax4.9 mm −33%

Sensitivity88.3 dB –

Sica6 H 1.5 CP

£55.67 · 49% more

Fs46 Hz −4%

Qts0.35 −10%

Vas16.6 L −11%

BL8.4 T·m −3%

Xmax6 mm −18%

Sensitivity88.3 dB –

Sica6.5 H 1.5 CP

£56.52 · 51% more

Fs45 Hz −5%

Qts0.42 +8%

Vas20.2 L +9%

BL7.0 T·m −19%

Xmax6 mm −18%

Sensitivity88.2 dB −0.5

PeerlessHDS-P830990

£59.09 · 58% more

Fs56 Hz +17%

Qts0.43 +10%

Vas13.5 L −27%

BL8.6 T·m –

Xmax7.3 mm –

Sensitivity88.7 dB –

Dayton AudioRS180P-8

£60.43 · 62% more

Fs46 Hz −5%

Qts0.34 −13%

Vas22 L +18%

BL7.2 T·m −17%

Xmax6 mm −18%

Sensitivity88.8 dB –

CIAREHW172

£63.36 · 69% more

Fs46 Hz −4%

Qts0.37 −5%

Vas20 L +8%

BL7.6 T·m −12%

Xmax4.5 mm −39%

Sensitivity88.4 dB –

Tang BandW6-1139SIF

£97.15 · 160% more

Fs35 Hz −27%

Qts0.40 –

Vas11.8 L −37%

BL8.5 T·m –

Xmax11.5 mm +57%

Sensitivity82.3 dB −6.4

SEASH1571-08 U18RNX/P

£126.74 · 239% more

Fs43 Hz −10%

Qts0.37 −5%

Vas22 L +18%

BL6.9 T·m −20%

Xmax6 mm −18%

Sensitivity87.9 dB −0.8

RS SpeakersMW 174.38 FIBONACCI

£147.00 · 293% more

Fs46 Hz −5%

Qts0.39 –

Vas18.7 L –

BL7.0 T·m −19%

Xmax4.5 mm −39%

Sensitivity88.3 dB –

Scanspeak15W/8531K00

£150.70 · 303% more

Fs39 Hz −19%

Qts0.38 –

Vas16.7 L −10%

BL6.6 T·m −24%

Xmax6.5 mm −11%

Sensitivity85.8 dB −2.9

Scanspeak15W/8530K00

£157.03 · 320% more

Fs39 Hz −19%

Qts0.39 –

Vas16 L −14%

BL6.6 T·m −24%

Xmax6.5 mm −11%

Sensitivity85.5 dB −3.2

WavecorSW182BD03

£162.63 · 335% more

Fs35 Hz −27%

Qts0.44 +13%

Vas12.7 L −32%

BL7.6 T·m −12%

Xmax7 mm −5%

Sensitivity82.9 dB −5.8

SEASE0042-08S W18NX001

£253.40 · 578% more

Fs40 Hz −17%

Qts0.34 −13%

Vas24 L +29%

BL7 T·m −19%

Xmax7 mm −5%

Sensitivity87.8 dB −0.9

PurifiPTT6.5X08-NAA-08

£397.02 · 962% more

Fs34 Hz −29%

Qts0.40 –

Vas20.4 L +10%

BL9 T·m +4%

Xmax9.8 mm +34%

Sensitivity84.8 dB −3.9

SEASE0117-08 W19NX004

£506.84 · 1255% more

Fs33 Hz −31%

Qts0.39 –

Vas33 L +77%

BL7.9 T·m −9%

Xmax7 mm −5%

Sensitivity86.5 dB −2.2

SEASE0076-08 W19NX001

£591.32 · 1481% more

Fs34 Hz −29%

Qts0.41 +5%

Vas24 L +29%

BL8.3 T·m −4%

Xmax7 mm −5%

Sensitivity85.2 dB −3.5

CelestionNTR06-1705D

No current price

Fs49 Hz –

Qts0.38 −3%

Vas21.4 L +15%

BL8.2 T·m −6%

Xmax6 mm −18%

Sensitivity90 dB +1.3

HiViSS6.5R

No current price

Fs42 Hz −13%

Qts0.39 –

Vas21.6 L +16%

BL6.5 T·m −25%

Xmax5.8 mm −21%

Sensitivity87.7 dB −1

WavecorWF182BD11

No current price

Fs34 Hz −29%

Qts0.42 +8%

Vas24.3 L +31%

BL8.2 T·m −5%

Xmax5.5 mm −25%

Sensitivity85.4 dB −3.3

WavecorWF182BD19

No current price

Fs34 Hz −29%

Qts0.42 +8%

Vas24.3 L +31%

BL8.2 T·m −5%

Xmax5.5 mm −25%

Sensitivity85.4 dB −3.3

Tang BandW6-1139SI

No current price

Fs38 Hz −21%

Qts0.40 –

Vas11.8 L −37%

BL8.7 T·m –

Xmax13 mm +77%

Sensitivity83.4 dB −5.3

Sica6.5 C 1.5 CP

No current price

Fs51 Hz +6%

Qts0.39 –

Vas15.9 L −15%

BL7.2 T·m −17%

Xmax4.5 mm −39%

Sensitivity89 dB –

KartesianWOM180_VMS

No current price

Fs46 Hz −4%

Qts0.38 –

Vas21.8 L +17%

BL8.1 T·m −6%

Xmax8 mm +9%

Sensitivity90 dB +1.3

RS SpeakersW 174.38 FIBONACCI

No current price

Fs38 Hz −22%

Qts0.38 –

Vas22.9 L +23%

BL7.2 T·m −16%

Xmax6 mm −18%

Sensitivity87 dB −1.7

HiViS6.5

No current price

Fs47 Hz –

Qts0.42 +8%

Vas18.4 L –

BL6.4 T·m −26%

Xmax5.8 mm −21%

Sensitivity88.1 dB −0.6

HiViF6N

No current price

Fs48 Hz –

Qts0.43 +10%

Vas19.1 L –

BL7.3 T·m −16%

Xmax4.5 mm −39%

Sensitivity88.7 dB –

HiViD6.8+

No current price

Fs44 Hz −8%

Qts0.36 −8%

Vas14.4 L −23%

BL9.0 T·m +4%

Xmax4 mm −46%

Sensitivity86.7 dB −2

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Reviews

How reviews work

4.4 out of 5

from 20 ratings at 2 shops

Parts Express4.3 out of 515 ratings · Checked 13 Oct 2026
Read reviews on Parts Express
SoundImports4.8 out of 55 ratings · Checked 13 Oct 2026
Read reviews on SoundImports

Each shop collects its own ratings. Bits shows them as published and doesn't verify them.

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

Shop	Price	Against the lowest	Stock	Link
Blue Aran Checked 13 Oct 2026 · Source: inc VAT · 20%	£56.87, the lowest price		10 in stock	Visit shop at Blue Aran
Parts Express Checked 13 Oct 2026 · Ships from United States · Source: ex VAT Import VAT and duty may apply	£37.40		2 in stock	Visit shop at Parts Express
SoundImports Checked 13 Oct 2026 · Ships from Netherlands · Source: inc VAT Import VAT and duty may apply	£59.09	3.9% above the lowest price	131 in stock	Visit shop at SoundImports

Best price over time

Tracked since 1 Apr
