LF Driver
Tang Band

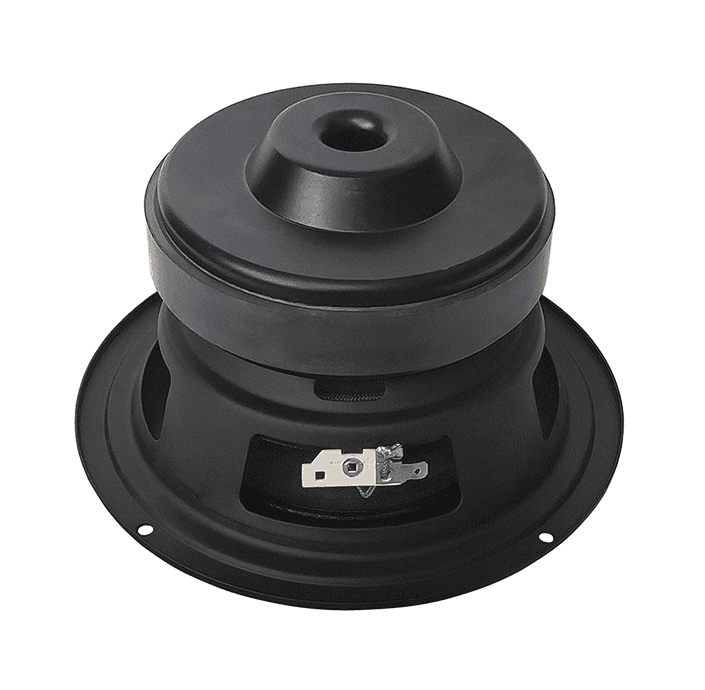

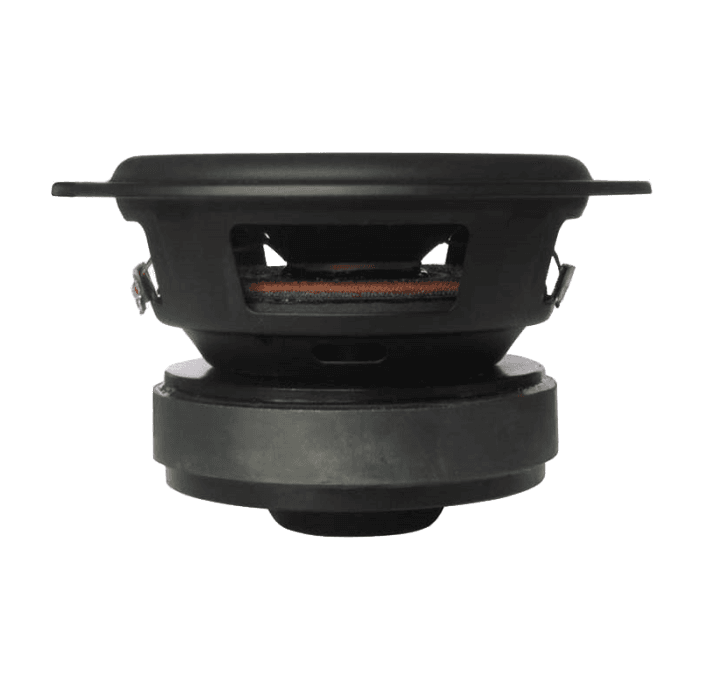

Tang Band W6-1139SIF
Tang Band W6-1139SIF is a 6" 4 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 35Hz, Qts 0.40, Vas 11.8L, Xmax 11.5mm, sensitivity 82.3dB, plus 161cm³ Vd and 74 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
RMS Power
50W
Sensitivity
82.3dB
EBP
74
Either alignment
Vd
161cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,496 selected pixels of 1,841 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,350 selected pixels of 2,351
T/S Parameters
Valid
Fs35Hz
Qts0.40
Qes0.47
Qms2.6
Vas11.8L
Re3.6Ω
Le0.47mH
BL8.5Tm
Sd140cm²
Mms40g
Xmax11.5mm
SPL82dB
Power50W
Impedance4Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
