- Fs
- 50Hz
- Xmax
- 4mm
- SPL
- 88dB
- Pe
- 45W
- BL
- 7.1T·m
- Vd
- 56cm³
- Qts
- 0.40
- Vas
- 13L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
spl
Frequency response
235 plotted pointsSource file SHA-256 17222f1f7149…Medium confidence768 selected pixels of 2,223 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 17222f1f7149…Medium confidence3,395 selected pixels of 4,256

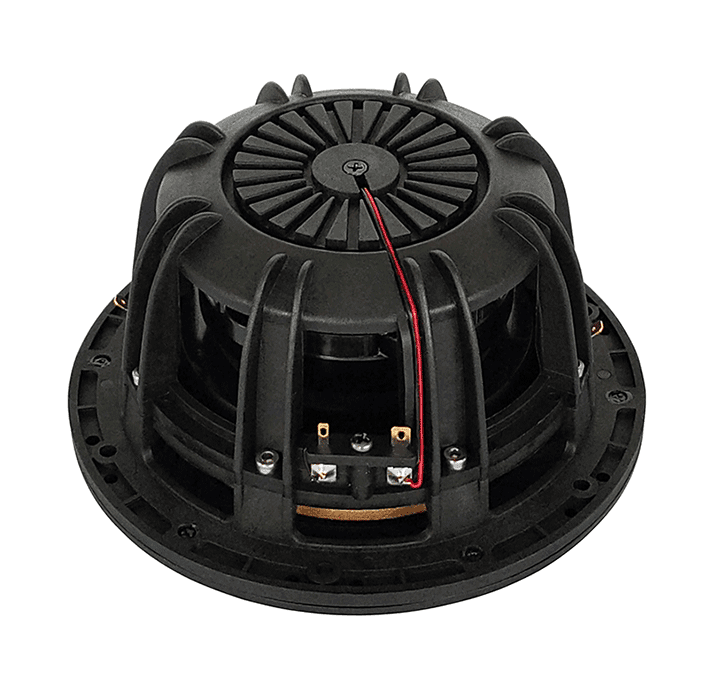

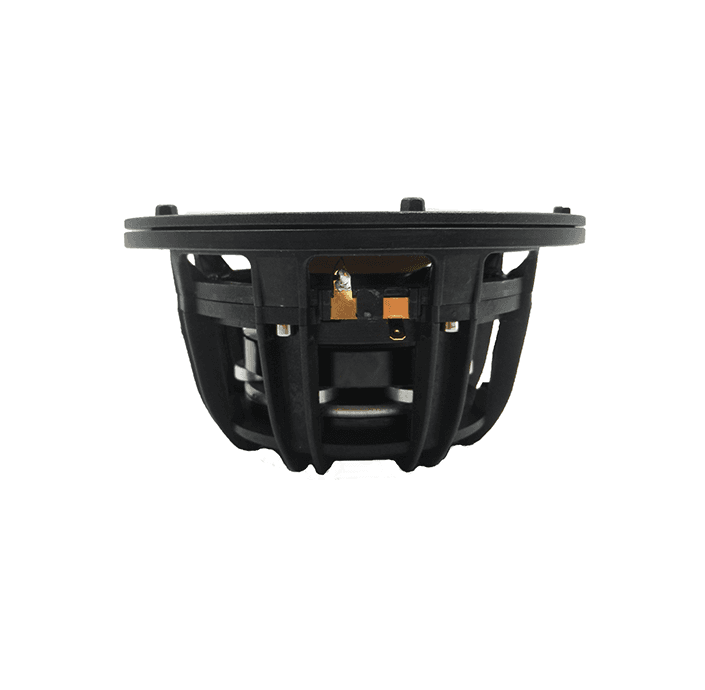

Tang Band W6-2313 is a 6-inch 4 ohm LF driver rated at 45 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.40, Vas 13.3 L, Xmax 4 mm, sensitivity 87.8 dB, plus 56 cm³ Vd and 114 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.40
- Qes
- 0.44
- Qms
- 4.7
- Vas
- 13.3L
- Re
- 3.6Ω
- Le
- 0.02mH
Motor and cone
- BL
- 7.1T·m
- Sd
- 140cm²
- Mms
- 18g
- Xmax
- 4mm
- Vd †
- 56cm³
Power and response
- Sensitivity †
- 87.8dB
- Manufacturer sensitivity
- 88dB
- Power
- 45W
- Impedance
- 4Ω
- EBP †
- 114 · Leans vented
Other published values
- Power Peak
- 90
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 6″
- BL
- 7.1T·m
- Fs
- 50Hz
- Le
- 0.02mH
- Re
- 3.6Ω
- Sd
- 140cm²
- Mms
- 18g
- Qes
- 0.44
- Qms
- 4.7
- Qts
- 0.40
- SPL
- 87.8dB
- Vas
- 13.3L
- Xmax
- 4mm
- Power
- 45W
- Impedance
- 4Ω
- Power Peak
- 90
- Sensitivity
- 88dB
- Calculated sensitivity †
- 87.8dB
- Manufacturer sensitivity
- 88dB
