Overview
LF DriverExcel series
SEAS
SEAS E0037-08S W15CH001
SEAS E0037-08S W15CH001 is a 15" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 38Hz, Qts 0.42, Vas 14L, Xmax 4mm, sensitivity 83.9dB, plus 30cm³ Vd and 76 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
70W
Sensitivity
83.9dB
85.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
76
Either alignment
Vd
30cm³

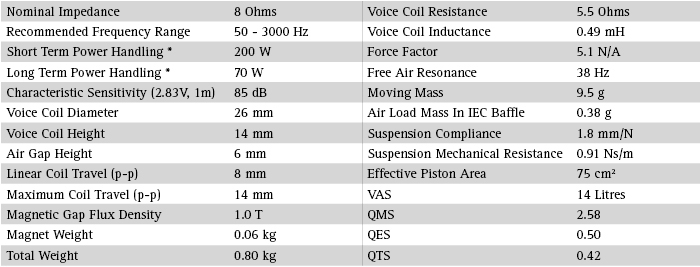

T/S Parameters
Valid
Fs38Hz
Qts0.42
Qes0.50
Qms2.6
Vas14.0L
Re5.5Ω
Le0.49mH
BL5.1Tm
Sd75cm²
Mms10g
Xmax4.0mm
SPL84dB
Power70W
Impedance8Ω
F Low50Hz
F High3000Hz
Voice Coil26mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

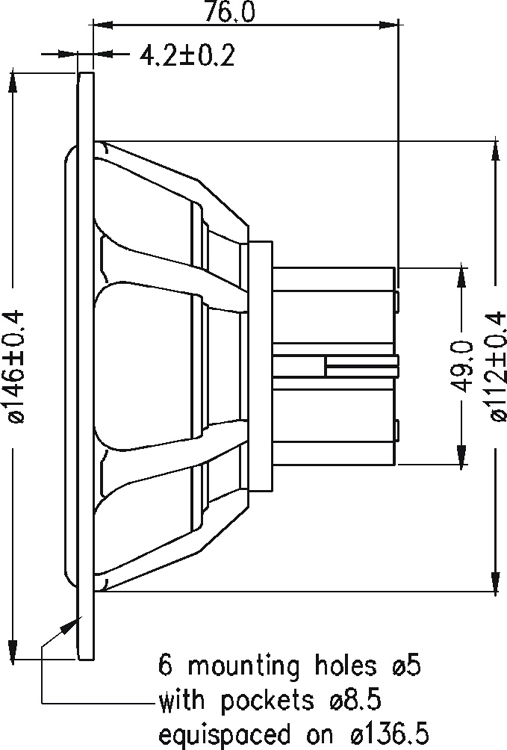

Dimensions & Physical
Weight0.8kg
